Stainless Steel Wire Mesh

  • Stainless Steel Double Crimp Wire Mesh
  • Stainless Steel Double Crimp Wire Mesh
  • Stainless Steel Double Crimp Wire Mesh
  • Stainless Steel Double Crimp Wire Mesh
  • Stainless Steel Double Crimp Wire Mesh
Stainless Steel Double Crimp Wire MeshStainless Steel Double Crimp Wire MeshStainless Steel Double Crimp Wire MeshStainless Steel Double Crimp Wire MeshStainless Steel Double Crimp Wire Mesh

Stainless Steel Double Crimp Wire Mesh

  • Material:SS304,SS304L,SS316,SS316L,and other SS alloy.
  • Wire Gauge : 0.8mm to 16mm size: 1mm to 100mm
  • Weave Type: Single intermediate crimp screen, double intermediate crimp screen, lock crimp screen, flat top screen, pressure welded screen.
  • Hole type: square, rectangle and long slot special size can be customized according to your requirements
  • Product description: Stainless steel mesh screen can be widely used in sand,rock,coal,gavel,metal material screening ,quarry aggregate,mining industries and so on.
  • INQUIRY

* Features: heat resistance, acid resistance, alkali resistance, corrosion resistance, wear resistance, wide structure solid

* Property:Beautiful outlook,firm and durable construction, uniform mesh, fine rust-resisting.

* Packing:In rolls, wrapped with waterproof paper then covered with hessian-cloth. Special packing may be arranged if necessary.
* Uses:Stainless Steel Double Crimp Screen is extensively applied in screening in mine, coal factory, construction and other industries.

* Applications Showing:
Stainless steel mesh screen can be widely used in sand,rock,coal,gavel,metal material screening ,quarry aggregate,mining industries ,road construction industries,asphalt mixing plant and so on.

Special sizes can be customized according to your requirements

Weaving Types

Double crimp screen Double Crimp Vibrating Screens Crimp Screen double crimped wire mesh Double Crimp Woven Screen Double intermediate crimp screendouble crimped screen mesh Double Crimp Screenchina double crimp screen

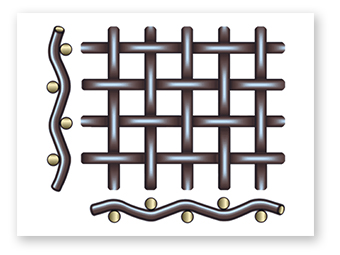

Double Crimp Wire Mesh


Double Crimp Screens are produced by weaving previously crimped wires into one another. The mesh width and wire diameter determine the number of crimps within a mesh width. In some cases it is possible to produce grids with identical mesh width and differing numbers of crimps. The number of crimps set by us guarantees the highest possible mesh stability.


Specification

Mesh Wire Gauge Aperture Percentage of
Opening (%)
inch mm inch mm
2" 0.116 2.94 1.884 47.86 88.76
2" 0.135 3.42 1.865 47.38 86.99
2" 0.159 4.04 1.841 46.76 84.73
2" 0.212 5.38 1.788 45.42 79.94
1 1/2" 0.104 2.64 1.396 35.46 86.62
1 1/2" 0.135 3.42 1.365 34.68 82.85
1 1/2" 0.159 4.04 1.341 34.06 79.92
1×1 0.080 2.03 0.920 23.37 84.65
1×1 0.116 2.94 0.884 22.46 78.19
1×1 0.135 3.42 0.865 21.98 74.88
2×2 0.047 1.19 0.453 11.51 82.14
2×2 0.072 1.83 0.428 10.87 73.26
2×2 0.104 2.64 0.396 10.06 62.75
2×2 0.120 3.05 0.380 9.65 57.74
3×3 0.054 1.37 0.279 7.10 70.26
3×3 0.072 1.83 0.261 6.64 61.44
3×3 0.080 2.03 0.253 6.44 57.80
4×4 0.028 0.71 0.222 5.64 78.89
4×4 0.047 1.19 0.203 5.16 66.03
4×4 0.063 1.60 0.187 4.75 55.96
4×4 0.080 2.03 0.170 4.32 46.28
5×5 0.035 0.89 0.165 4.19 68.03
5×5 0.047 1.19 0.153 3.89 58.64
5×5 0.063 1.60 0.137 3.48 46.93
6×6 0.035 0.89 0.132 3.34 62.37
6×6 0.041 1.04 0.126 3.19 56.90
6×6 0.047 1.19 0.120 3.04 51.68
6×6 0.063 1.60 0.104 2.63 38.69
8×8 0.017 0.43 0.108 2.75 74.75
8×8 0.028 0.71 0.097 2.47 60.28
8×8 0.035 0.89 0.090 2.29 51.79
8×8 0.047 1.19 0.078 1.99 39.09
10×10 0.017 0.43 0.083 2.11 69.01
10×10 0.025 0.635 0.075 1.91 56.25
10×10 0.032 0.813 0.068 1.73 46.23
10×10 0.047 1.19 0.053 1.35 28.25
12×12 0.017 0.43 0.066 1.69 63.50
12×12 0.023 0.58 0.060 1.54 52.71
12×12 0.028 0.71 0.055 1.41 44.16
12×12 0.035 0.89 0.048 1.23 33.59
14×14 0.015 0.38 0.056 1.43 62.50
14×14 0.020 0.50 0.052 1.31 52.48
14×14 0.028 0.71 0.043 1.10 37.05
16×16 0.015 0.38 0.048 1.21 57.86
16×16 0.018 0.45 0.045 1.14 51.34
16×16 0.023 0.58 0.040 1.01 40.28
16×16 0.028 0.71 0.035 0.88 30.55
18×18 0.014 0.35 0.042 1.06 56.55
18×18 0.017 0.43 0.039 0.98 48.34
18×18 0.020 0.50 0.036 0.91 41.69
18×18 0.023 0.58 0.033 0.83 34.69
20×20 0.014 0.35 0.036 0.92 52.48
20×20 0.017 0.43 0.033 0.84 43.75
20×20 0.020 0.50 0.030 0.77 36.76
20×20 0.023 0.58 0.027 0.69 29.52

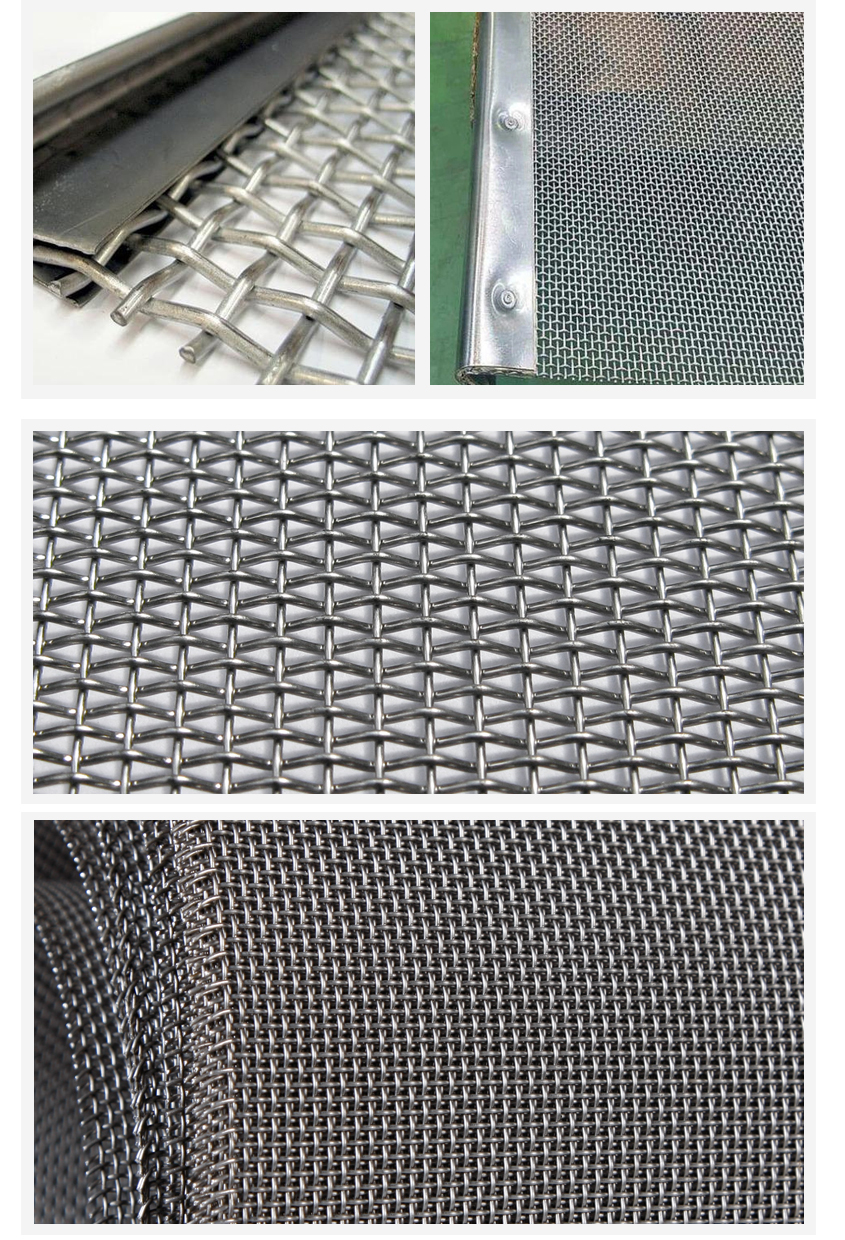

Product Detall

Double crimp screen Double Crimp Vibrating Screens Crimp Screen double crimped wire mesh Double Crimp Woven Screen Double intermediate crimp screendouble crimped screen mesh Double Crimp Screenchina double crimp screen

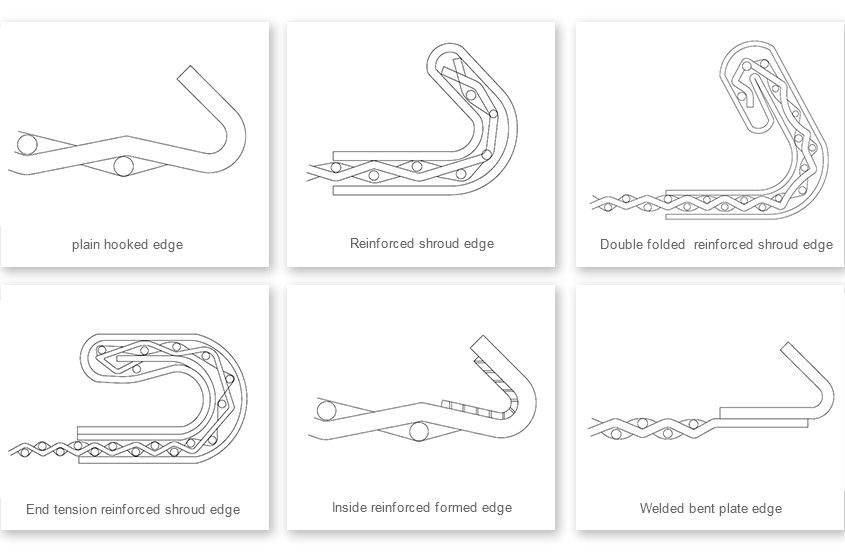

Edge Types

Double crimp screen Double Crimp Vibrating Screens Crimp Screen double crimped wire mesh Double Crimp Woven Screen Double intermediate crimp screendouble crimped screen mesh Double Crimp Screenchina double crimp screen

Why Choose Our Products?


Superior carbon steel and stainless steel wires

Strict production and quality control procedure

A wide range of sizes and patterns for your option

Easy installation and maintenance

Large stocks for urgent orders
Stainless Steel Double Crimp Wire Mesh
Large output and timely delivery
