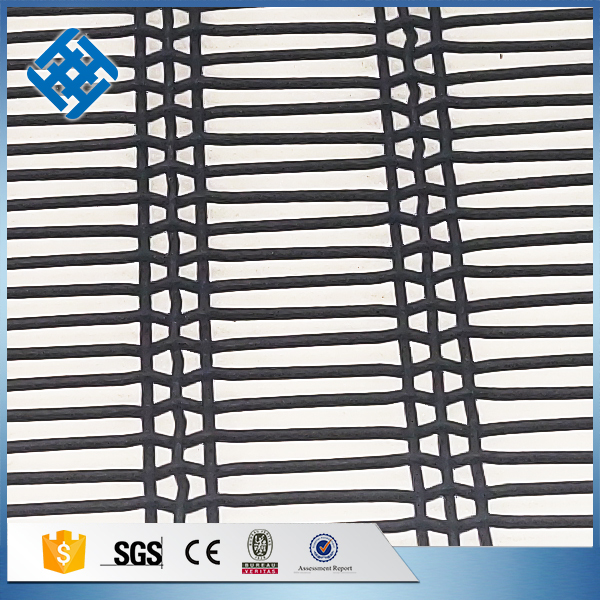

Anti-blocking Screen

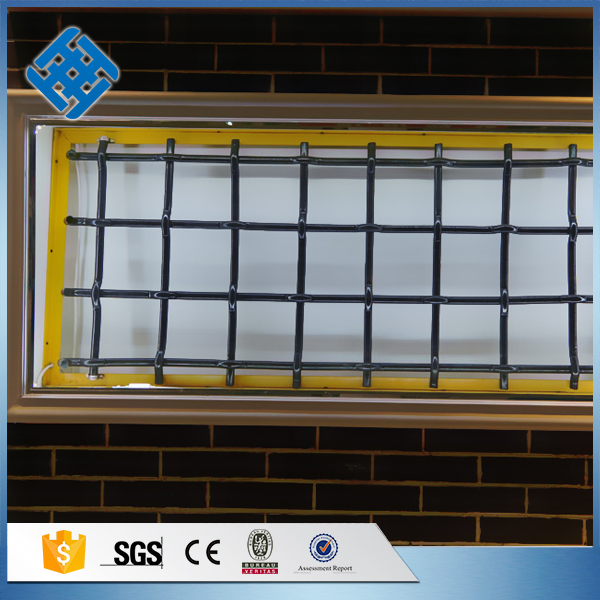

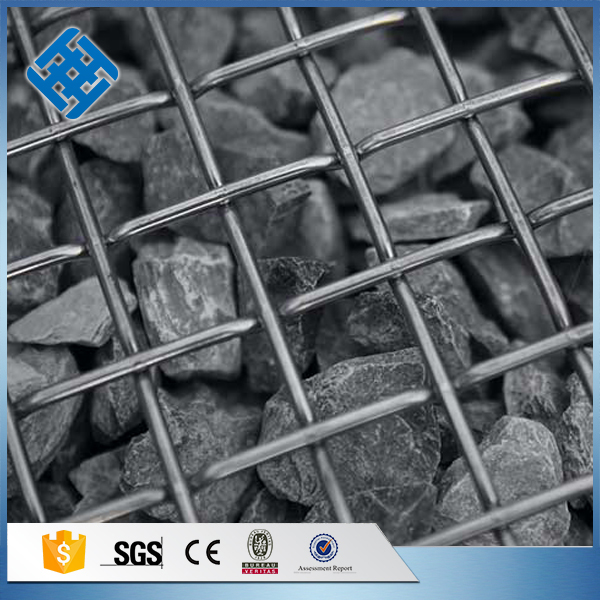

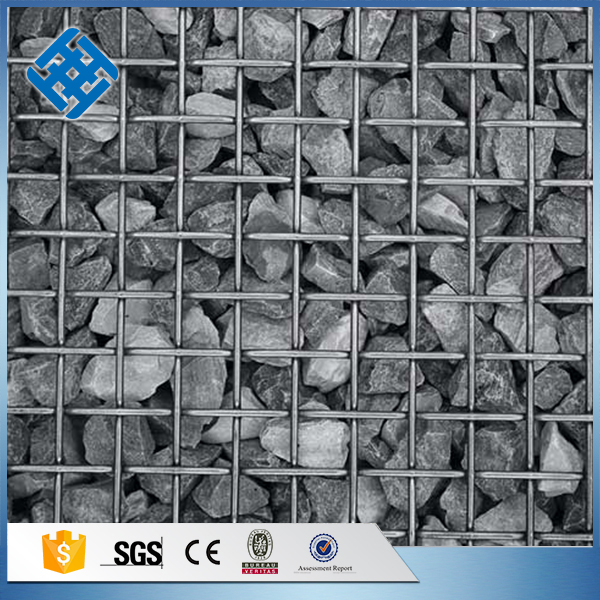

  • stone crusher screen
  • stone crusher screen
  • stone crusher screen
  • stone crusher screen
  • stone crusher screen
stone crusher screenstone crusher screenstone crusher screenstone crusher screenstone crusher screen

stone crusher screen

  • Material: black wire, spring steel wire, manganese steel wire
  • Weaving type: Plain weave. Pre-crimped. Flat top. Intermediate crimped. Lock crimped
  • Wire diameter: 0.71mm - 12.5mm. Mesh size: 1mm - 100mm.
  • Hole type: square, rectangular and long slot. Surface treatment: galvanized or painted.
  • Product description: Mainly used as screen mesh, it is widely used in many industries, such as mining screen, quarrying screen, the screen deck, screen wire for stone crusher; Vibrating screen; Road construction equipment
  • INQUIRY

Specification:
Width of the grid: up to 2.200 mm
Length of the grid: up to 5.000 mm or in roll form up to 50 m
Dimensional tolerances in length and width: -0 mm /+1 mesh width (customary)
On request fixed measures with tolerances of +/-2 mm in length and width


Special sizes can be customized according to your requirements

Material:
High tensile screen cloth is commonly used in heavy duty applications for scalping and sizing of rocks,aggregates,limestone,etc. They are weaved in sizes to suite most vibrating screens and available in:
* High Tensile Steel---Abrasion resistance
* Stainless Steel---Corrosion resistance
* Monel,Brass,etc---General applications

Weaving Types

stone crusher screen, mine screen mesh, Quarry mesh


Flat Top Wire Mesh


Flat top wire mesh is manufactured with wires crimped on one side only to create a flat surface, thus enhancing its durability and allowing bigger apertures with high precision. It is generally used for coarse mineral screening.


Specification

aperture
square
weave
Medium Heavy Duty
Wire
Dia
kg/m² OA%

Wire
Dia

kg/m² OA%
2.00 1.37 7.1 35
3.15 2.00 9.9 37 2.50 14.1 31
4.0 2.50 12.2 38 3.05 16.8 32
5.0 2.50 16.6 44 3.05 14.7 38
5.6 3.05 13.7 41 4.00 21.2 34
6.35 3.05 12.6 46 4.00 19.6 38
6.8 3.05 10.0 44 4.00 19.7 37
7.1 3.05 11.9 48 4.00 18.3 41
8 4.00 16.9 44 5.00 24.4 38
9 4.00 15.6 48 5.00 22.7 44
10 4.00 14.5 51 5.00 21.2 44
11.2 5.00 19.6 48 5.60 28.6 44
12.5 5.00 18.1 51 5.60 20.0 47

14

5.00 20.0 51 6.80 24.6 48

16

5.60 19.5 56 6.80 22.6 51
18 6.80 20.7 55 7.10 25.0 51
20 6.80 19.2 58 7.10 24.0 54
22 7.10 21.5 57 8.00 26.7 54
25 7.10 20.1 60 8.00 24.6 57
28 8.00 19.0 61 9.00 27.8 57
32 9.00 26.0 60 10.00 30.4 58
38 9.00 28.1 64 10.00 27.9 61
40 10.00 25.4 64 11.20 31.1 61
45 10.00 23.4 67 11.20 28.4 64
50 11.20 26.0 67 12.50 31.8 64
56 11.20 28.7 69 12.50 29.0 67
63 11.20 24.5 72 12.50 25.1 70
76.2 11.20 16.0 75 12.50 20.0 73
80 11.20 17.5 72 12.50 21.5 75
90 11.20 15.7 79 12.70 19.4 77
100 11.20 14.3 81 12.70 17.6 79

Carbon Steel Parameter

N0 Grade
Chemical Composition%
C Si Mn
1 45 0.42-0.50 0.17-0.37 0.50-0.80
2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60

Product Detall

Flat Top Screen

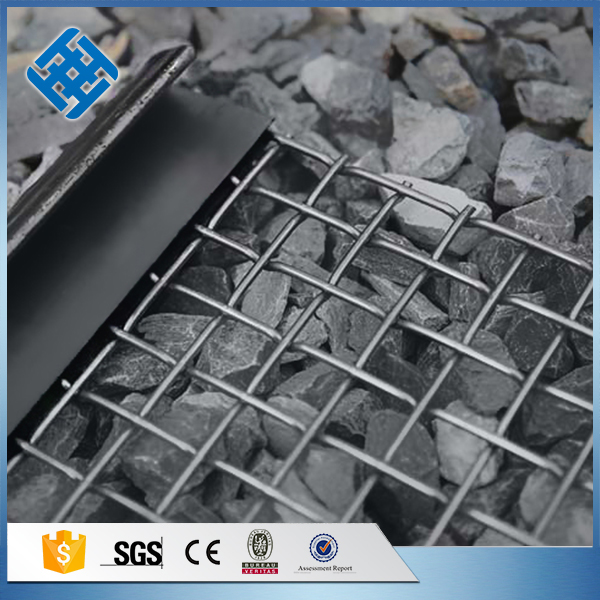

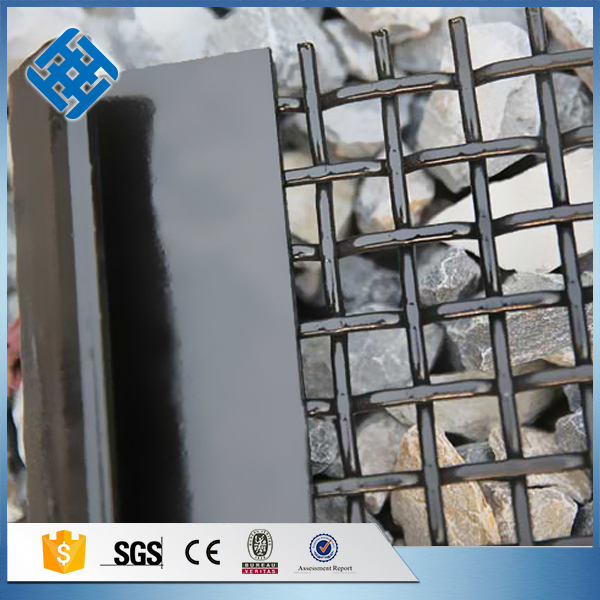

Edge Types

Flat Top Screen Edge Types

Why Choose Our Products?

stone crusher screen, mine screen mesh, Quarry mesh
Superior carbon steel and stainless steel wires
stone crusher screen, mine screen mesh, Quarry mesh
Strict production and quality control procedure
stone crusher screen, mine screen mesh, Quarry mesh
A wide range of sizes and patterns for your option
stone crusher screen, mine screen mesh, Quarry mesh
Easy installation and maintenance
stone crusher screen, mine screen mesh, Quarry mesh
Large stocks for urgent orders
stone crusher screen, mine screen mesh, Quarry mesh
Large output and timely delivery
