Stainless Steel Wire Mesh

  • Stainless Steel Slot Screen
  • Stainless Steel Slot Screen
  • Stainless Steel Slot Screen
  • Stainless Steel Slot Screen
Stainless Steel Slot ScreenStainless Steel Slot ScreenStainless Steel Slot ScreenStainless Steel Slot Screen

Stainless Steel Slot Screen

  • Material:SS304,SS304L,SS316,SS316L,and other SS alloy.
  • Wire Gauge : 0.8mm to 16mm size: 1mm to 100mm
  • Weave Type: Single intermediate crimp screen, double intermediate crimp screen, lock crimp screen, flat top screen, pressure welded screen.
  • Hole type: square, rectangle and long slot special size can be customized according to your requirements
  • Product description: Stainless steel mesh screen can be widely used in sand,rock,coal,gavel,metal material screening ,quarry aggregate,mining industries ,road construction industries,asphalt mixing plant and so on.
  • INQUIRY

* Features: heat resistance, acid resistance, alkali resistance, corrosion resistance, wear resistance, wide structure solid

* Property:Beautiful outlook,firm and durable construction, uniform mesh, fine rust-resisting.

* Packing:In rolls, wrapped with waterproof paper then covered with hessian-cloth. Special packing may be arranged if necessary.

* Applications Showing:
Stainless steel mesh screen can be widely used in sand,rock,coal,gavel,metal material screening ,quarry aggregate,mining industries ,road construction industries,asphalt mixing plant and so on.

Special sizes can be customized according to your requirements

Weaving Types

Stainless steel crimping mesh, carbon steel mesh, carbon steel wire mesh, crushed stone screen, mine screen, quarry mesh

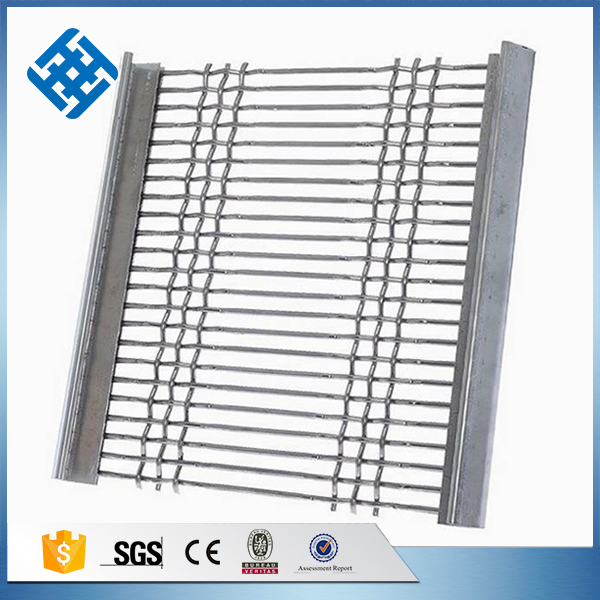

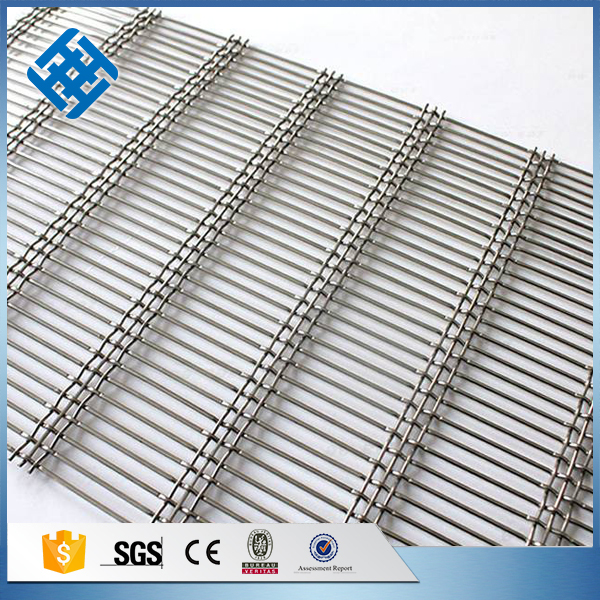

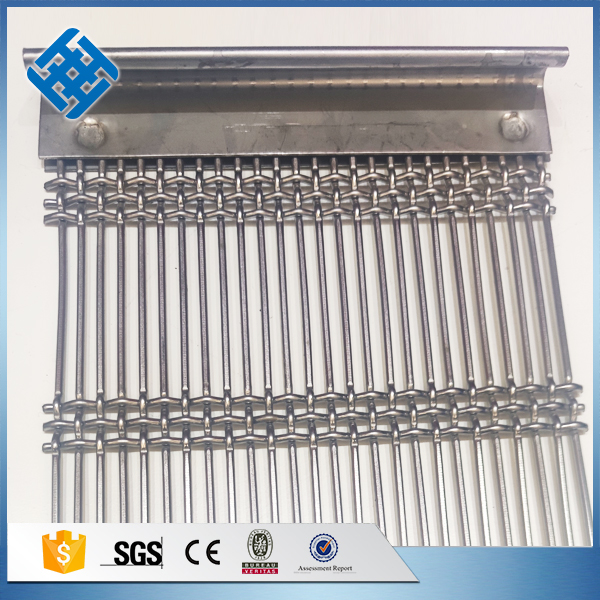

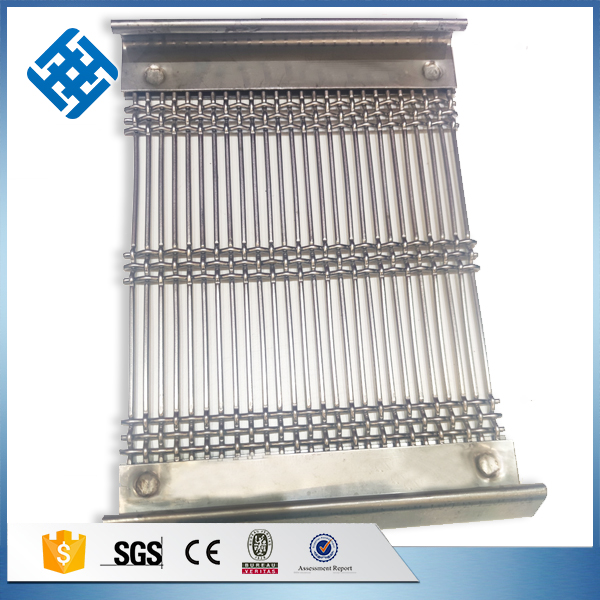

Stainless Steel Slot Screen


Slotted flat wire mesh adopts indistinctly crimped and flat undulated wires which tend to maintain a flat work surface. It employs thick diameter or double wires to achieve greater resistance to heavy materials.


Specification

Mesh Wire Gauge Aperture Percentage of
Opening (%)
inch mm inch mm
2" 0.116 2.94 1.884 47.86 88.76
2" 0.135 3.42 1.865 47.38 86.99
2" 0.159 4.04 1.841 46.76 84.73
2" 0.212 5.38 1.788 45.42 79.94
1 1/2" 0.104 2.64 1.396 35.46 86.62
1 1/2" 0.135 3.42 1.365 34.68 82.85
1 1/2" 0.159 4.04 1.341 34.06 79.92
1×1 0.080 2.03 0.920 23.37 84.65
1×1 0.116 2.94 0.884 22.46 78.19
1×1 0.135 3.42 0.865 21.98 74.88
2×2 0.047 1.19 0.453 11.51 82.14
2×2 0.072 1.83 0.428 10.87 73.26
2×2 0.104 2.64 0.396 10.06 62.75
2×2 0.120 3.05 0.380 9.65 57.74
3×3 0.054 1.37 0.279 7.10 70.26
3×3 0.072 1.83 0.261 6.64 61.44
3×3 0.080 2.03 0.253 6.44 57.80
4×4 0.028 0.71 0.222 5.64 78.89
4×4 0.047 1.19 0.203 5.16 66.03
4×4 0.063 1.60 0.187 4.75 55.96
4×4 0.080 2.03 0.170 4.32 46.28
5×5 0.035 0.89 0.165 4.19 68.03
5×5 0.047 1.19 0.153 3.89 58.64
5×5 0.063 1.60 0.137 3.48 46.93
6×6 0.035 0.89 0.132 3.34 62.37
6×6 0.041 1.04 0.126 3.19 56.90
6×6 0.047 1.19 0.120 3.04 51.68
6×6 0.063 1.60 0.104 2.63 38.69
8×8 0.017 0.43 0.108 2.75 74.75
8×8 0.028 0.71 0.097 2.47 60.28
8×8 0.035 0.89 0.090 2.29 51.79
8×8 0.047 1.19 0.078 1.99 39.09
10×10 0.017 0.43 0.083 2.11 69.01
10×10 0.025 0.635 0.075 1.91 56.25
10×10 0.032 0.813 0.068 1.73 46.23
10×10 0.047 1.19 0.053 1.35 28.25
12×12 0.017 0.43 0.066 1.69 63.50
12×12 0.023 0.58 0.060 1.54 52.71
12×12 0.028 0.71 0.055 1.41 44.16
12×12 0.035 0.89 0.048 1.23 33.59
14×14 0.015 0.38 0.056 1.43 62.50
14×14 0.020 0.50 0.052 1.31 52.48
14×14 0.028 0.71 0.043 1.10 37.05
16×16 0.015 0.38 0.048 1.21 57.86
16×16 0.018 0.45 0.045 1.14 51.34
16×16 0.023 0.58 0.040 1.01 40.28
16×16 0.028 0.71 0.035 0.88 30.55
18×18 0.014 0.35 0.042 1.06 56.55
18×18 0.017 0.43 0.039 0.98 48.34
18×18 0.020 0.50 0.036 0.91 41.69
18×18 0.023 0.58 0.033 0.83 34.69
20×20 0.014 0.35 0.036 0.92 52.48
20×20 0.017 0.43 0.033 0.84 43.75
20×20 0.020 0.50 0.030 0.77 36.76
20×20 0.023 0.58 0.027 0.69 29.52

Product Detall

Flat Top Screen

Edge Types

Stainless steel crimping mesh, carbon steel mesh, carbon steel wire mesh, crushed stone screen, mine screen, quarry mesh

Why Choose Our Products?

Stainless steel crimping mesh, carbon steel mesh, carbon steel wire mesh, crushed stone screen, mine screen, quarry mesh
Superior carbon steel and stainless steel wires
Stainless steel crimping mesh, carbon steel mesh, carbon steel wire mesh, crushed stone screen, mine screen, quarry mesh
Strict production and quality control procedure
Stainless steel crimping mesh, carbon steel mesh, carbon steel wire mesh, crushed stone screen, mine screen, quarry mesh
A wide range of sizes and patterns for your option
Stainless steel crimping mesh, carbon steel mesh, carbon steel wire mesh, crushed stone screen, mine screen, quarry mesh
Easy installation and maintenance
Stainless steel crimping mesh, carbon steel mesh, carbon steel wire mesh, crushed stone screen, mine screen, quarry mesh
Large stocks for urgent orders
Stainless steel crimping mesh, carbon steel mesh, carbon steel wire mesh, crushed stone screen, mine screen, quarry mesh
Large output and timely delivery
