Double Crimp Wire Mesh

  • Material: highly abrasion-resistant spring steel or stainless spring steel.
  • Opening size: 2.0 - 80.0 mm Wire diameter: 0.8 - 8 mm
  • Installation instructions: the screen is installed with using of tensioning metallic bars into a separator over different types of hook strips, further with using of side bars and wedges, possibly is
  • Hole type: square, rectangular and long slot. Surface treatment: galvanized or painted.
  • Product description: Mainly used as screen mesh, it is widely used in many industries, such as mining screen, quarrying screen, the screen deck, screen wire for stone crusher; Vibrating screen;
  • INQUIRY

Application:

* Safety grids (e.g. car industry, mechanical engineering, building industry)
* Filling elements for gates and fences in buildings and gardens
* Booth construction
* Plant breeding
* Pigeon barriers
* Noise protection

Material:
High tensile screen cloth is commonly used in heavy duty applications for scalping and sizing of rocks,aggregates,limestone,etc. They are weaved in sizes to suite most vibrating screens and available in:
* High Tensile Steel---Abrasion resistance
* Stainless Steel---Corrosion resistance
* Monel,Brass,etc---General applications

Special sizes can be customized according to your requirements

Weaving Types

Double crimp screen, Double Crimp Vibrating Screens, Crimp Screen, double crimped wire mesh, Double Crimp Woven Screen

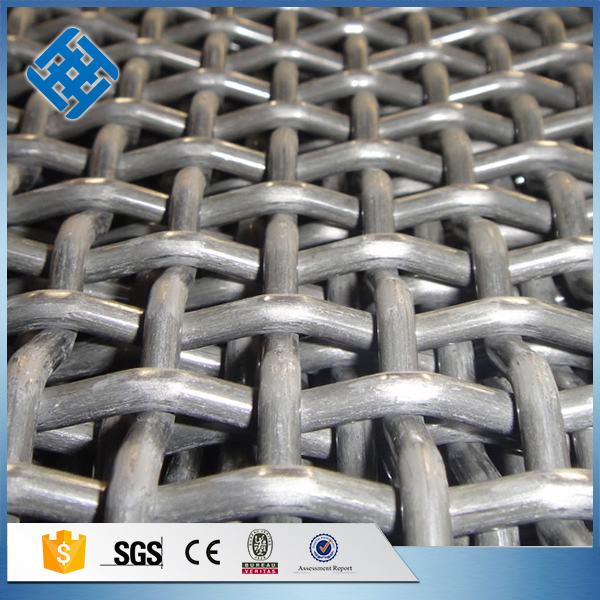

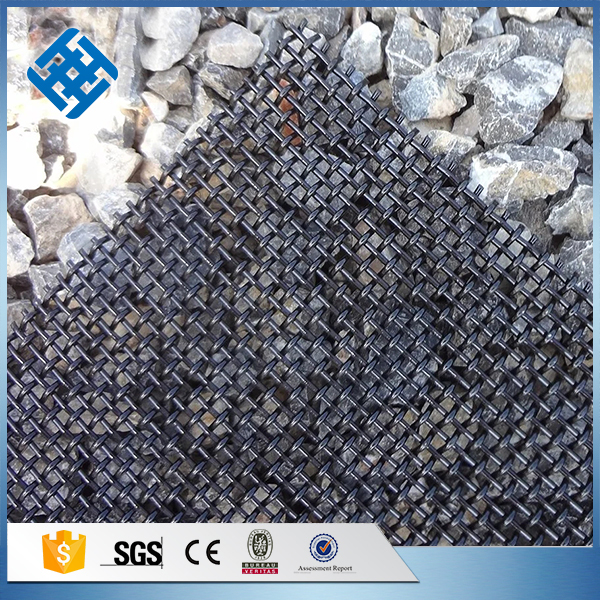

Double Crimp Wire Mesh


Double Crimp Screens are produced by weaving previously crimped wires into one another. The mesh width and wire diameter determine the number of crimps within a mesh width. In some cases it is possible to produce grids with identical mesh width and differing numbers of crimps. The number of crimps set by us guarantees the highest possible mesh stability.


Specification

aperture
square
weave
Medium Heavy Duty
Wire
Dia
kg/m² OA%

Wire
Dia

kg/m² OA%
2.00 1.37 7.1 35
3.15 2.00 9.9 37 2.50 14.1 31
4.0 2.50 12.2 38 3.05 16.8 32
5.0 2.50 16.6 44 3.05 14.7 38
5.6 3.05 13.7 41 4.00 21.2 34
6.35 3.05 12.6 46 4.00 19.6 38
6.8 3.05 10.0 44 4.00 19.7 37
7.1 3.05 11.9 48 4.00 18.3 41
8 4.00 16.9 44 5.00 24.4 38
9 4.00 15.6 48 5.00 22.7 44
10 4.00 14.5 51 5.00 21.2 44
11.2 5.00 19.6 48 5.60 28.6 44
12.5 5.00 18.1 51 5.60 20.0 47

14

5.00 20.0 51 6.80 24.6 48

16

5.60 19.5 56 6.80 22.6 51
18 6.80 20.7 55 7.10 25.0 51
20 6.80 19.2 58 7.10 24.0 54
22 7.10 21.5 57 8.00 26.7 54
25 7.10 20.1 60 8.00 24.6 57
28 8.00 19.0 61 9.00 27.8 57
32 9.00 26.0 60 10.00 30.4 58
38 9.00 28.1 64 10.00 27.9 61
40 10.00 25.4 64 11.20 31.1 61
45 10.00 23.4 67 11.20 28.4 64
50 11.20 26.0 67 12.50 31.8 64
56 11.20 28.7 69 12.50 29.0 67
63 11.20 24.5 72 12.50 25.1 70
76.2 11.20 16.0 75 12.50 20.0 73
80 11.20 17.5 72 12.50 21.5 75
90 11.20 15.7 79 12.70 19.4 77
100 11.20 14.3 81 12.70 17.6 79

Carbon Steel Parameter

N0 Grade
Chemical Composition%
C Si Mn
1 45 0.42-0.50 0.17-0.37 0.50-0.80
2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60

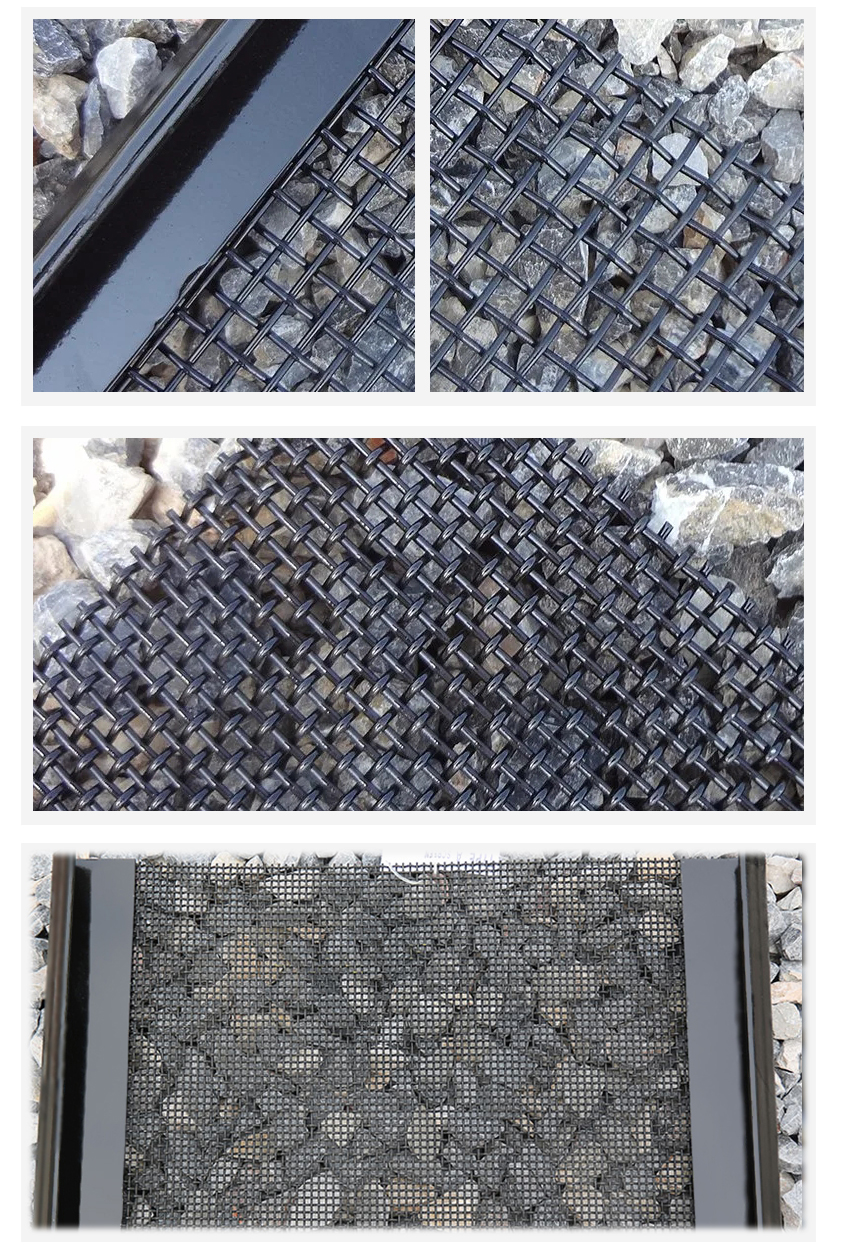

Product Detall

Double crimp screen, Double Crimp Vibrating Screens, Crimp Screen, double crimped wire mesh, Double Crimp Woven Screen

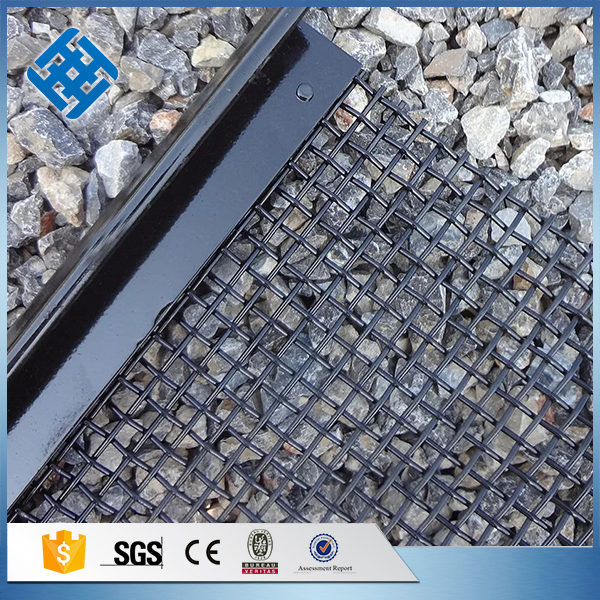

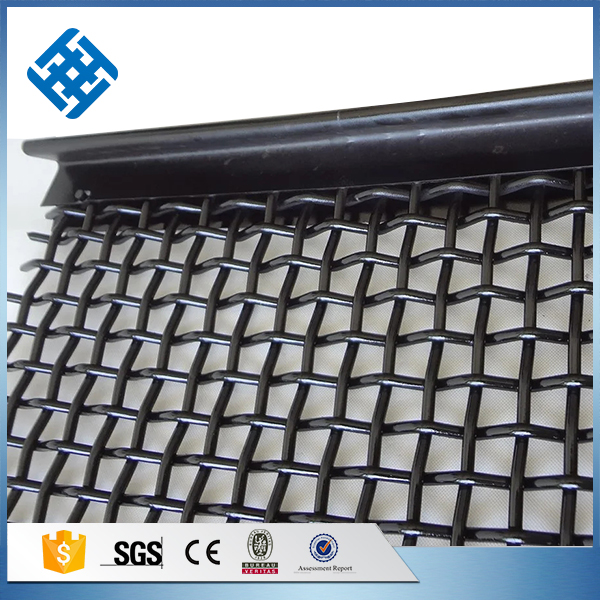

Edge Types

Double crimp screen, Double Crimp Vibrating Screens, Crimp Screen, double crimped wire mesh, Double Crimp Woven Screen

Why Choose Our Products?

Double crimp screen, Double Crimp Vibrating Screens, Crimp Screen, double crimped wire mesh, Double Crimp Woven Screen
Superior carbon steel and stainless steel wires
Double crimp screen, Double Crimp Vibrating Screens, Crimp Screen, double crimped wire mesh, Double Crimp Woven Screen
Strict production and quality control procedure
Double crimp screen, Double Crimp Vibrating Screens, Crimp Screen, double crimped wire mesh, Double Crimp Woven Screen
A wide range of sizes and patterns for your option
Double crimp screen, Double Crimp Vibrating Screens, Crimp Screen, double crimped wire mesh, Double Crimp Woven Screen
Easy installation and maintenance
Double crimp screen, Double Crimp Vibrating Screens, Crimp Screen, double crimped wire mesh, Double Crimp Woven Screen
Large stocks for urgent orders
Double crimp screen, Double Crimp Vibrating Screens, Crimp Screen, double crimped wire mesh, Double Crimp Woven Screen
Large output and timely delivery
