Different Weaving Type of Vibrating Woven Wire Mesh

Woven wire mesh can be used as vibrating screen mesh to separating and sizing the stone, sands and other materials.

Vibrating woven wire mesh weaving type can be flat top crimped, lock crimped, double crimped, intermediate crimped.

Flat top crimped

Flat top crimped, also called pressed crimped, is made from round and profiled plain weave wire. All the mesh knuckles is being on the underside. The structure is very heavy and durable. It allows material to move more freely over the screen and maximize the plugging.

Sketch map of flat top crimped woven wire.		Flat top crimped woven wire screen.

Lock crimped

Lock crimped mesh is a method, which can lock the wire at their own positions through pressed at each side of the raised wire.

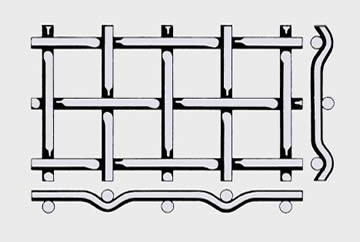

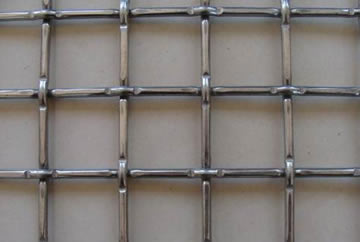

Sketch map of lock crimp woven wire.		Lock crimp woven wire mesh.

Double crimped

Double crimped is also called plain weave. It is woven directly by straight wire, evenly crimped in warp and weft, providing a rigid construction. The wires are under crimped and sprung together thus giving a tight mesh. This is used mainly with lighter wires to ensure tension in a light screen.

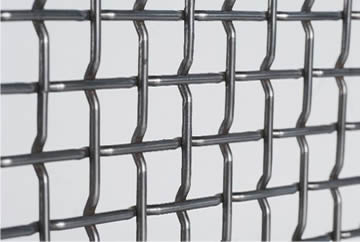

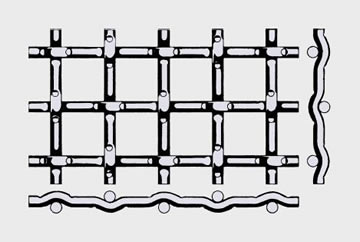

Sketch map of double crimped woven wire screen.		Double crimped woven wire screen.
