Anti-blocking Screen

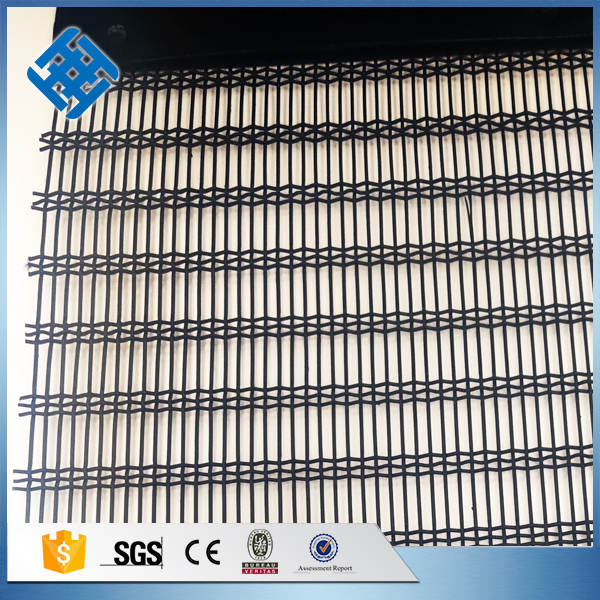

factory price for 65Mn Vibrating Screen Mesh

factory price for 65Mn Vibrating Screen Mesh

Material: black wire, spring steel wire, manganese steel wire
Wire Diameter:0.3mm~14mm Aperture:0.1-3m Weight:1.45-20kg/m2
Type of weaving: Crimped before weave, double-direction,ripples flections, tight lock flections, flattop flections, double-direction flections, list-direction separate ripples flections.
Hole type: rectangular and long slot. Surface treatment: galvanized or painted.
Product description: Slot Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying and aggregating industries. Typically, it is made of wires of the same diameter that are crimped
INQUIRY

Crimping: Double crimped,Inter crimped,Lock crimped etc.
Opening: 3mm to 150mm with wires 1.4mm to 12.7mm thick;
Specification: width up to 2.2m, no length limitation.
Edge: Raw Edge,plated sheathed,hooked,inner plated welded etc.

Material:
High tensile screen cloth is commonly used in heavy duty applications for scalping and sizing of rocks,aggregates,limestone,etc. They are weaved in sizes to suite most vibrating screens and available in:
* High Tensile Steel---Abrasion resistance
* Stainless Steel---Corrosion resistance
* Monel,Brass,etc---General applications

Special sizes can be customized according to your requirements

Weaving Types

high carbon mild steel mesh,carbon steel screen , carbon steel wire mesh, stone crusher screen, mine screen mesh, Quarry mesh

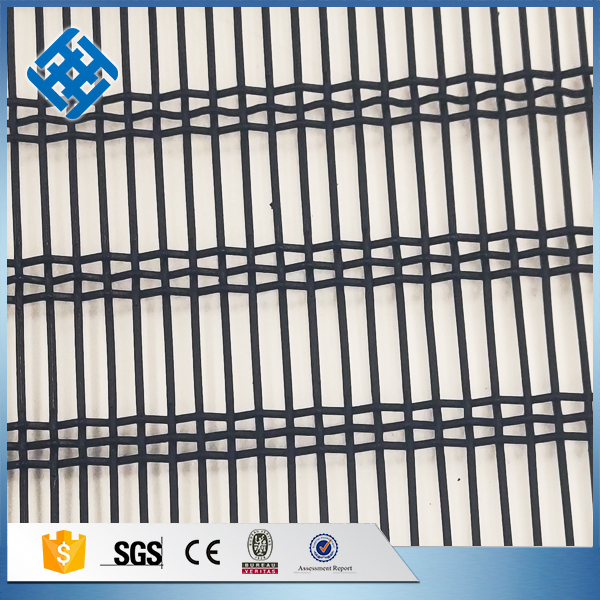

Rectangular Screen

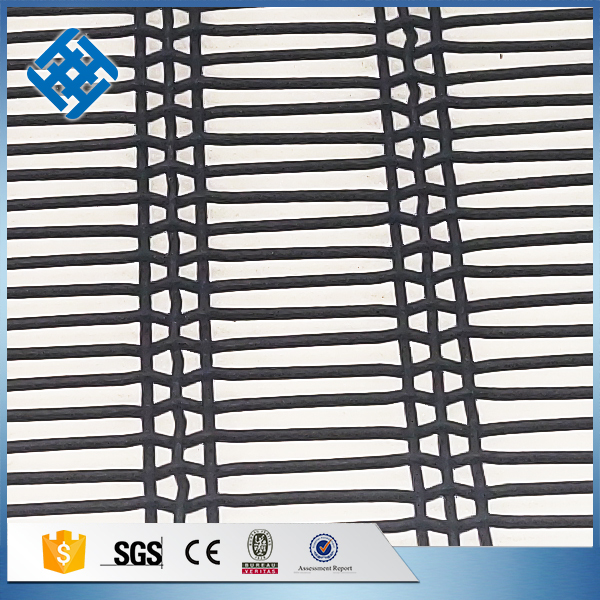

Slotted wire mesh adopts indistinctly crimped and flat undulated wires which tend to maintain a flat work surface. It employs thick diameter or double wires to achieve greater resistance to heavy materials.

Specification

aperture square weave	Medium			Heavy Duty
aperture square weave	Wire Dia	kg/m²	OA%	Wire Dia	kg/m²	OA%
2.00				1.37	7.1	35
3.15	2.00	9.9	37	2.50	14.1	31
4.0	2.50	12.2	38	3.05	16.8	32
5.0	2.50	16.6	44	3.05	14.7	38
5.6	3.05	13.7	41	4.00	21.2	34
6.35	3.05	12.6	46	4.00	19.6	38
6.8	3.05	10.0	44	4.00	19.7	37
7.1	3.05	11.9	48	4.00	18.3	41
8	4.00	16.9	44	5.00	24.4	38
9	4.00	15.6	48	5.00	22.7	44
10	4.00	14.5	51	5.00	21.2	44
11.2	5.00	19.6	48	5.60	28.6	44
12.5	5.00	18.1	51	5.60	20.0	47
14	5.00	20.0	51	6.80	24.6	48
16	5.60	19.5	56	6.80	22.6	51
18	6.80	20.7	55	7.10	25.0	51
20	6.80	19.2	58	7.10	24.0	54
22	7.10	21.5	57	8.00	26.7	54
25	7.10	20.1	60	8.00	24.6	57
28	8.00	19.0	61	9.00	27.8	57
32	9.00	26.0	60	10.00	30.4	58
38	9.00	28.1	64	10.00	27.9	61
40	10.00	25.4	64	11.20	31.1	61
45	10.00	23.4	67	11.20	28.4	64
50	11.20	26.0	67	12.50	31.8	64
56	11.20	28.7	69	12.50	29.0	67
63	11.20	24.5	72	12.50	25.1	70
76.2	11.20	16.0	75	12.50	20.0	73
80	11.20	17.5	72	12.50	21.5	75
90	11.20	15.7	79	12.70	19.4	77
100	11.20	14.3	81	12.70	17.6	79

Carbon Steel Parameter

N0	Grade	Chemical Composition%
N0	Grade	C	Si	Mn
1	45	0.42-0.50	0.17-0.37	0.50-0.80
2	50	0.47-0.55
3	55	0.52-0.60
4	60	0.57-0.65
5	65	0.62-0.70
6	70	0.67-0.75
7	65Mn	0.62-0.70		0.90-1.20
8	72A	0.70-0.75	0.15-0.35	0.30-0.60

Product Detall

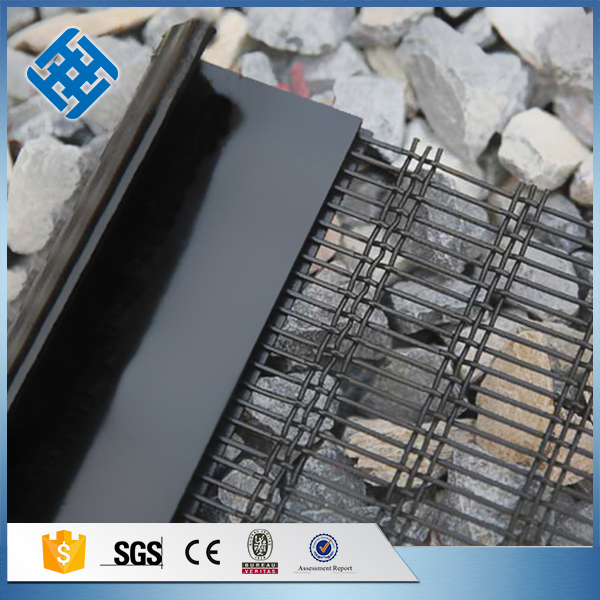

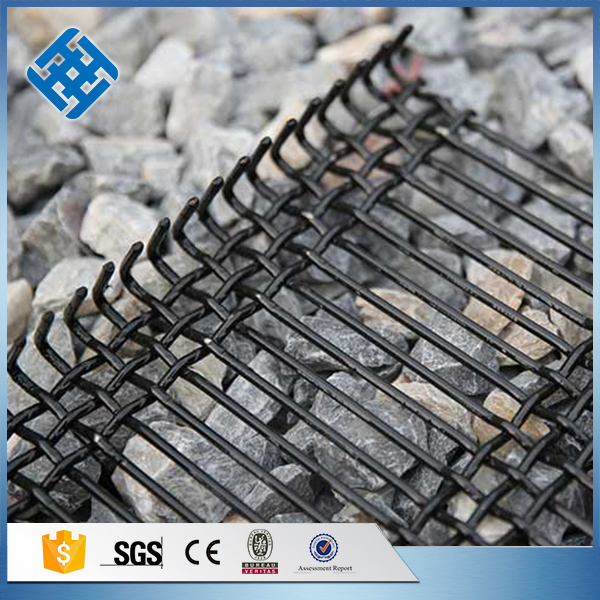

Edge Types

Why Choose Our Products?

	Superior carbon steel and stainless steel wires
	Strict production and quality control procedure
	A wide range of sizes and patterns for your option
	Easy installation and maintenance
	Large stocks for urgent orders
	Large output and timely delivery
