Manganese steel screen is in flat, curved or cylindrical panels made of looped, round and/or wedge shaped woven wires for precise openings.It is supplied in stainless steel and other special steel metals and alloy metal screens, mainly used on dewatering equipment.Wedge wire screen is made with certain size of woven wire cloth as screen fabrics, then framed with stainless steel or coated carbon steel plates. offering great strenght. precision ,long service life.
Material:
High tensile screen cloth is commonly used in heavy duty applications for scalping and sizing of rocks,aggregates,limestone,etc.
They are weaved in sizes to suite most vibrating screens and available in:
* High Tensile Steel---Abrasion resistance
* Stainless Steel---Corrosion resistance
* Monel,Brass,etc---General applications

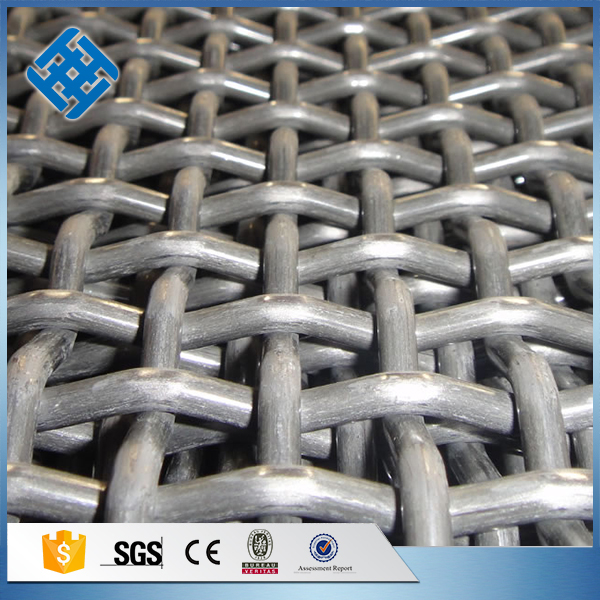

vibration screen mesh ,stone screen mesh wire Mesh is made of carbon iron wire, galvanized steel wire or stainless steel wire. Weaving Patterns: Weaving after crimping.
General Use: Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.

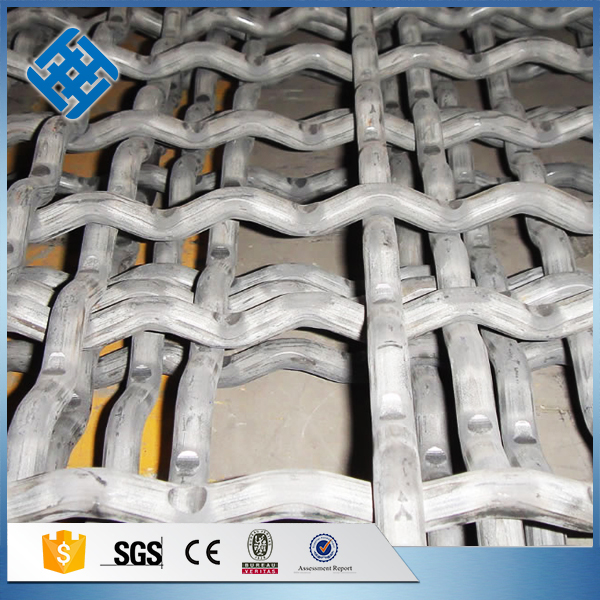

Weaving : weave after crimp, plain crimp ,single Intermediate crimp, double
intermediate crimp , lock crimp mesh , flat top crimp
haotong factory produce vibration screen mesh stone crusher screen mesh .
|
Double Crimp Wire Mesh |
Flat Top Wire Mesh |
|
Lock Crimp Wire Mesh |
Slotted wire mesh |
|
aperture square weave |
Medium | Heavy Duty | ||||
|---|---|---|---|---|---|---|
|
Wire Dia |
kg/m² | OA% |
Wire |
kg/m² | OA% | |
| 2.00 | 1.37 | 7.1 | 35 | |||
| 3.15 | 2.00 | 9.9 | 37 | 2.50 | 14.1 | 31 |
| 4.0 | 2.50 | 12.2 | 38 | 3.05 | 16.8 | 32 |
| 5.0 | 2.50 | 16.6 | 44 | 3.05 | 14.7 | 38 |
| 5.6 | 3.05 | 13.7 | 41 | 4.00 | 21.2 | 34 |
| 6.35 | 3.05 | 12.6 | 46 | 4.00 | 19.6 | 38 |
| 6.8 | 3.05 | 10.0 | 44 | 4.00 | 19.7 | 37 |
| 7.1 | 3.05 | 11.9 | 48 | 4.00 | 18.3 | 41 |
| 8 | 4.00 | 16.9 | 44 | 5.00 | 24.4 | 38 |
| 9 | 4.00 | 15.6 | 48 | 5.00 | 22.7 | 44 |
| 10 | 4.00 | 14.5 | 51 | 5.00 | 21.2 | 44 |
| 11.2 | 5.00 | 19.6 | 48 | 5.60 | 28.6 | 44 |
| 12.5 | 5.00 | 18.1 | 51 | 5.60 | 20.0 | 47 |
|
14 |
5.00 | 20.0 | 51 | 6.80 | 24.6 | 48 |
|
16 |
5.60 | 19.5 | 56 | 6.80 | 22.6 | 51 |
| 18 | 6.80 | 20.7 | 55 | 7.10 | 25.0 | 51 |
| 20 | 6.80 | 19.2 | 58 | 7.10 | 24.0 | 54 |
| 22 | 7.10 | 21.5 | 57 | 8.00 | 26.7 | 54 |
| 25 | 7.10 | 20.1 | 60 | 8.00 | 24.6 | 57 |
| 28 | 8.00 | 19.0 | 61 | 9.00 | 27.8 | 57 |
| 32 | 9.00 | 26.0 | 60 | 10.00 | 30.4 | 58 |
| 38 | 9.00 | 28.1 | 64 | 10.00 | 27.9 | 61 |
| 40 | 10.00 | 25.4 | 64 | 11.20 | 31.1 | 61 |
| 45 | 10.00 | 23.4 | 67 | 11.20 | 28.4 | 64 |
| 50 | 11.20 | 26.0 | 67 | 12.50 | 31.8 | 64 |
| 56 | 11.20 | 28.7 | 69 | 12.50 | 29.0 | 67 |
| 63 | 11.20 | 24.5 | 72 | 12.50 | 25.1 | 70 |
| 76.2 | 11.20 | 16.0 | 75 | 12.50 | 20.0 | 73 |
| 80 | 11.20 | 17.5 | 72 | 12.50 | 21.5 | 75 |
| 90 | 11.20 | 15.7 | 79 | 12.70 | 19.4 | 77 |
| 100 | 11.20 | 14.3 | 81 | 12.70 | 17.6 | 79 |
| N0 |
Grade |
Chemical Composition% | ||
|---|---|---|---|---|
| C | Si | Mn | ||
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 | ||
| 3 | 55 | 0.52-0.60 | ||
| 4 | 60 | 0.57-0.65 | ||
| 5 | 65 | 0.62-0.70 | ||
| 6 | 70 | 0.67-0.75 | ||
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
Crusher Wire Mesh can be used in mining, coal, metallurgy industries.
Applications

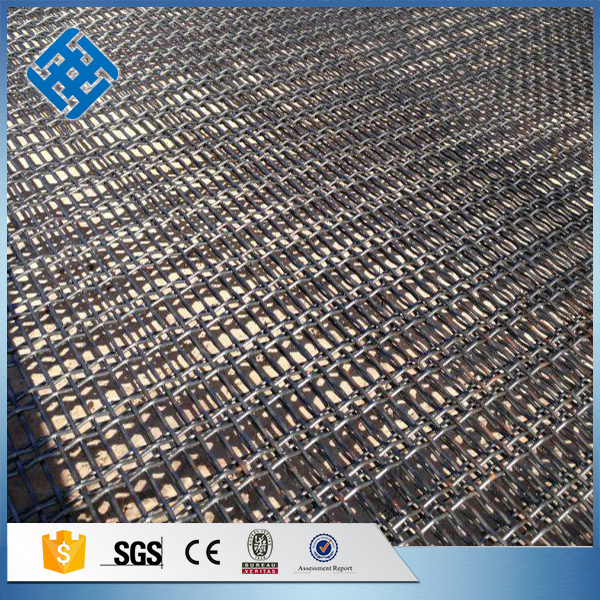

Crusher Wire Mesh can be used as screen panel in the quarry screen and crusher screen to separate and size the stones, sand, gravel, coal and other materials.
Crusher Wire Mesh is widely used in the mining, coal, metallurgy, chemical and other industries.
Crusher Wire Mesh can be used as screen mesh for the trommel screen to improve the working efficiency and separate lighter and wetter materials in the chemical, coal, construction, plastic, metallurgy, mineral-selecting, agriculture, etc.
 |
Superior carbon steel and stainless steel wires |
|
|
Strict production and quality control procedure |
|
|
A wide range of sizes and patterns for your option |
|
|
Easy installation and maintenance |
|
|
Large stocks for urgent orders |
|
|
Large output and timely delivery |
