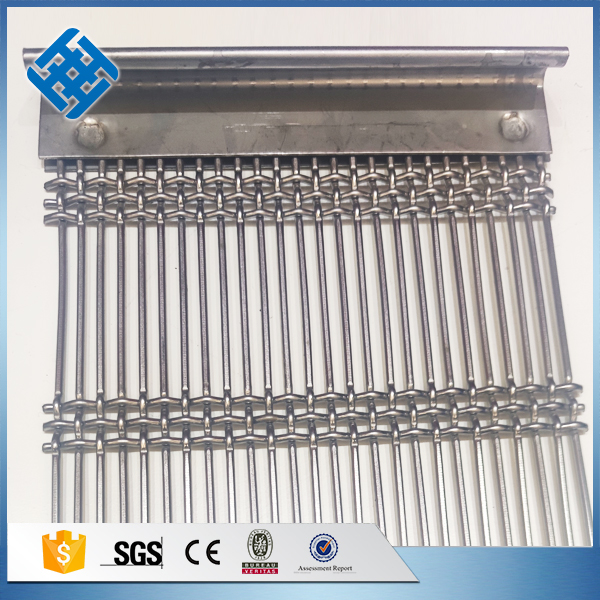

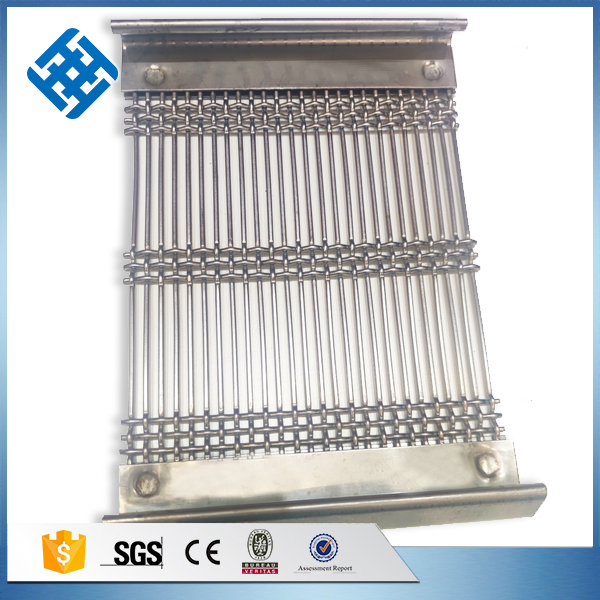

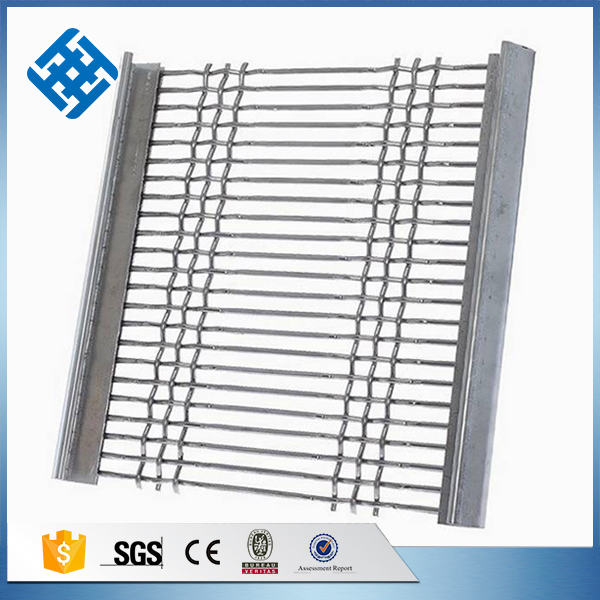

Anti-blocking Screen

Stainless Steel Quarry Rock Steel Woven Steel Screen Mesh

Stainless Steel Quarry Rock Steel Woven Steel Screen Mesh

Material:SS304,SS304L,SS316,SS316L,and other SS alloy.
Wire Gauge : 0.8mm to 16mm size: 1mm to 100mm
Weave Type: Single intermediate crimp screen, double intermediate crimp screen, lock crimp screen, flat top screen, pressure welded screen.
Hole type: square, rectangle and long slot special size can be customized according to your requirements
Product description: Stainless steel mesh screen can be widely used in sand,rock,coal,gavel,metal material screening ,quarry aggregate,mining industries ,road construction industries,asphalt mixing plant and so on.
INQUIRY

* Features: heat resistance, acid resistance, alkali resistance, corrosion resistance, wear resistance, wide structure solid

* Property:Beautiful outlook,firm and durable construction, uniform mesh, fine rust-resisting.

* Packing:In rolls, wrapped with waterproof paper then covered with hessian-cloth. Special packing may be arranged if necessary.

* Applications Showing:
Fine stainless steel cloth screen is widely used in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace,machine making and so on.

Weaving Types

Double crimp screen Double Crimp Vibrating Screens Crimp Screen double crimped wire mesh Double Crimp Woven Screen Double intermediate crimp screendouble crimped screen mesh Double Crimp Screenchina double crimp screen

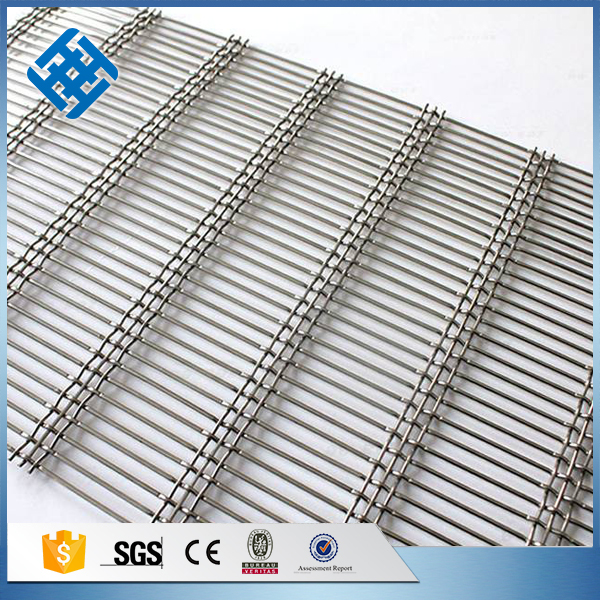

Rectangular Screen

Slotted flat wire mesh adopts indistinctly crimped and flat undulated wires which tend to maintain a flat work surface. It employs thick diameter or double wires to achieve greater resistance to heavy materials.

Specification

Mesh	Wire Gauge		Aperture		Percentage of Opening (%)
Mesh	inch	mm	inch	mm	Percentage of Opening (%)
2"	0.116	2.94	1.884	47.86	88.76
2"	0.135	3.42	1.865	47.38	86.99
2"	0.159	4.04	1.841	46.76	84.73
2"	0.212	5.38	1.788	45.42	79.94
1 1/2"	0.104	2.64	1.396	35.46	86.62
1 1/2"	0.135	3.42	1.365	34.68	82.85
1 1/2"	0.159	4.04	1.341	34.06	79.92
1×1	0.080	2.03	0.920	23.37	84.65
1×1	0.116	2.94	0.884	22.46	78.19
1×1	0.135	3.42	0.865	21.98	74.88
2×2	0.047	1.19	0.453	11.51	82.14
2×2	0.072	1.83	0.428	10.87	73.26
2×2	0.104	2.64	0.396	10.06	62.75
2×2	0.120	3.05	0.380	9.65	57.74
3×3	0.054	1.37	0.279	7.10	70.26
3×3	0.072	1.83	0.261	6.64	61.44
3×3	0.080	2.03	0.253	6.44	57.80
4×4	0.028	0.71	0.222	5.64	78.89
4×4	0.047	1.19	0.203	5.16	66.03
4×4	0.063	1.60	0.187	4.75	55.96
4×4	0.080	2.03	0.170	4.32	46.28
5×5	0.035	0.89	0.165	4.19	68.03
5×5	0.047	1.19	0.153	3.89	58.64
5×5	0.063	1.60	0.137	3.48	46.93
6×6	0.035	0.89	0.132	3.34	62.37
6×6	0.041	1.04	0.126	3.19	56.90
6×6	0.047	1.19	0.120	3.04	51.68
6×6	0.063	1.60	0.104	2.63	38.69
8×8	0.017	0.43	0.108	2.75	74.75
8×8	0.028	0.71	0.097	2.47	60.28
8×8	0.035	0.89	0.090	2.29	51.79
8×8	0.047	1.19	0.078	1.99	39.09
10×10	0.017	0.43	0.083	2.11	69.01
10×10	0.025	0.635	0.075	1.91	56.25
10×10	0.032	0.813	0.068	1.73	46.23
10×10	0.047	1.19	0.053	1.35	28.25
12×12	0.017	0.43	0.066	1.69	63.50
12×12	0.023	0.58	0.060	1.54	52.71
12×12	0.028	0.71	0.055	1.41	44.16
12×12	0.035	0.89	0.048	1.23	33.59
14×14	0.015	0.38	0.056	1.43	62.50
14×14	0.020	0.50	0.052	1.31	52.48
14×14	0.028	0.71	0.043	1.10	37.05
16×16	0.015	0.38	0.048	1.21	57.86
16×16	0.018	0.45	0.045	1.14	51.34
16×16	0.023	0.58	0.040	1.01	40.28
16×16	0.028	0.71	0.035	0.88	30.55
18×18	0.014	0.35	0.042	1.06	56.55
18×18	0.017	0.43	0.039	0.98	48.34
18×18	0.020	0.50	0.036	0.91	41.69
18×18	0.023	0.58	0.033	0.83	34.69
20×20	0.014	0.35	0.036	0.92	52.48
20×20	0.017	0.43	0.033	0.84	43.75
20×20	0.020	0.50	0.030	0.77	36.76
20×20	0.023	0.58	0.027	0.69	29.52

Product Detall

Edge Types

Why Choose Our Products?

	Superior carbon steel and stainless steel wires
	Strict production and quality control procedure
	A wide range of sizes and patterns for your option
	Easy installation and maintenance
	Large stocks for urgent orders
	Large output and timely delivery
