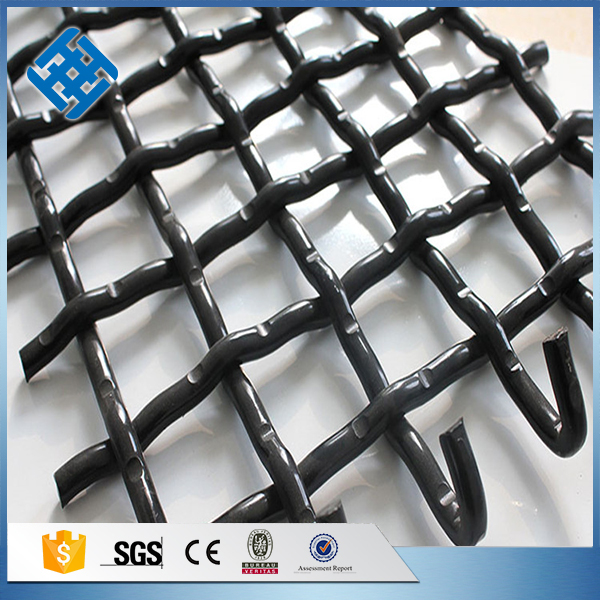

High manganese 65Mn steel wire sand Hooked Vibrating quarry Rock shaker crusher sieve Screen mesh

High manganese 65Mn steel wire sand Hooked Vibrating quarry Rock shaker crusher sieve Screen mesh

Material: black wire, spring steel wire, manganese steel wire
Weave Type: Single intermediate crimp screen, double intermediate crimp screen, lock crimp screen, flat top screen, pressure welded screen.
Type of weaving: Crimped before weave, double-direction,ripples flections, tight lock flections, flattop flections, double-direction flections, list-direction separate ripples flections.
Hole type: square, rectangular and long slot. Surface treatment: galvanized or painted.
Product description: Mine screens are widely used in mining screens, quarry screens, steel screens for crushers, sand screens, aggregate screening, rock crusher screens, vibrating screens, crushers and drum screens, etc.
INQUIRY

Application:

* Mine screen is widely used in the vibrating screens, crushers and trommel screens.

* Mine screen is used as a fence or filter in many industries.

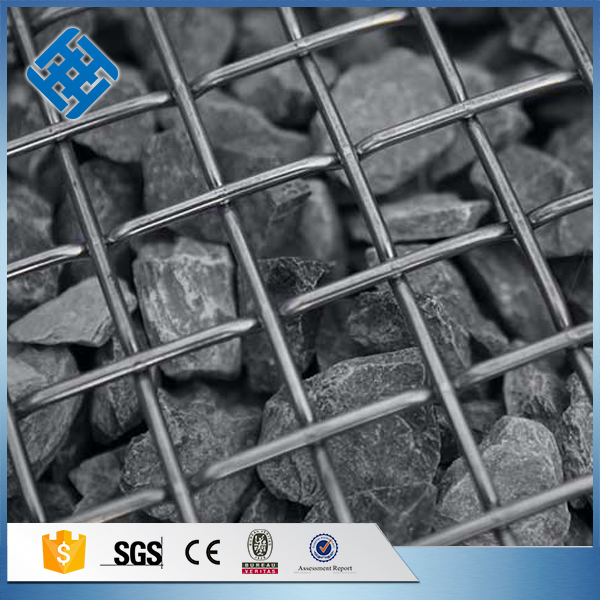

* Woven vibrating screen mesh can be used for screening and separating stones, coal, mining, gravel, sand and any other materials.

Special sizes can be customized according to your requirements

Material:
High tensile screen cloth is commonly used in heavy duty applications for scalping and sizing of rocks,aggregates,limestone,etc. They are weaved in sizes to suite most vibrating screens and available in:
* High Tensile Steel---Abrasion resistance
* Stainless Steel---Corrosion resistance
* Monel,Brass,etc---General applications

Weaving Types

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

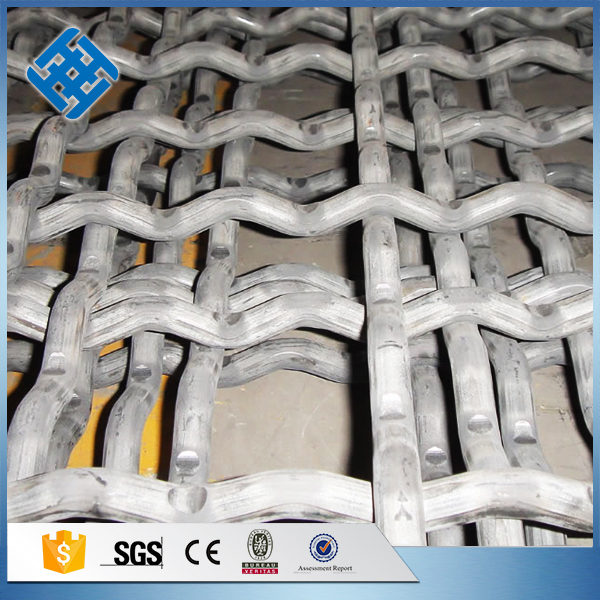

Double Crimp Wire Mesh

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

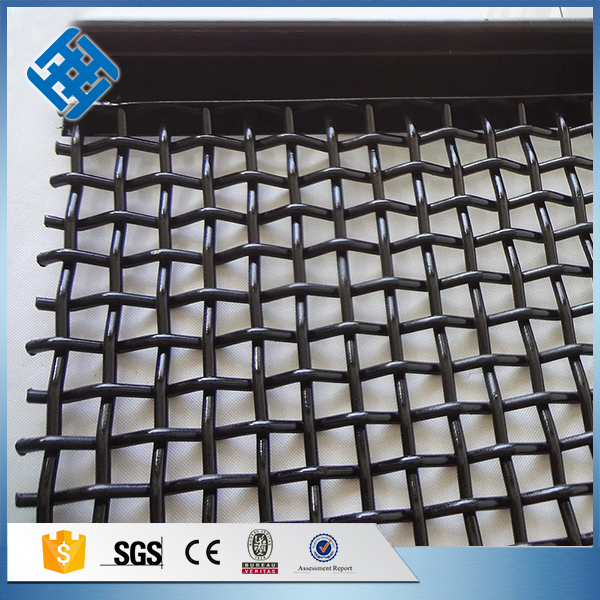

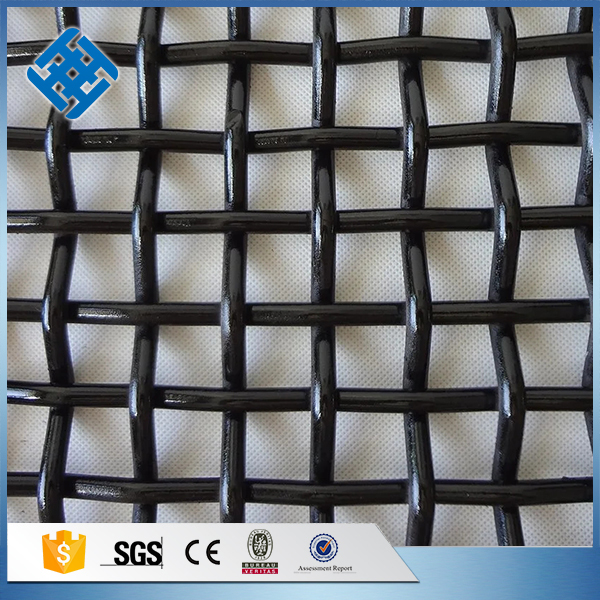

Flat Top Wire Mesh

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

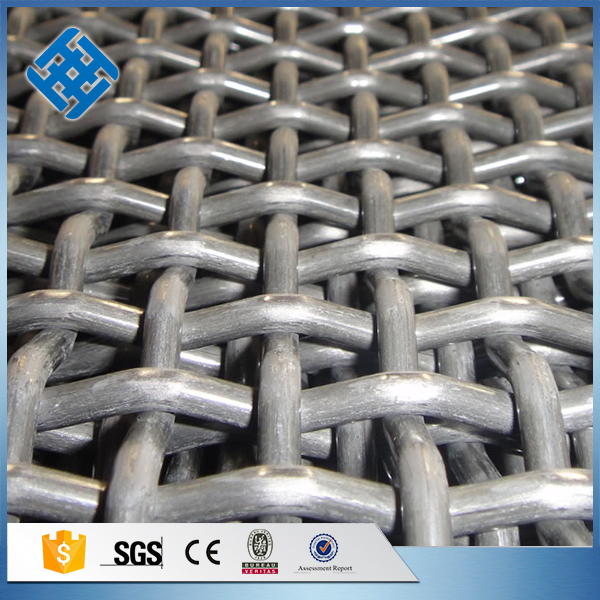

Lock Crimp Wire Mesh

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

Slotted wire mesh

aperture square weave	Medium			Heavy Duty
aperture square weave	Wire Dia	kg/m²	OA%	Wire Dia	kg/m²	OA%
2.00				1.37	7.1	35
3.15	2.00	9.9	37	2.50	14.1	31
4.0	2.50	12.2	38	3.05	16.8	32
5.0	2.50	16.6	44	3.05	14.7	38
5.6	3.05	13.7	41	4.00	21.2	34
6.35	3.05	12.6	46	4.00	19.6	38
6.8	3.05	10.0	44	4.00	19.7	37
7.1	3.05	11.9	48	4.00	18.3	41
8	4.00	16.9	44	5.00	24.4	38
9	4.00	15.6	48	5.00	22.7	44
10	4.00	14.5	51	5.00	21.2	44
11.2	5.00	19.6	48	5.60	28.6	44
12.5	5.00	18.1	51	5.60	20.0	47
14	5.00	20.0	51	6.80	24.6	48
16	5.60	19.5	56	6.80	22.6	51
18	6.80	20.7	55	7.10	25.0	51
20	6.80	19.2	58	7.10	24.0	54
22	7.10	21.5	57	8.00	26.7	54
25	7.10	20.1	60	8.00	24.6	57
28	8.00	19.0	61	9.00	27.8	57
32	9.00	26.0	60	10.00	30.4	58
38	9.00	28.1	64	10.00	27.9	61
40	10.00	25.4	64	11.20	31.1	61
45	10.00	23.4	67	11.20	28.4	64
50	11.20	26.0	67	12.50	31.8	64
56	11.20	28.7	69	12.50	29.0	67
63	11.20	24.5	72	12.50	25.1	70
76.2	11.20	16.0	75	12.50	20.0	73
80	11.20	17.5	72	12.50	21.5	75
90	11.20	15.7	79	12.70	19.4	77
100	11.20	14.3	81	12.70	17.6	79

Carbon Steel Parameter

N0	Grade	Chemical Composition%
N0	Grade	C	Si	Mn
1	45	0.42-0.50	0.17-0.37	0.50-0.80
2	50	0.47-0.55
3	55	0.52-0.60
4	60	0.57-0.65
5	65	0.62-0.70
6	70	0.67-0.75
7	65Mn	0.62-0.70		0.90-1.20
8	72A	0.70-0.75	0.15-0.35	0.30-0.60

Product Detall

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

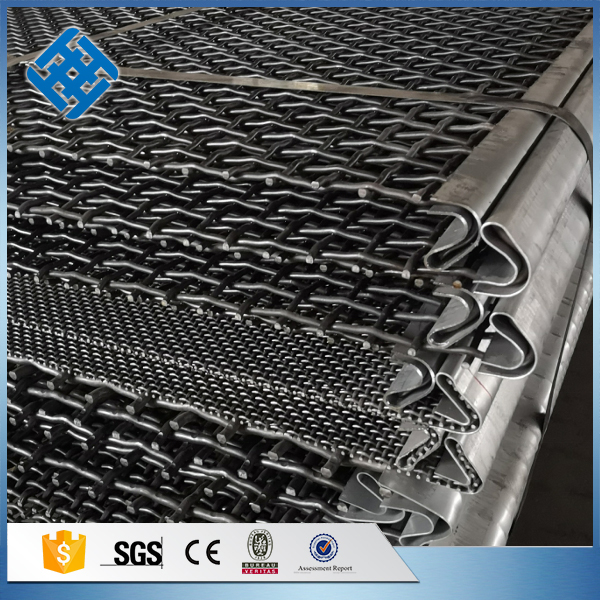

Edge Types

Why Choose Our Products?

	Superior carbon steel and stainless steel wires
	Strict production and quality control procedure
	A wide range of sizes and patterns for your option
	Easy installation and maintenance
	Large stocks for urgent orders
	Large output and timely delivery
