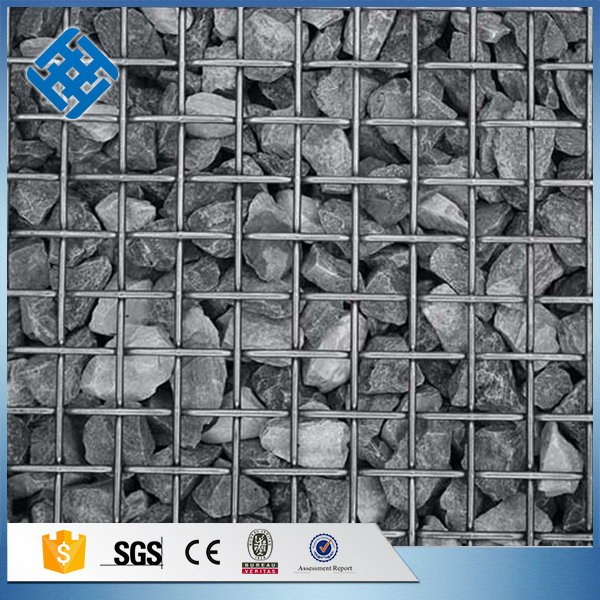

Anti-blocking Screen

vibrating screen parts high carbon steel mine screen anti-blocking screen crushed stone screen

Material: black wire, spring steel wire, manganese steel wire
Weave Type: Single intermediate crimp screen, double intermediate crimp screen, lock crimp screen, flat top screen, pressure welded screen.
Type of weaving: Crimped before weave, double-direction,ripples flections, tight lock flections, flattop flections, double-direction flections, list-direction separate ripples flections.
Hole type: square, rectangular and long slot. Surface treatment: galvanized or painted.
Product description: Woven wire screen is also called quarry/mining screen mesh, screening media, which is widely used in vibrating, scalping and sizing materials of rock, stone, asphalt,quarry,aggregate, limestone, grain
INQUIRY

Woven wire vibrating screen mesh is made of spring steel wire and manganese steel wire. The spring steel wire can be divided into high carbon steel wire and medium steel wire. The commonly used material of manganese steel wire is 65 Mn. Manganese steel vibrating screen mesh has better wear resistance than other materials. Even if the surface is strong impacted and abraded, the interior remains high plasticity and toughness. When the old surface is worn and torn, it will form a new wear-resistant layer.

Compared with woven wire filter cloth, the woven wire vibrating screen mesh has coarse wire diameter and large opening size. The vibrating screen also plays the filter roles for the sands, stones.

Features:
High tensile strength
Light weight
Highly resistant to abrasions and wear & tear
Portability
Rigid construction
Resistance against corrosion
Ability to withstand extreme temperature

Application:

* Mine screen is widely used in the vibrating screens, crushers and trommel screens.

* Mine screen is used as a fence or filter in many industries.
* Woven vibrating screen mesh can be used for screening and separating stones, coal, mining, gravel, sand and any other materials.

Special sizes can be customized according to your requirements

Material:
High tensile screen cloth is commonly used in heavy duty applications for scalping and sizing of rocks,aggregates,limestone,etc. They are weaved in sizes to suite most vibrating screens and available in:
* High Tensile Steel---Abrasion resistance
* Stainless Steel---Corrosion resistance
* Monel,Brass,etc---General applications

Weaving Types

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

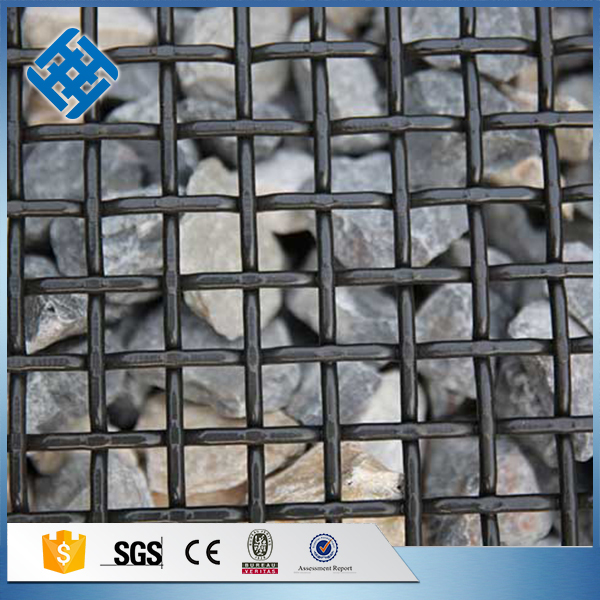

Double Crimp Wire Mesh

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

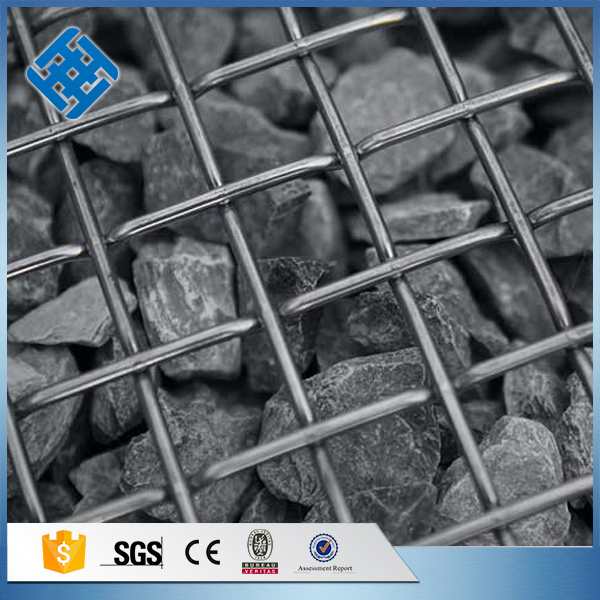

Flat Top Wire Mesh

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

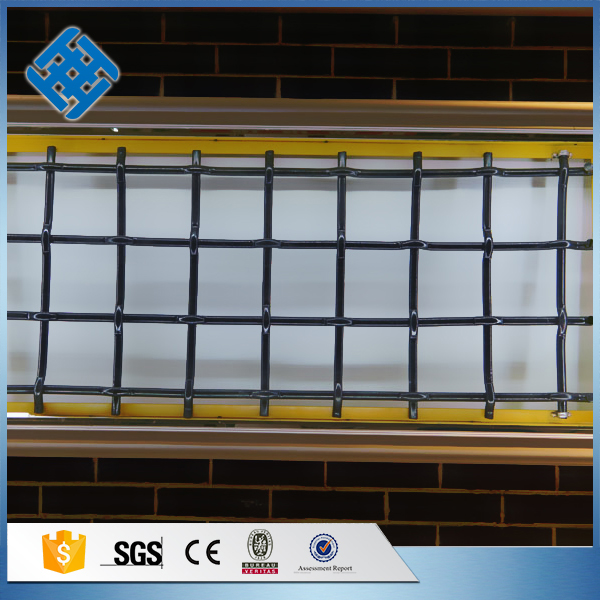

Lock Crimp Wire Mesh

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

Slotted wire mesh

aperture square weave	Medium			Heavy Duty
aperture square weave	Wire Dia	kg/m²	OA%	Wire Dia	kg/m²	OA%
2.00				1.37	7.1	35
3.15	2.00	9.9	37	2.50	14.1	31
4.0	2.50	12.2	38	3.05	16.8	32
5.0	2.50	16.6	44	3.05	14.7	38
5.6	3.05	13.7	41	4.00	21.2	34
6.35	3.05	12.6	46	4.00	19.6	38
6.8	3.05	10.0	44	4.00	19.7	37
7.1	3.05	11.9	48	4.00	18.3	41
8	4.00	16.9	44	5.00	24.4	38
9	4.00	15.6	48	5.00	22.7	44
10	4.00	14.5	51	5.00	21.2	44
11.2	5.00	19.6	48	5.60	28.6	44
12.5	5.00	18.1	51	5.60	20.0	47
14	5.00	20.0	51	6.80	24.6	48
16	5.60	19.5	56	6.80	22.6	51
18	6.80	20.7	55	7.10	25.0	51
20	6.80	19.2	58	7.10	24.0	54
22	7.10	21.5	57	8.00	26.7	54
25	7.10	20.1	60	8.00	24.6	57
28	8.00	19.0	61	9.00	27.8	57
32	9.00	26.0	60	10.00	30.4	58
38	9.00	28.1	64	10.00	27.9	61
40	10.00	25.4	64	11.20	31.1	61
45	10.00	23.4	67	11.20	28.4	64
50	11.20	26.0	67	12.50	31.8	64
56	11.20	28.7	69	12.50	29.0	67
63	11.20	24.5	72	12.50	25.1	70
76.2	11.20	16.0	75	12.50	20.0	73
80	11.20	17.5	72	12.50	21.5	75
90	11.20	15.7	79	12.70	19.4	77
100	11.20	14.3	81	12.70	17.6	79

Carbon Steel Parameter

N0	Grade	Chemical Composition%
N0	Grade	C	Si	Mn
1	45	0.42-0.50	0.17-0.37	0.50-0.80
2	50	0.47-0.55
3	55	0.52-0.60
4	60	0.57-0.65
5	65	0.62-0.70
6	70	0.67-0.75
7	65Mn	0.62-0.70		0.90-1.20
8	72A	0.70-0.75	0.15-0.35	0.30-0.60

Product Detall

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

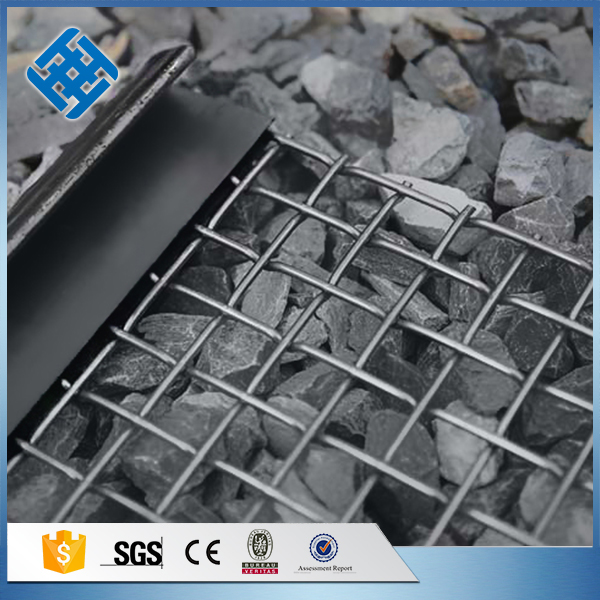

Edge Types

Application

Our mining screens are widely used in quarries for primary screening.

Our mining screens are widely used in mines for mineral processing.

Our mining screens are widely used in asphalt mixers to scalp lump asphalt mater

Our mining screens are widely used in coal mines for coal processing.

Our mining screens are widely used in sand factories for fine sand screening.

Our mining screens are widely used in asphalt mixers

to scalp lump asphalt mater

Applications

Waste management
Water treatment industry
Mines & quarry
Coal mines
Foundries
Heat treatment
Metallurgy industry
Ceramic industry
Cement industry
Construction industry
Food processing industry
Agriculture industry

Why Choose Our Products?

	Superior carbon steel and stainless steel wires
	Strict production and quality control procedure
	A wide range of sizes and patterns for your option
	Easy installation and maintenance
	Large stocks for urgent orders
	Large output and timely delivery
