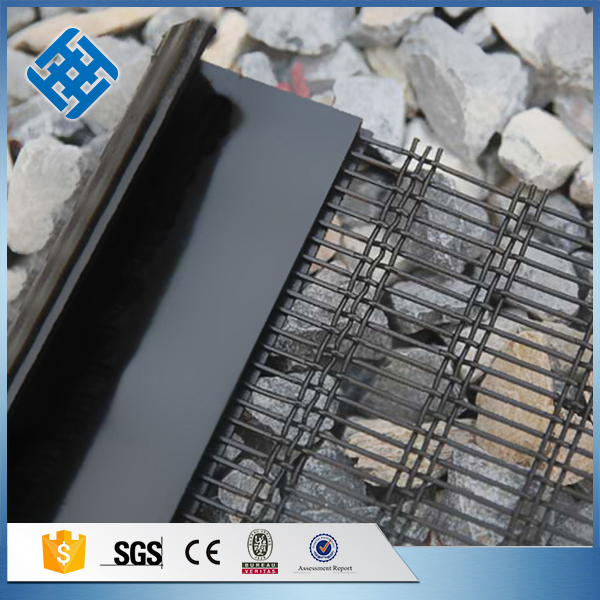

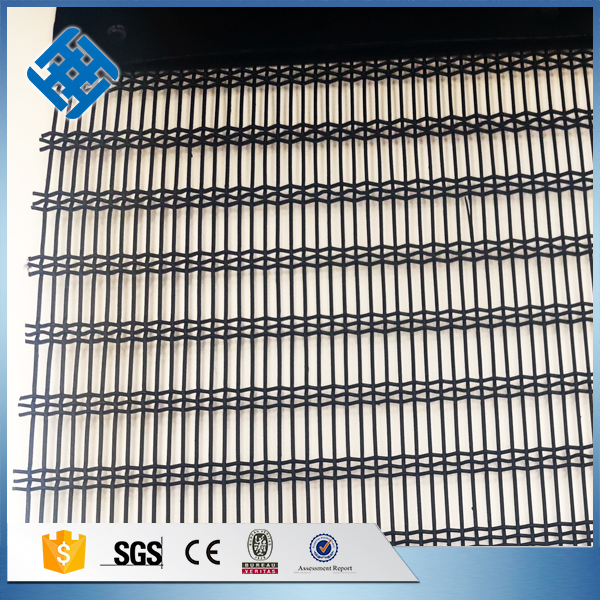

Anti-blocking Screen

Woven Wire Vibrating Screen Mesh for Crusher and Quarry Screens

Woven Wire Vibrating Screen Mesh for Crusher and Quarry Screens

Material: black wire, spring steel wire, manganese steel wire
Weave Type: Single intermediate crimp screen, double intermediate crimp screen, lock crimp screen, flat top screen, pressure welded screen.
Type of weaving: Crimped before weave, double-direction,ripples flections, tight lock flections, flattop flections, double-direction flections, list-direction separate ripples flections.
Hole type: square, rectangular and long slot. Surface treatment: galvanized or painted.
Product description: the woven wire vibrating screen mesh has coarse wire diameter and large opening size. The vibrating screen also plays the filter roles for the sands, stones.
INQUIRY

the woven wire vibrating screen mesh can classify materials according to different output sizes, which satisfies customers’ requirements. With advantages of original design, convenient operation, big exciting force and high efficiency, this machine has been a practical and popular product.

Compared with woven wire filter cloth, the woven wire vibrating screen mesh has coarse wire diameter and large opening size. The vibrating screen also plays the filter roles for the sands, stones.

Material:
High tensile screen cloth is commonly used in heavy duty applications for scalping and sizing of rocks,aggregates,limestone,etc. They are weaved in sizes to suite most vibrating screens and available in:
* High Tensile Steel---Abrasion resistance
* Stainless Steel---Corrosion resistance
* Monel,Brass,etc---General applications

vibration screen mesh ,stone screen mesh wire Mesh is made of carbon iron wire, galvanized steel wire or stainless steel wire. Weaving Patterns: Weaving after crimping.
General Use: Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.
Weaving : weave after crimp, plain crimp ,single Intermediate crimp, double
intermediate crimp , lock crimp mesh , flat top crimp
haotong factory produce vibration screen mesh stone crusher screen mesh .

Weaving Types

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

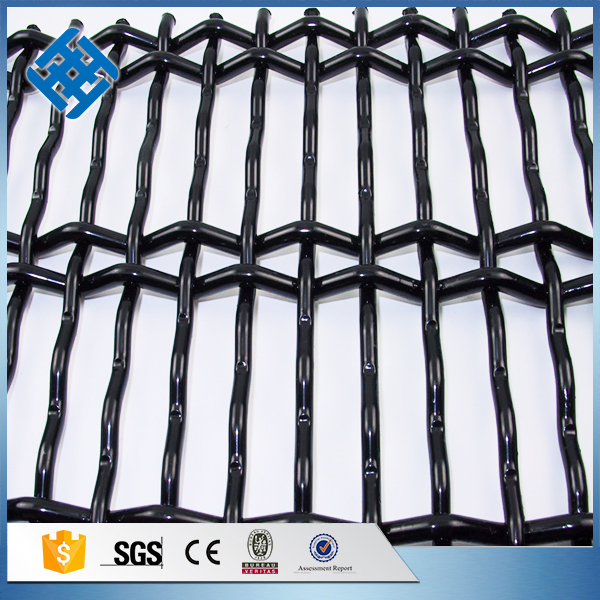

Double Crimp Wire Mesh

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

Flat Top Wire Mesh

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

Lock Crimp Wire Mesh

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

Slotted wire mesh

aperture square weave	Medium			Heavy Duty
aperture square weave	Wire Dia	kg/m²	OA%	Wire Dia	kg/m²	OA%
2.00				1.37	7.1	35
3.15	2.00	9.9	37	2.50	14.1	31
4.0	2.50	12.2	38	3.05	16.8	32
5.0	2.50	16.6	44	3.05	14.7	38
5.6	3.05	13.7	41	4.00	21.2	34
6.35	3.05	12.6	46	4.00	19.6	38
6.8	3.05	10.0	44	4.00	19.7	37
7.1	3.05	11.9	48	4.00	18.3	41
8	4.00	16.9	44	5.00	24.4	38
9	4.00	15.6	48	5.00	22.7	44
10	4.00	14.5	51	5.00	21.2	44
11.2	5.00	19.6	48	5.60	28.6	44
12.5	5.00	18.1	51	5.60	20.0	47
14	5.00	20.0	51	6.80	24.6	48
16	5.60	19.5	56	6.80	22.6	51
18	6.80	20.7	55	7.10	25.0	51
20	6.80	19.2	58	7.10	24.0	54
22	7.10	21.5	57	8.00	26.7	54
25	7.10	20.1	60	8.00	24.6	57
28	8.00	19.0	61	9.00	27.8	57
32	9.00	26.0	60	10.00	30.4	58
38	9.00	28.1	64	10.00	27.9	61
40	10.00	25.4	64	11.20	31.1	61
45	10.00	23.4	67	11.20	28.4	64
50	11.20	26.0	67	12.50	31.8	64
56	11.20	28.7	69	12.50	29.0	67
63	11.20	24.5	72	12.50	25.1	70
76.2	11.20	16.0	75	12.50	20.0	73
80	11.20	17.5	72	12.50	21.5	75
90	11.20	15.7	79	12.70	19.4	77
100	11.20	14.3	81	12.70	17.6	79

Carbon Steel Parameter

N0	Grade	Chemical Composition%
N0	Grade	C	Si	Mn
1	45	0.42-0.50	0.17-0.37	0.50-0.80
2	50	0.47-0.55
3	55	0.52-0.60
4	60	0.57-0.65
5	65	0.62-0.70
6	70	0.67-0.75
7	65Mn	0.62-0.70		0.90-1.20
8	72A	0.70-0.75	0.15-0.35	0.30-0.60

Product Detall

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

Crusher Wire Mesh can be used in mining, coal, metallurgy industries.

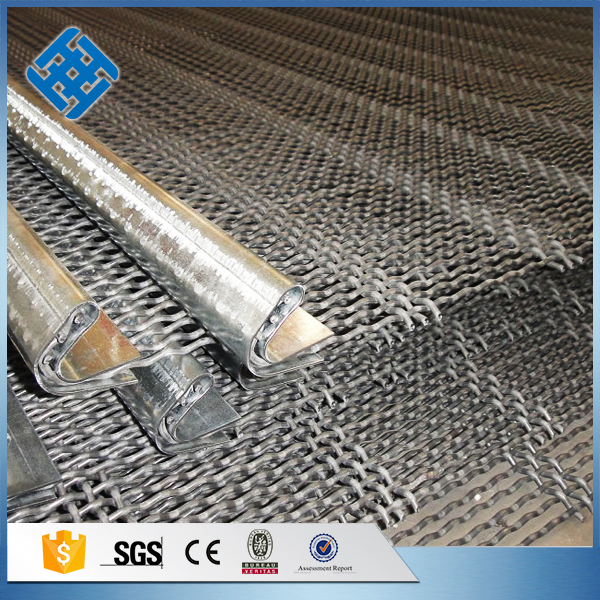

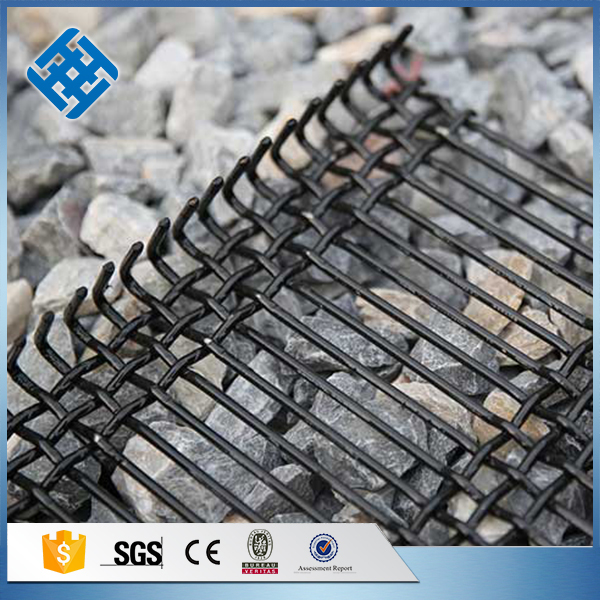

Edge Types

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

Application

Our mining screens are widely used in quarries for primary screening.

Our mining screens are widely used in mines for mineral processing.

Our mining screens are widely used in asphalt mixers to scalp lump asphalt mater

Our mining screens are widely used in coal mines for coal processing.

Our mining screens are widely used in sand factories for fine sand screening.

Our mining screens are widely used in asphalt mixers

to scalp lump asphalt mater

Applications

Crusher Wire Mesh can be used as screen panel in the quarry screen and crusher screen to separate and size the stones, sand, gravel, coal and other materials.
Crusher Wire Mesh is widely used in the mining, coal, metallurgy, chemical and other industries.
Crusher Wire Mesh can be used as screen mesh for the trommel screen to improve the working efficiency and separate lighter and wetter materials in the chemical, coal, construction, plastic, metallurgy, mineral-selecting, agriculture, etc.

Why Choose Our Products?

	Superior carbon steel and stainless steel wires
	Strict production and quality control procedure
	A wide range of sizes and patterns for your option
	Easy installation and maintenance
	Large stocks for urgent orders
	Large output and timely delivery
