Anti-blocking Screen

  • Factory Price For Stainless Steel Stone Crusher Screens
  • Factory Price For Stainless Steel Stone Crusher Screens
  • Factory Price For Stainless Steel Stone Crusher Screens
  • Factory Price For Stainless Steel Stone Crusher Screens
Factory Price For Stainless Steel Stone Crusher ScreensFactory Price For Stainless Steel Stone Crusher ScreensFactory Price For Stainless Steel Stone Crusher ScreensFactory Price For Stainless Steel Stone Crusher Screens

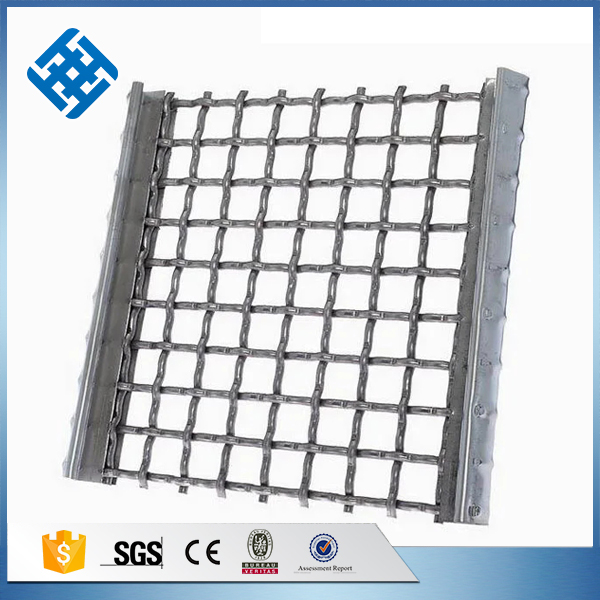

Factory Price For Stainless Steel Stone Crusher Screens

  • Material:SS304,SS304L,SS316,SS316L,and other SS alloy.
  • Wire Gauge : 0.8mm to 16mm size: 1mm to 100mm
  • Weave Type: Single intermediate crimp screen, double intermediate crimp screen, lock crimp screen, flat top screen, pressure welded screen.
  • Hole type: square, rectangle and long slot special size can be customized according to your requirements
  • Product description: Stainless steel mesh screen can be widely used in sand,rock,coal,gavel,metal material screening ,quarry aggregate,mining industries ,road construction industries,asphalt mixing plant and so on.
  • INQUIRY

* Features: heat resistance, acid resistance, alkali resistance, corrosion resistance, wear resistance, wide structure solid

* Property:Beautiful outlook,firm and durable construction, uniform mesh, fine rust-resisting.

* Packing:In rolls, wrapped with waterproof paper then covered with hessian-cloth. Special packing may be arranged if necessary.

* Applications Showing:

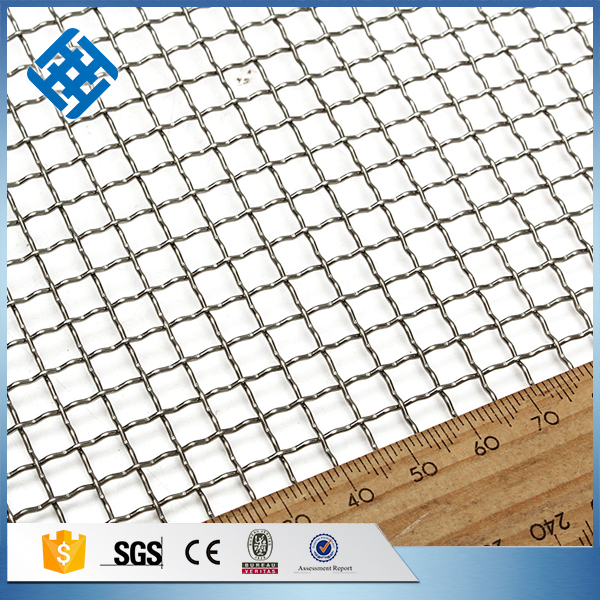

Fine stainless steel cloth screen is widely used in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace,machine making and so on.

Weaving Types

Stainless Steel Stone Crusher Screens, stone crusher screen, mine screen mesh, Quarry mesh

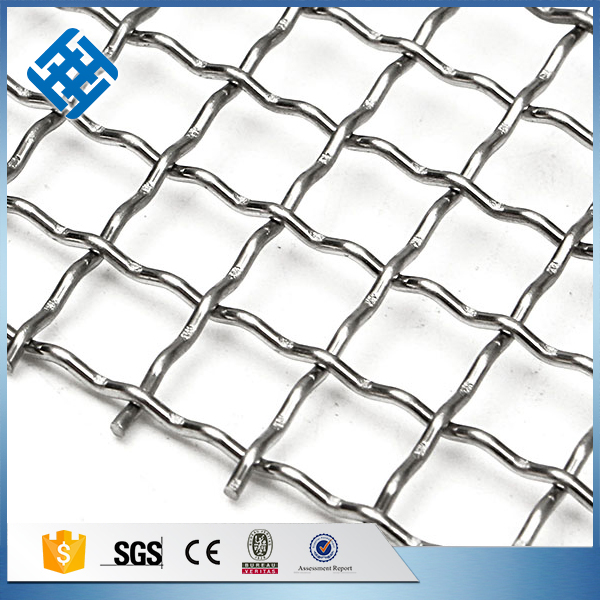

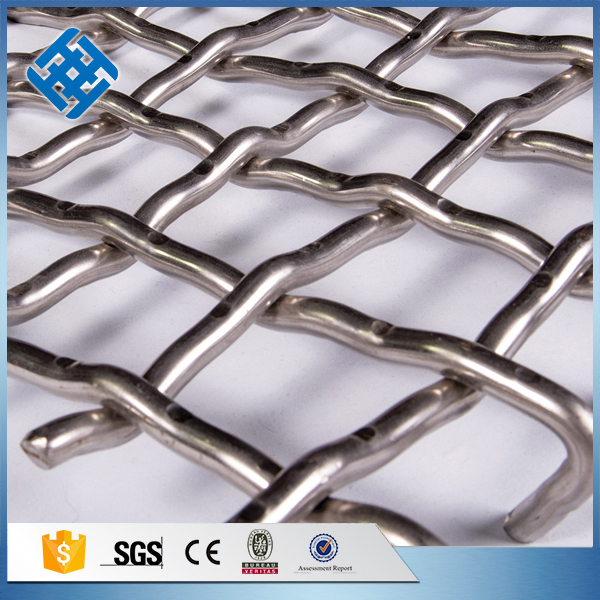

Lock Crimp Wire Mesh

Lock Crimp Mesh is produced by the pre-crimp wire. The warp and Shute wires are both crimped at their points of intersection and ensures that there is no wire movement .then it makes the lock crimp wire cloth very firm


Specification

Mesh Wire Gauge Aperture Percentage of
Opening (%)
inch mm inch mm
2" 0.116 2.94 1.884 47.86 88.76
2" 0.135 3.42 1.865 47.38 86.99
2" 0.159 4.04 1.841 46.76 84.73
2" 0.212 5.38 1.788 45.42 79.94
1 1/2" 0.104 2.64 1.396 35.46 86.62
1 1/2" 0.135 3.42 1.365 34.68 82.85
1 1/2" 0.159 4.04 1.341 34.06 79.92
1×1 0.080 2.03 0.920 23.37 84.65
1×1 0.116 2.94 0.884 22.46 78.19
1×1 0.135 3.42 0.865 21.98 74.88
2×2 0.047 1.19 0.453 11.51 82.14
2×2 0.072 1.83 0.428 10.87 73.26
2×2 0.104 2.64 0.396 10.06 62.75
2×2 0.120 3.05 0.380 9.65 57.74
3×3 0.054 1.37 0.279 7.10 70.26
3×3 0.072 1.83 0.261 6.64 61.44
3×3 0.080 2.03 0.253 6.44 57.80
4×4 0.028 0.71 0.222 5.64 78.89
4×4 0.047 1.19 0.203 5.16 66.03
4×4 0.063 1.60 0.187 4.75 55.96
4×4 0.080 2.03 0.170 4.32 46.28
5×5 0.035 0.89 0.165 4.19 68.03
5×5 0.047 1.19 0.153 3.89 58.64
5×5 0.063 1.60 0.137 3.48 46.93
6×6 0.035 0.89 0.132 3.34 62.37
6×6 0.041 1.04 0.126 3.19 56.90
6×6 0.047 1.19 0.120 3.04 51.68
6×6 0.063 1.60 0.104 2.63 38.69
8×8 0.017 0.43 0.108 2.75 74.75
8×8 0.028 0.71 0.097 2.47 60.28
8×8 0.035 0.89 0.090 2.29 51.79
8×8 0.047 1.19 0.078 1.99 39.09
10×10 0.017 0.43 0.083 2.11 69.01
10×10 0.025 0.635 0.075 1.91 56.25
10×10 0.032 0.813 0.068 1.73 46.23
10×10 0.047 1.19 0.053 1.35 28.25
12×12 0.017 0.43 0.066 1.69 63.50
12×12 0.023 0.58 0.060 1.54 52.71
12×12 0.028 0.71 0.055 1.41 44.16
12×12 0.035 0.89 0.048 1.23 33.59
14×14 0.015 0.38 0.056 1.43 62.50
14×14 0.020 0.50 0.052 1.31 52.48
14×14 0.028 0.71 0.043 1.10 37.05
16×16 0.015 0.38 0.048 1.21 57.86
16×16 0.018 0.45 0.045 1.14 51.34
16×16 0.023 0.58 0.040 1.01 40.28
16×16 0.028 0.71 0.035 0.88 30.55
18×18 0.014 0.35 0.042 1.06 56.55
18×18 0.017 0.43 0.039 0.98 48.34
18×18 0.020 0.50 0.036 0.91 41.69
18×18 0.023 0.58 0.033 0.83 34.69
20×20 0.014 0.35 0.036 0.92 52.48
20×20 0.017 0.43 0.033 0.84 43.75
20×20 0.020 0.50 0.030 0.77 36.76
20×20 0.023 0.58 0.027 0.69 29.52

Product Detall

Stainless Steel Stone Crusher Screens, stone crusher screen, mine screen mesh, Quarry mesh

Edge Types

Stainless Steel Stone Crusher Screens, stone crusher screen, mine screen mesh, Quarry mesh

Why Choose Our Products?

Stainless Steel Stone Crusher Screens, stone crusher screen, mine screen mesh, Quarry mesh
Superior carbon steel and stainless steel wires
Stainless Steel Stone Crusher Screens, stone crusher screen, mine screen mesh, Quarry mesh
Strict production and quality control procedure
Stainless Steel Stone Crusher Screens, stone crusher screen, mine screen mesh, Quarry mesh
A wide range of sizes and patterns for your option
Stainless Steel Stone Crusher Screens, stone crusher screen, mine screen mesh, Quarry mesh
Easy installation and maintenance
Stainless Steel Stone Crusher Screens, stone crusher screen, mine screen mesh, Quarry mesh
Large stocks for urgent orders
Stainless Steel Stone Crusher Screens, stone crusher screen, mine screen mesh, Quarry mesh
Large output and timely delivery
