suppliers of 65Mn sand filter mesh

  • Material: black wire, spring steel wire, manganese steel wire
  • Wire diameter: 0.71mm - 12.5mm. Mesh size: 1mm - 100mm.
  • Weave Type: Single intermediate crimp screen, double intermediate crimp screen, lock crimp screen, flat top screen, pressure welded screen.
  • Hole type: square, rectangular and long slot. Surface treatment: galvanized or painted.
  • Product description: Mainly used as screen mesh, it is widely used in many industries, such as mining screen, quarrying screen, the screen deck, screen wire for stone crusher; Vibrating screen; Road construction equipment
  • INQUIRY

Application:

* Safety grids (e.g. car industry, mechanical engineering, building industry)
* Filling elements for gates and fences in buildings and gardens
* Booth construction
* Plant breeding
* Pigeon barriers
* Noise protection

Material:

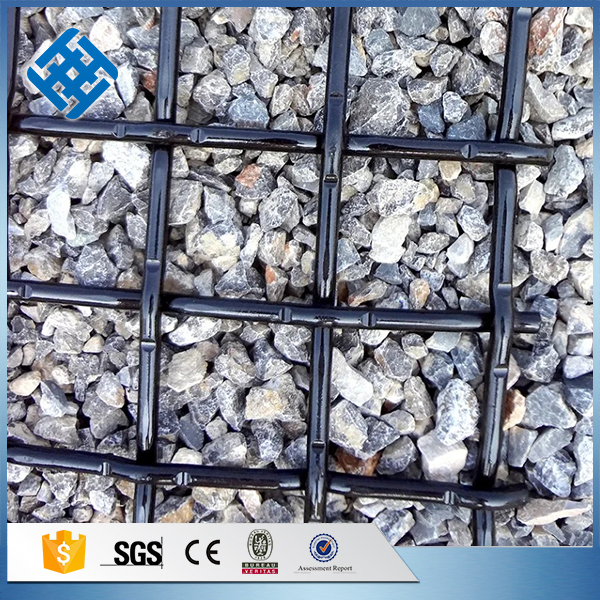

High tensile screen cloth is commonly used in heavy duty applications for scalping and sizing of rocks,aggregates,limestone,etc. They are weaved in sizes to suite most vibrating screens and available in:
* High Tensile Steel---Abrasion resistance
* Stainless Steel---Corrosion resistance
* Monel,Brass,etc---General applications


Special sizes can be customized according to your requirements

Weaving Types

Double crimp screen Double Crimp Vibrating Screens Crimp Screen double crimped wire mesh Double Crimp Woven Screen Double intermediate crimp screendouble crimped screen mesh Double Crimp Screenchina double crimp screen

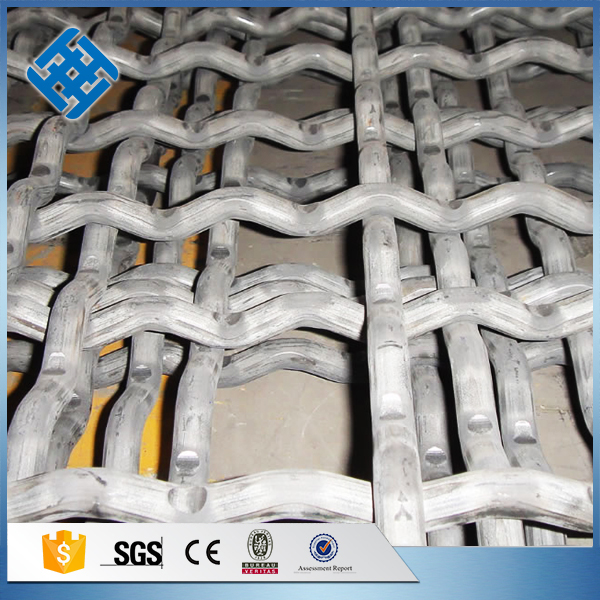

Lock Crimp Wire Mesh


produced by weaving previously crimped wires into one another. The mesh width and wire diameter determine the number of crimps within a mesh width. In some cases it is possible to produce grids with identical mesh width and differing numbers of crimps. The number of crimps set by us guarantees the highest possible mesh stability.


Specification

aperture
square
weave
Medium Heavy Duty
Wire
Dia
kg/m² OA%

Wire
Dia

kg/m² OA%
2.00 1.37 7.1 35
3.15 2.00 9.9 37 2.50 14.1 31
4.0 2.50 12.2 38 3.05 16.8 32
5.0 2.50 16.6 44 3.05 14.7 38
5.6 3.05 13.7 41 4.00 21.2 34
6.35 3.05 12.6 46 4.00 19.6 38
6.8 3.05 10.0 44 4.00 19.7 37
7.1 3.05 11.9 48 4.00 18.3 41
8 4.00 16.9 44 5.00 24.4 38
9 4.00 15.6 48 5.00 22.7 44
10 4.00 14.5 51 5.00 21.2 44
11.2 5.00 19.6 48 5.60 28.6 44
12.5 5.00 18.1 51 5.60 20.0 47

14

5.00 20.0 51 6.80 24.6 48

16

5.60 19.5 56 6.80 22.6 51
18 6.80 20.7 55 7.10 25.0 51
20 6.80 19.2 58 7.10 24.0 54
22 7.10 21.5 57 8.00 26.7 54
25 7.10 20.1 60 8.00 24.6 57
28 8.00 19.0 61 9.00 27.8 57
32 9.00 26.0 60 10.00 30.4 58
38 9.00 28.1 64 10.00 27.9 61
40 10.00 25.4 64 11.20 31.1 61
45 10.00 23.4 67 11.20 28.4 64
50 11.20 26.0 67 12.50 31.8 64
56 11.20 28.7 69 12.50 29.0 67
63 11.20 24.5 72 12.50 25.1 70
76.2 11.20 16.0 75 12.50 20.0 73
80 11.20 17.5 72 12.50 21.5 75
90 11.20 15.7 79 12.70 19.4 77
100 11.20 14.3 81 12.70 17.6 79

Carbon Steel Parameter

N0 Grade
Chemical Composition%
C Si Mn
1 45 0.42-0.50 0.17-0.37 0.50-0.80
2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60

Product Detall

Flat Top Screen

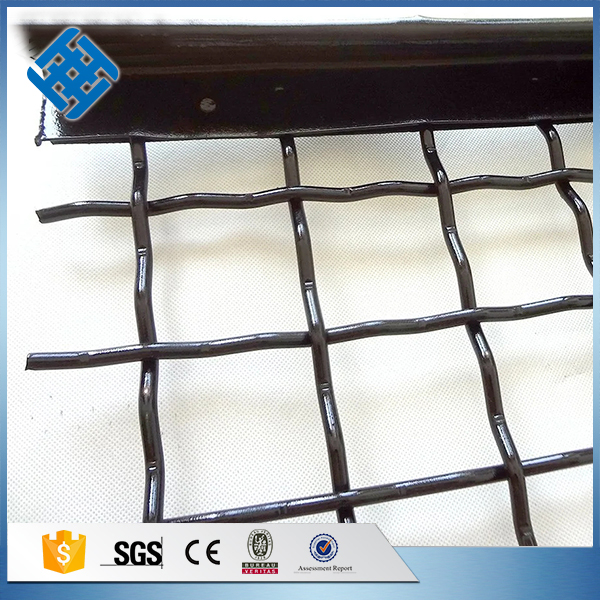

Edge Types

Double crimp screen Double Crimp Vibrating Screens Crimp Screen double crimped wire mesh Double Crimp Woven Screen Double intermediate crimp screendouble crimped screen mesh Double Crimp Screenchina double crimp screen

Why Choose Our Products?


Superior carbon steel and stainless steel wires

Strict production and quality control procedure

A wide range of sizes and patterns for your option

Easy installation and maintenance

Large stocks for urgent orders

Large output and timely delivery
