Anti-blocking Screen

Manganese Steel Screen

Material: black wire, spring steel wire, manganese steel wire
Wire diameter: 0.71mm - 12.5mm. Mesh size: 1mm - 100mm.
Type of weaving: Crimped before weave, double-direction,ripples flections, tight lock flections, flattop flections, double-direction flections, list-direction separate ripples flections.
Hole type: square, rectangular and long slot. Surface treatment: galvanized or painted.
Product description: crimped wires instead of straight wires, which gives it more rigidity and allows the material to turn and rotate on its surface.
INQUIRY

Application:

* Rectangular Screen is widely used in the vibrating screens, crushers and trommel screens.

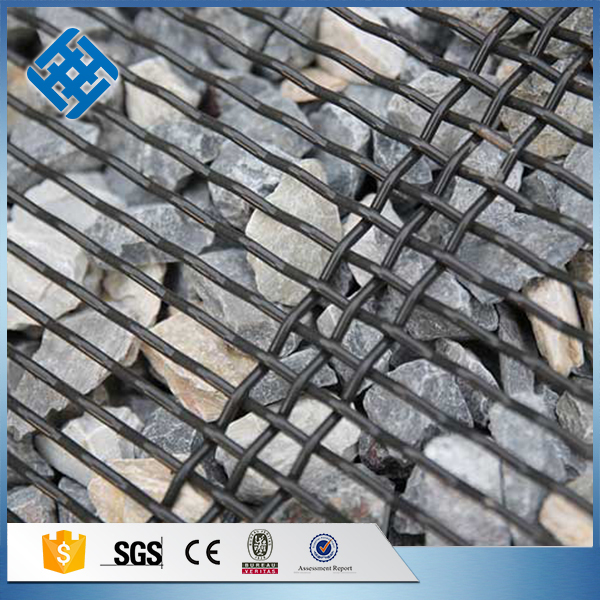

* Woven vibrating screen mesh can be used for screening and separating stones, coal, mining, gravel, sand and any other materials.

Special sizes can be customized according to your requirements

Material:
High tensile screen cloth is commonly used in heavy duty applications for scalping and sizing of rocks,aggregates,limestone,etc. They are weaved in sizes to suite most vibrating screens and available in:
* High Tensile Steel---Abrasion resistance
* Stainless Steel---Corrosion resistance
* Monel,Brass,etc---General applications

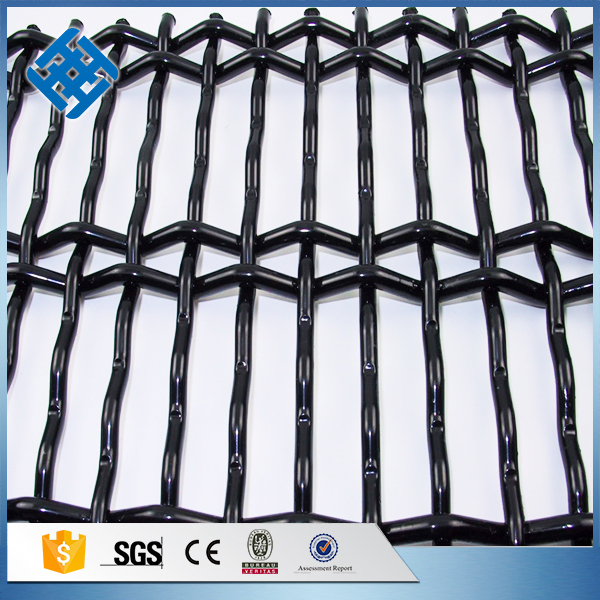

Weaving Types

High Carbon Steel Rectangular wire mesh

crimped wires instead of straight wires, which gives it more rigidity and allows the material to turn and rotate on its surface.

aperture square weave	Medium			Heavy Duty
aperture square weave	Wire Dia	kg/m²	OA%	Wire Dia	kg/m²	OA%
2.00				1.37	7.1	35
3.15	2.00	9.9	37	2.50	14.1	31
4.0	2.50	12.2	38	3.05	16.8	32
5.0	2.50	16.6	44	3.05	14.7	38
5.6	3.05	13.7	41	4.00	21.2	34
6.35	3.05	12.6	46	4.00	19.6	38
6.8	3.05	10.0	44	4.00	19.7	37
7.1	3.05	11.9	48	4.00	18.3	41
8	4.00	16.9	44	5.00	24.4	38
9	4.00	15.6	48	5.00	22.7	44
10	4.00	14.5	51	5.00	21.2	44
11.2	5.00	19.6	48	5.60	28.6	44
12.5	5.00	18.1	51	5.60	20.0	47
14	5.00	20.0	51	6.80	24.6	48
16	5.60	19.5	56	6.80	22.6	51
18	6.80	20.7	55	7.10	25.0	51
20	6.80	19.2	58	7.10	24.0	54
22	7.10	21.5	57	8.00	26.7	54
25	7.10	20.1	60	8.00	24.6	57
28	8.00	19.0	61	9.00	27.8	57
32	9.00	26.0	60	10.00	30.4	58
38	9.00	28.1	64	10.00	27.9	61
40	10.00	25.4	64	11.20	31.1	61
45	10.00	23.4	67	11.20	28.4	64
50	11.20	26.0	67	12.50	31.8	64
56	11.20	28.7	69	12.50	29.0	67
63	11.20	24.5	72	12.50	25.1	70
76.2	11.20	16.0	75	12.50	20.0	73
80	11.20	17.5	72	12.50	21.5	75
90	11.20	15.7	79	12.70	19.4	77
100	11.20	14.3	81	12.70	17.6	79

Carbon Steel Parameter

N0	Grade	Chemical Composition%
N0	Grade	C	Si	Mn
1	45	0.42-0.50	0.17-0.37	0.50-0.80
2	50	0.47-0.55
3	55	0.52-0.60
4	60	0.57-0.65
5	65	0.62-0.70
6	70	0.67-0.75
7	65Mn	0.62-0.70		0.90-1.20
8	72A	0.70-0.75	0.15-0.35	0.30-0.60

Product Detall

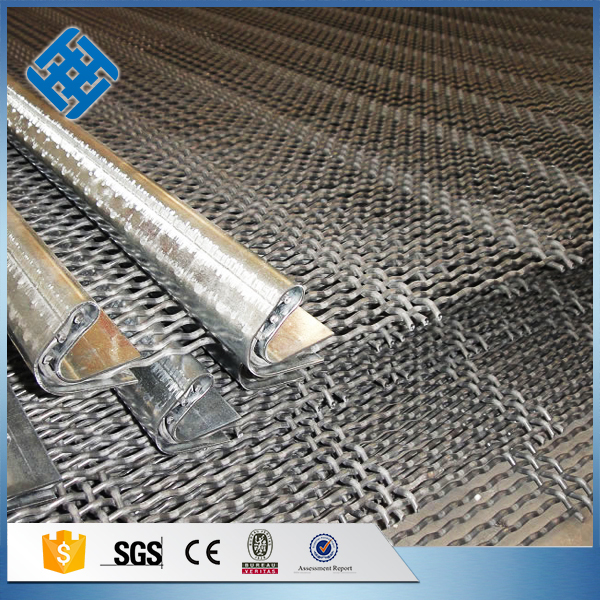

Edge Types

Why Choose Our Products?

	Superior carbon steel and stainless steel wires
	Strict production and quality control procedure
	A wide range of sizes and patterns for your option
	Easy installation and maintenance
	Large stocks for urgent orders
	Large output and timely delivery
