Anti-blocking Screen

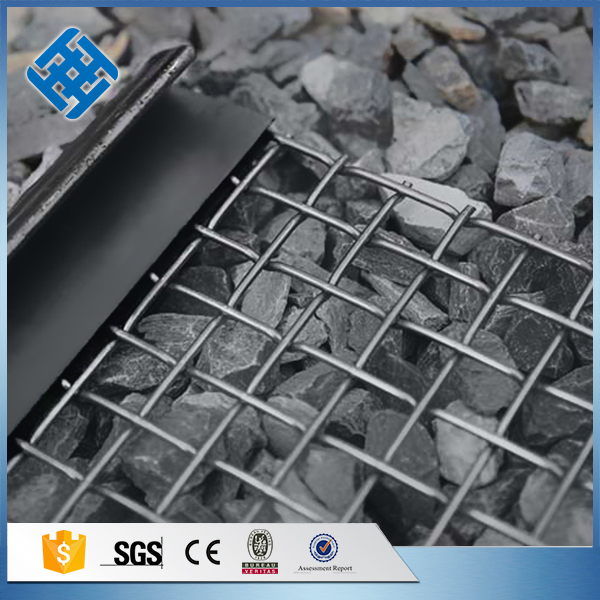

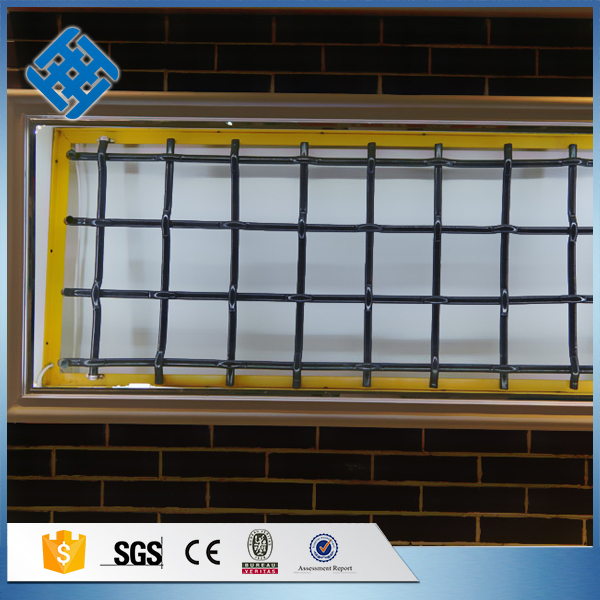

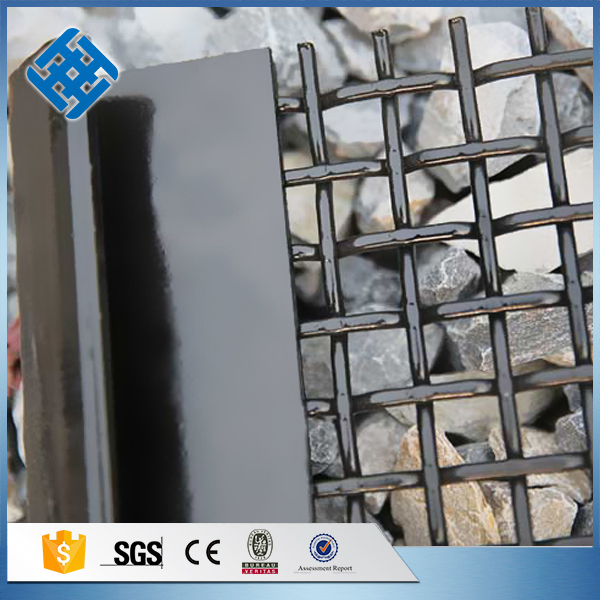

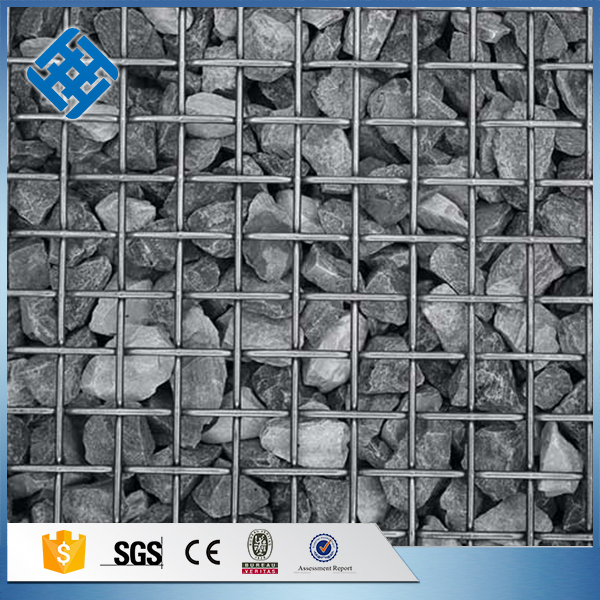

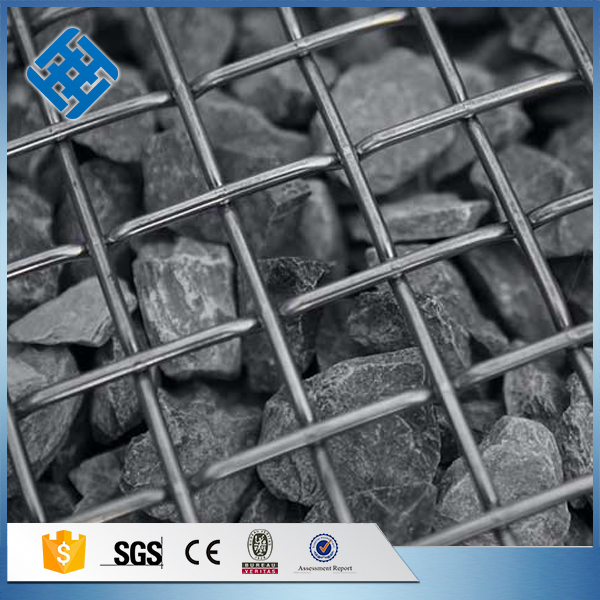

High carbon steel crusher screen

Material: black wire, spring steel wire, manganese steel wire
Weaving type: Plain weave. Pre-crimped. Flat top. Intermediate crimped. Lock crimped
Wire diameter: 0.71mm - 12.5mm. Mesh size: 1mm - 100mm.
Hole type: square, rectangular and long slot. Surface treatment: galvanized or painted.
Product description: Mainly used as screen mesh, it is widely used in many industries, such as mining screen, quarrying screen, the screen deck, screen wire for stone crusher; Vibrating screen;
INQUIRY

Specification:
Width of the grid: up to 2.200 mm
Length of the grid: up to 5.000 mm or in roll form up to 50 m
Dimensional tolerances in length and width: -0 mm /+1 mesh width (customary)
On request fixed measures with tolerances of +/-2 mm in length and width

Special sizes can be customized according to your requirements

Material:
High tensile screen cloth is commonly used in heavy duty applications for scalping and sizing of rocks,aggregates,limestone,etc. They are weaved in sizes to suite most vibrating screens and available in:
* High Tensile Steel---Abrasion resistance
* Stainless Steel---Corrosion resistance
* Monel,Brass,etc---General applications

Weaving Types

High carbon steel crusher screen,Vibration crimping wire mesh,Steel screen for crusher

Flat Top Wire Mesh

Flat top wire mesh is manufactured with wires crimped on one side only to create a flat surface, thus enhancing its durability and allowing bigger apertures with high precision. It is generally used for coarse mineral screening.

Specification

aperture square weave	Medium			Heavy Duty
aperture square weave	Wire Dia	kg/m²	OA%	Wire Dia	kg/m²	OA%
2.00				1.37	7.1	35
3.15	2.00	9.9	37	2.50	14.1	31
4.0	2.50	12.2	38	3.05	16.8	32
5.0	2.50	16.6	44	3.05	14.7	38
5.6	3.05	13.7	41	4.00	21.2	34
6.35	3.05	12.6	46	4.00	19.6	38
6.8	3.05	10.0	44	4.00	19.7	37
7.1	3.05	11.9	48	4.00	18.3	41
8	4.00	16.9	44	5.00	24.4	38
9	4.00	15.6	48	5.00	22.7	44
10	4.00	14.5	51	5.00	21.2	44
11.2	5.00	19.6	48	5.60	28.6	44
12.5	5.00	18.1	51	5.60	20.0	47
14	5.00	20.0	51	6.80	24.6	48
16	5.60	19.5	56	6.80	22.6	51
18	6.80	20.7	55	7.10	25.0	51
20	6.80	19.2	58	7.10	24.0	54
22	7.10	21.5	57	8.00	26.7	54
25	7.10	20.1	60	8.00	24.6	57
28	8.00	19.0	61	9.00	27.8	57
32	9.00	26.0	60	10.00	30.4	58
38	9.00	28.1	64	10.00	27.9	61
40	10.00	25.4	64	11.20	31.1	61
45	10.00	23.4	67	11.20	28.4	64
50	11.20	26.0	67	12.50	31.8	64
56	11.20	28.7	69	12.50	29.0	67
63	11.20	24.5	72	12.50	25.1	70
76.2	11.20	16.0	75	12.50	20.0	73
80	11.20	17.5	72	12.50	21.5	75
90	11.20	15.7	79	12.70	19.4	77
100	11.20	14.3	81	12.70	17.6	79

Carbon Steel Parameter

N0	Grade	Chemical Composition%
N0	Grade	C	Si	Mn
1	45	0.42-0.50	0.17-0.37	0.50-0.80
2	50	0.47-0.55
3	55	0.52-0.60
4	60	0.57-0.65
5	65	0.62-0.70
6	70	0.67-0.75
7	65Mn	0.62-0.70		0.90-1.20
8	72A	0.70-0.75	0.15-0.35	0.30-0.60

Product Detall

Edge Types

Why Choose Our Products?

	Superior carbon steel and stainless steel wires
	Strict production and quality control procedure
	A wide range of sizes and patterns for your option
	Easy installation and maintenance
	Large stocks for urgent orders
	Large output and timely delivery
