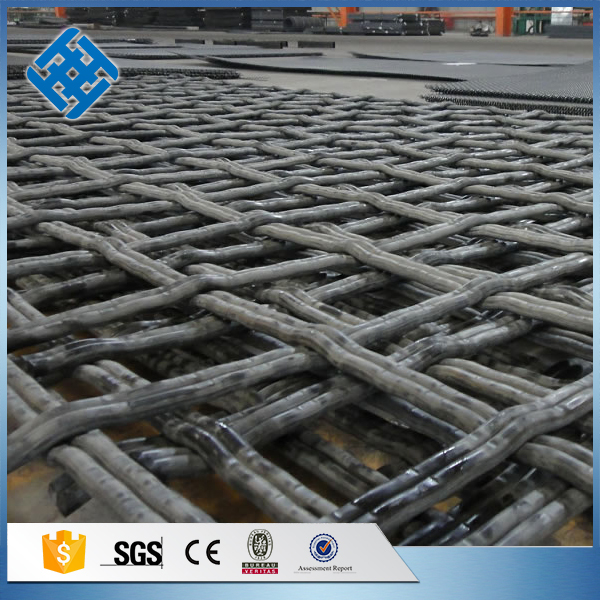

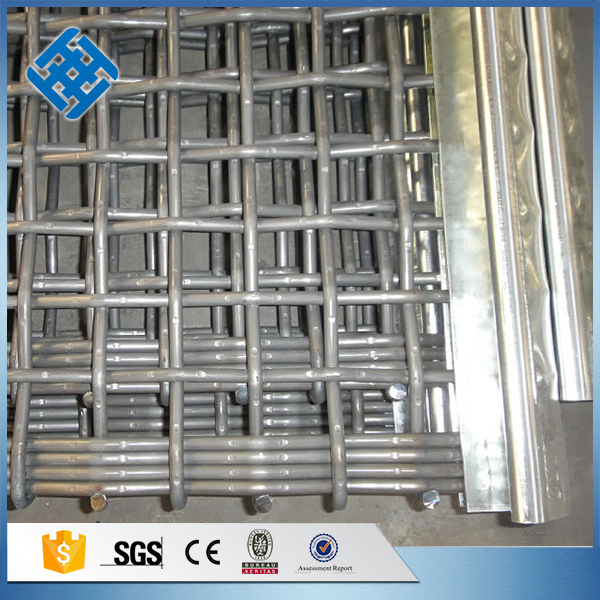

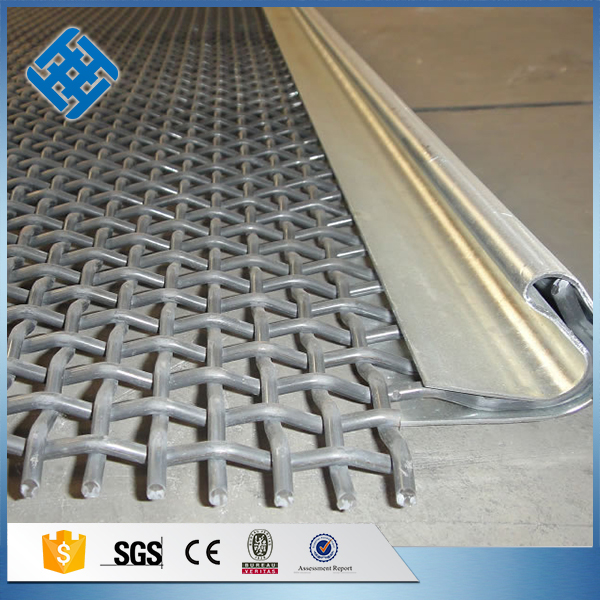

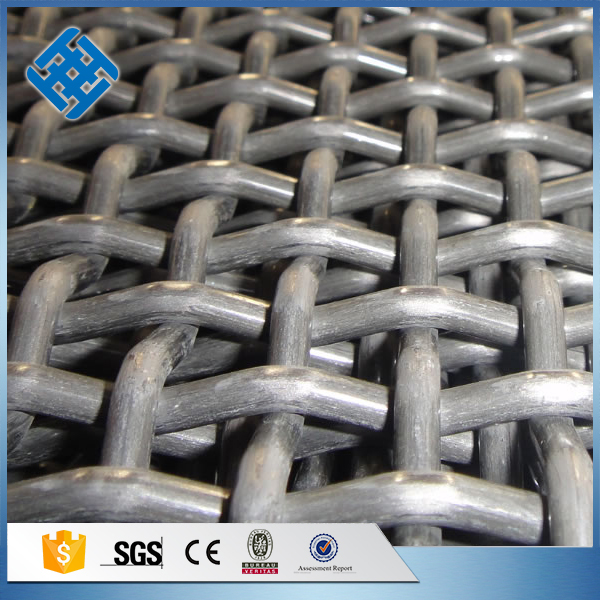

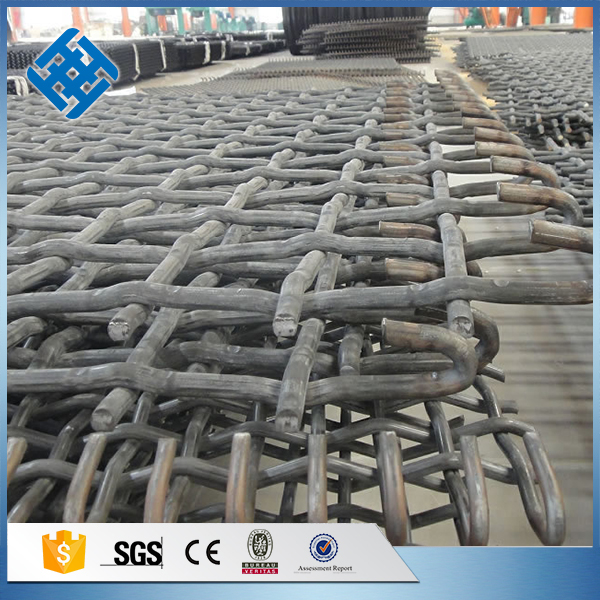

Woven wire vibrating screen is also called quarry screen mesh or stone crusher screen mesh. It is made of spring steel wire (high carbon steel wire, medium carbon steel wire, manganese steel wire) and stainless steel wire. The high-quality raw materials make woven vibrating screen mesh have many features, such as high tensile, wear, temperature and weather resistance and so on. With so many features, the woven vibrating screen mesh is used on vibrating machines in screening and sizing all kinds of sand, gravel, coal, stone, rock and other materials in mining, quarry, aggregate production industries.
Square Opening Screen is a versatile screening media which is easy to install and maintain. Designed to a long wear life and can be economically used in most applications.
Application:
* Mine screen is widely used in the vibrating screens, crushers and trommel screens.
* Mine screen is used as a fence or filter in many industries.
* Woven vibrating screen mesh can be used for screening and separating
stones, coal, mining, gravel, sand and any other materials.
Special sizes can be customized according to your requirements
Material:
High tensile screen cloth is commonly used in heavy duty applications for scalping and sizing of rocks,aggregates,limestone,etc.
They are weaved in sizes to suite most vibrating screens and available in:
* High Tensile Steel---Abrasion resistance
* Stainless Steel---Corrosion resistance
* Monel,Brass,etc---General applications
|
Double Crimp Wire Mesh |
Flat Top Wire Mesh |
|
Lock Crimp Wire Mesh |
Slotted wire mesh |
Efficient screening of materials requires the right weave. Unified Screening & Crushing has one of the largest selections of weave styles available. Our wide selection of weave styles means youʼll find the right design for your screening application:Aggregate production, mineral sizing, grain drying, traveling water screens, power plant applications, livestock flooring and many others. Select from the weaves shown here, or call for information on special fabricated screens.
|
aperture square weave |
Medium | Heavy Duty | ||||
|---|---|---|---|---|---|---|
|
Wire Dia |
kg/m² | OA% |
Wire |
kg/m² | OA% | |
| 2.00 | 1.37 | 7.1 | 35 | |||
| 3.15 | 2.00 | 9.9 | 37 | 2.50 | 14.1 | 31 |
| 4.0 | 2.50 | 12.2 | 38 | 3.05 | 16.8 | 32 |
| 5.0 | 2.50 | 16.6 | 44 | 3.05 | 14.7 | 38 |
| 5.6 | 3.05 | 13.7 | 41 | 4.00 | 21.2 | 34 |
| 6.35 | 3.05 | 12.6 | 46 | 4.00 | 19.6 | 38 |
| 6.8 | 3.05 | 10.0 | 44 | 4.00 | 19.7 | 37 |
| 7.1 | 3.05 | 11.9 | 48 | 4.00 | 18.3 | 41 |
| 8 | 4.00 | 16.9 | 44 | 5.00 | 24.4 | 38 |
| 9 | 4.00 | 15.6 | 48 | 5.00 | 22.7 | 44 |
| 10 | 4.00 | 14.5 | 51 | 5.00 | 21.2 | 44 |
| 11.2 | 5.00 | 19.6 | 48 | 5.60 | 28.6 | 44 |
| 12.5 | 5.00 | 18.1 | 51 | 5.60 | 20.0 | 47 |
|
14 |
5.00 | 20.0 | 51 | 6.80 | 24.6 | 48 |
|
16 |
5.60 | 19.5 | 56 | 6.80 | 22.6 | 51 |
| 18 | 6.80 | 20.7 | 55 | 7.10 | 25.0 | 51 |
| 20 | 6.80 | 19.2 | 58 | 7.10 | 24.0 | 54 |
| 22 | 7.10 | 21.5 | 57 | 8.00 | 26.7 | 54 |
| 25 | 7.10 | 20.1 | 60 | 8.00 | 24.6 | 57 |
| 28 | 8.00 | 19.0 | 61 | 9.00 | 27.8 | 57 |
| 32 | 9.00 | 26.0 | 60 | 10.00 | 30.4 | 58 |
| 38 | 9.00 | 28.1 | 64 | 10.00 | 27.9 | 61 |
| 40 | 10.00 | 25.4 | 64 | 11.20 | 31.1 | 61 |
| 45 | 10.00 | 23.4 | 67 | 11.20 | 28.4 | 64 |
| 50 | 11.20 | 26.0 | 67 | 12.50 | 31.8 | 64 |
| 56 | 11.20 | 28.7 | 69 | 12.50 | 29.0 | 67 |
| 63 | 11.20 | 24.5 | 72 | 12.50 | 25.1 | 70 |
| 76.2 | 11.20 | 16.0 | 75 | 12.50 | 20.0 | 73 |
| 80 | 11.20 | 17.5 | 72 | 12.50 | 21.5 | 75 |
| 90 | 11.20 | 15.7 | 79 | 12.70 | 19.4 | 77 |
| 100 | 11.20 | 14.3 | 81 | 12.70 | 17.6 | 79 |
| N0 |
Grade |
Chemical Composition% | ||
|---|---|---|---|---|
| C | Si | Mn | ||
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 | ||
| 3 | 55 | 0.52-0.60 | ||
| 4 | 60 | 0.57-0.65 | ||
| 5 | 65 | 0.62-0.70 | ||
| 6 | 70 | 0.67-0.75 | ||
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
 |
Superior carbon steel and stainless steel wires |
|
|
Strict production and quality control procedure |
|
|
A wide range of sizes and patterns for your option |
|
|
Easy installation and maintenance |
|
|
Large stocks for urgent orders |
|
|
Large output and timely delivery |
