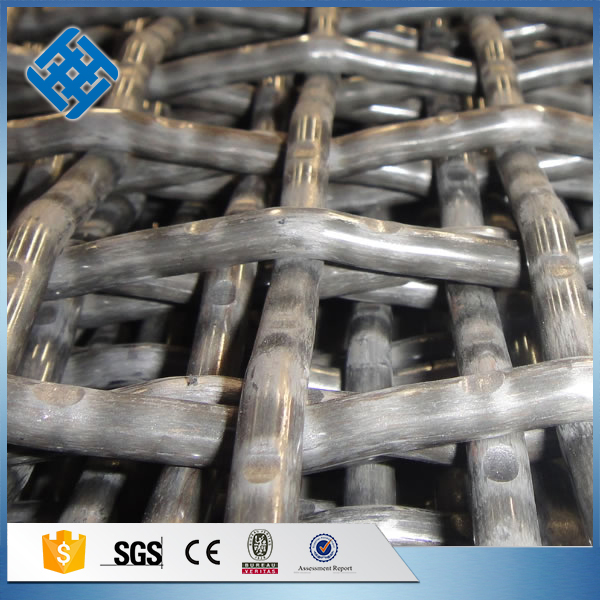

Anti-blocking Screen

High Carbon Steel Woven Screen Mesh

Material: High Tensile Steel Wire or S.S. Wire
Wire Diameter: 1.0-12.5mm Aperture: 2.0-100.0mm
Type of weaving: Crimped before weave, double-direction,ripples flections, tight lock flections, flattop flections, double-direction flections, list-direction separate ripples flections.
Hole type: square, rectangular and long slot. Surface treatment: galvanized or painted.
Product description: High Carbon Steel Woven Screen Mesh, also known as vibrating screens, crusher screens, quarry vibrating screens, quarry screens, etc., have the characteristics of wear resistance, durability and long
INQUIRY

Crusher screen is also called vibrating screen, crusher screen, quarry vibrating screen, quarry screen, etc. It has the advantages of high wear resistance, high frequency and long life. The manganese steel vibrating screen is made of high-strength manganese steel, the most widely used, the most commonly used is 65Mn steel.

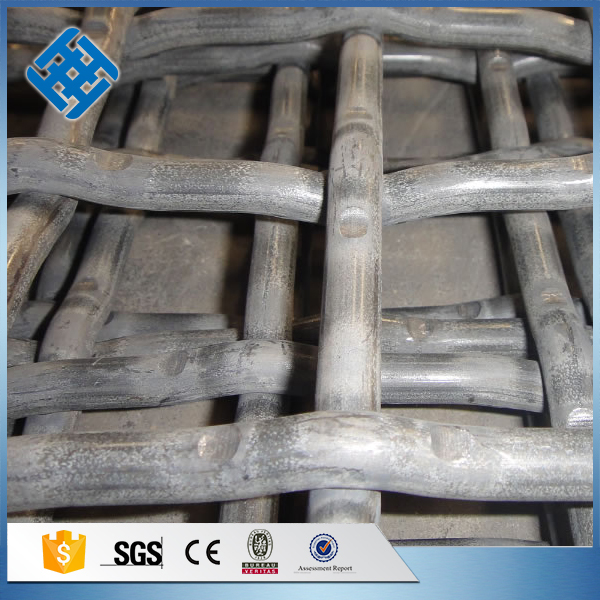

High Carbon Steel Woven Screen Mesh
Efficient screening of materials requires the right weave. Unified Screening & Crushing has one of the largest selections of weave styles available. Our wide selection of weave styles means youʼll find the right design
Square Opening Screen is a versatile screening media which is easy to install and maintain. Designed to a long wear life and can be economically used in most applications.

Square Opening Screen is a versatile screening media which is easy to install and maintain. Designed to a long wear life and can be economically used in most applications.

Application:

* Mine screen is widely used in the vibrating screens, crushers and trommel screens.

* Mine screen is used as a fence or filter in many industries.
* Woven vibrating screen mesh can be used for screening and separating stones, coal, mining, gravel, sand and any other materials.

Special sizes can be customized according to your requirements

Material:
High tensile screen cloth is commonly used in heavy duty applications for scalping and sizing of rocks,aggregates,limestone,etc. They are weaved in sizes to suite most vibrating screens and available in:
* High Tensile Steel---Abrasion resistance
* Stainless Steel---Corrosion resistance
* Monel,Brass,etc---General applications

Weaving Types

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

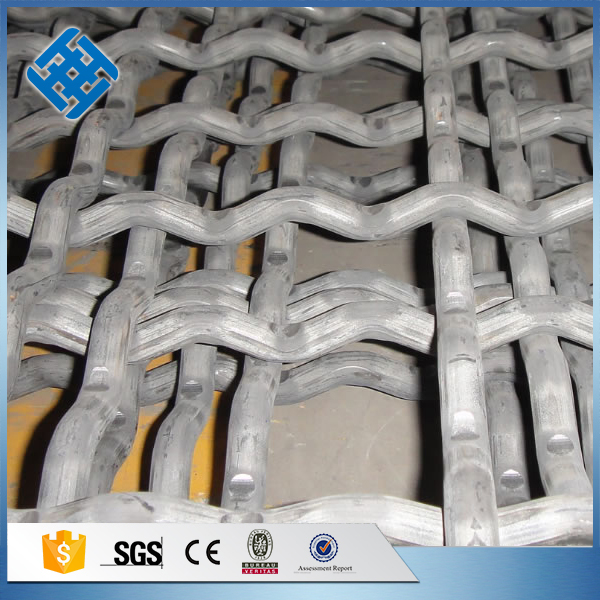

Double Crimp Wire Mesh

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

Flat Top Wire Mesh

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

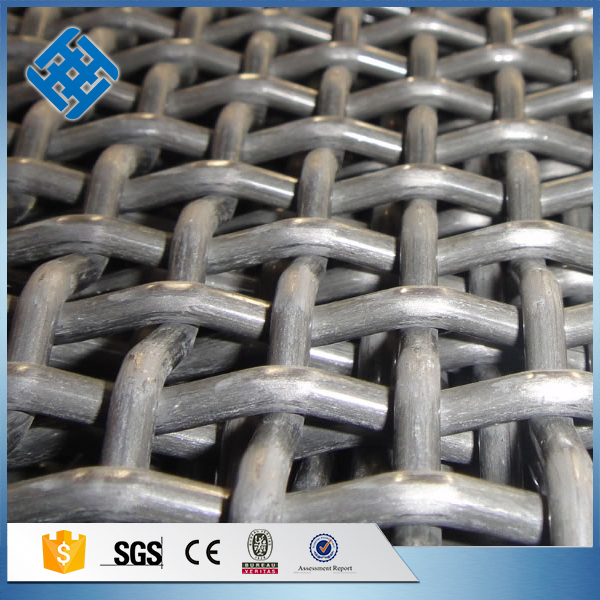

Lock Crimp Wire Mesh

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

Slotted wire mesh

Efficient screening of materials requires the right weave. Unified Screening & Crushing has one of the largest selections of weave styles available. Our wide selection of weave styles means youʼll find the right design for your screening application:Aggregate production, mineral sizing, grain drying, traveling water screens, power plant applications, livestock flooring and many others. Select from the weaves shown here, or call for information on special fabricated screens.

aperture square weave	Medium			Heavy Duty
aperture square weave	Wire Dia	kg/m²	OA%	Wire Dia	kg/m²	OA%
2.00				1.37	7.1	35
3.15	2.00	9.9	37	2.50	14.1	31
4.0	2.50	12.2	38	3.05	16.8	32
5.0	2.50	16.6	44	3.05	14.7	38
5.6	3.05	13.7	41	4.00	21.2	34
6.35	3.05	12.6	46	4.00	19.6	38
6.8	3.05	10.0	44	4.00	19.7	37
7.1	3.05	11.9	48	4.00	18.3	41
8	4.00	16.9	44	5.00	24.4	38
9	4.00	15.6	48	5.00	22.7	44
10	4.00	14.5	51	5.00	21.2	44
11.2	5.00	19.6	48	5.60	28.6	44
12.5	5.00	18.1	51	5.60	20.0	47
14	5.00	20.0	51	6.80	24.6	48
16	5.60	19.5	56	6.80	22.6	51
18	6.80	20.7	55	7.10	25.0	51
20	6.80	19.2	58	7.10	24.0	54
22	7.10	21.5	57	8.00	26.7	54
25	7.10	20.1	60	8.00	24.6	57
28	8.00	19.0	61	9.00	27.8	57
32	9.00	26.0	60	10.00	30.4	58
38	9.00	28.1	64	10.00	27.9	61
40	10.00	25.4	64	11.20	31.1	61
45	10.00	23.4	67	11.20	28.4	64
50	11.20	26.0	67	12.50	31.8	64
56	11.20	28.7	69	12.50	29.0	67
63	11.20	24.5	72	12.50	25.1	70
76.2	11.20	16.0	75	12.50	20.0	73
80	11.20	17.5	72	12.50	21.5	75
90	11.20	15.7	79	12.70	19.4	77
100	11.20	14.3	81	12.70	17.6	79

Carbon Steel Parameter

N0	Grade	Chemical Composition%
N0	Grade	C	Si	Mn
1	45	0.42-0.50	0.17-0.37	0.50-0.80
2	50	0.47-0.55
3	55	0.52-0.60
4	60	0.57-0.65
5	65	0.62-0.70
6	70	0.67-0.75
7	65Mn	0.62-0.70		0.90-1.20
8	72A	0.70-0.75	0.15-0.35	0.30-0.60

Product Detall

Mining Screens,High Carbon Steel Mining Screen,Screen quarry

Edge Types

Application

Our mining screens are widely used in quarries for primary screening.

Our mining screens are widely used in mines for mineral processing.

Our mining screens are widely used in asphalt mixers to scalp lump asphalt mater

Our mining screens are widely used in coal mines for coal processing.

Our mining screens are widely used in sand factories for fine sand screening.

Our mining screens are widely used in asphalt mixers to scalp lump asphalt mater

Why Choose Our Products?

	Superior carbon steel and stainless steel wires
	Strict production and quality control procedure
	A wide range of sizes and patterns for your option
	Easy installation and maintenance
	Large stocks for urgent orders
	Large output and timely delivery
