High Carbon Steel Mesh

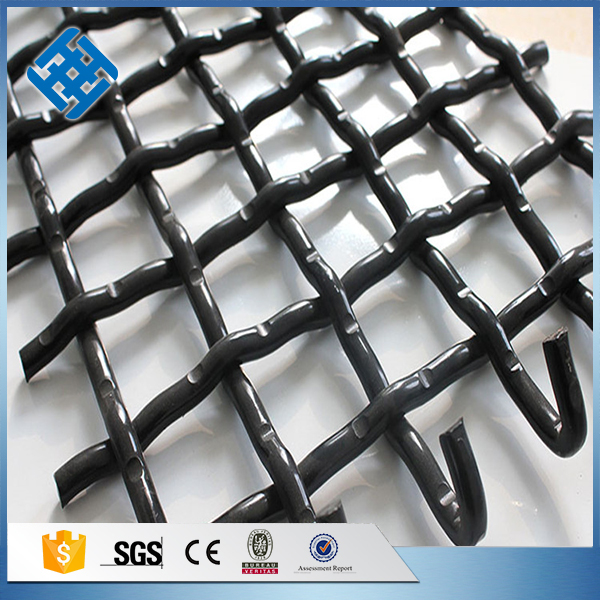

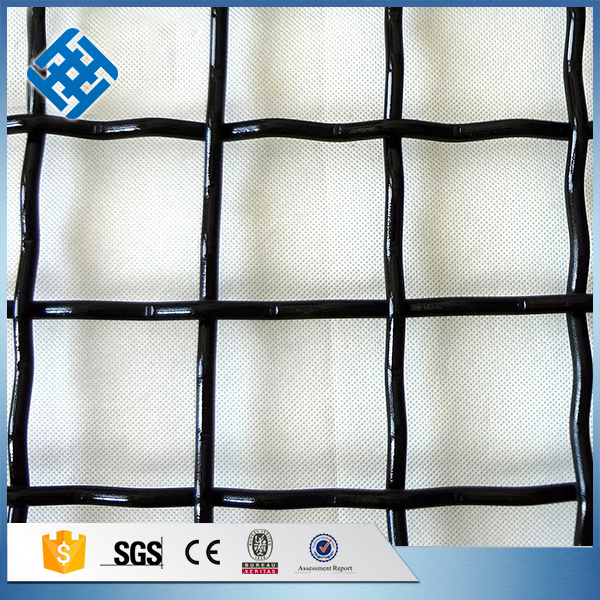

High Carbon Steel Lock Crimp Wire Mesh

Material: black wire, spring steel wire, manganese steel wire
Wire diameter: 0.71mm - 12.5mm. Mesh size: 1mm - 100mm.
Weave Type: Single intermediate crimp screen, double intermediate crimp screen, lock crimp screen, flat top screen, pressure welded screen.
Hole type: square, rectangular and long slot. Surface treatment: galvanized or painted.
Product description: Mainly used as screen mesh, it is widely used in many industries, such as mining screen, quarrying screen, the screen deck, screen wire for stone crusher; Vibrating screen;
INQUIRY

Application:

* Safety grids (e.g. car industry, mechanical engineering, building industry)
* Filling elements for gates and fences in buildings and gardens
* Booth construction
* Plant breeding
* Pigeon barriers
* Noise protection

Material:

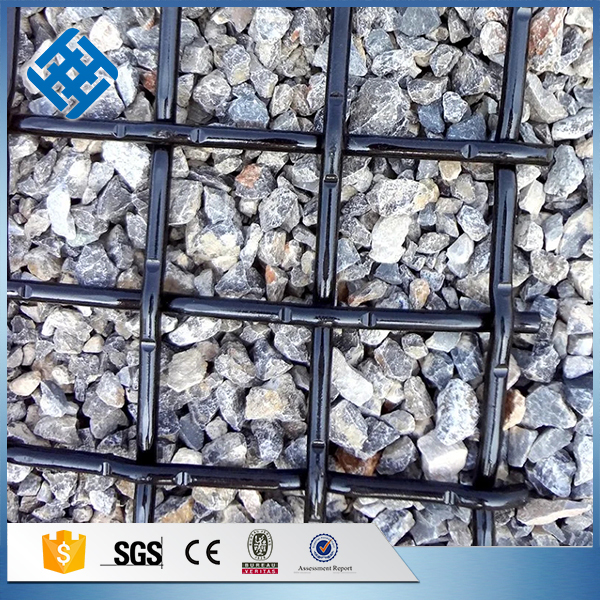

High tensile screen cloth is commonly used in heavy duty applications for scalping and sizing of rocks,aggregates,limestone,etc. They are weaved in sizes to suite most vibrating screens and available in:
* High Tensile Steel---Abrasion resistance
* Stainless Steel---Corrosion resistance
* Monel,Brass,etc---General applications

Special sizes can be customized according to your requirements

Weaving Types

Lock crimp screen, Lock Crimped Vibrating Screen Mesh, Crimped Double Lock Woven Wire Mesh

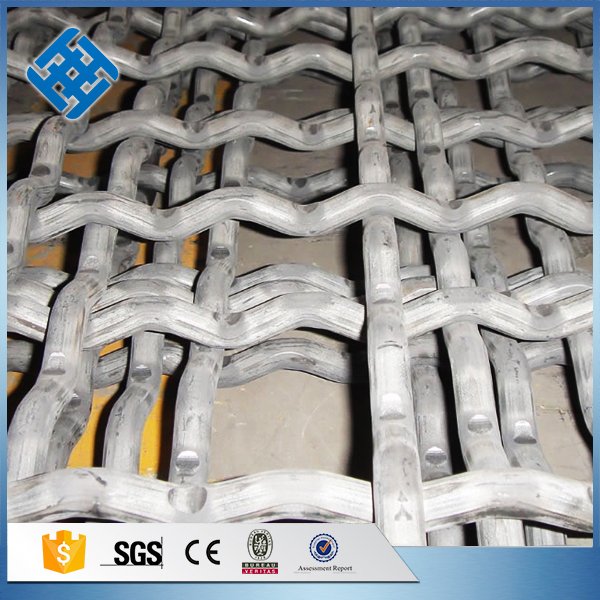

Lock Crimp Wire Mesh

produced by weaving previously crimped wires into one another. The mesh width and wire diameter determine the number of crimps within a mesh width. In some cases it is possible to produce grids with identical mesh width and differing numbers of crimps. The number of crimps set by us guarantees the highest possible mesh stability.

Specification

aperture square weave	Medium			Heavy Duty
aperture square weave	Wire Dia	kg/m²	OA%	Wire Dia	kg/m²	OA%
2.00				1.37	7.1	35
3.15	2.00	9.9	37	2.50	14.1	31
4.0	2.50	12.2	38	3.05	16.8	32
5.0	2.50	16.6	44	3.05	14.7	38
5.6	3.05	13.7	41	4.00	21.2	34
6.35	3.05	12.6	46	4.00	19.6	38
6.8	3.05	10.0	44	4.00	19.7	37
7.1	3.05	11.9	48	4.00	18.3	41
8	4.00	16.9	44	5.00	24.4	38
9	4.00	15.6	48	5.00	22.7	44
10	4.00	14.5	51	5.00	21.2	44
11.2	5.00	19.6	48	5.60	28.6	44
12.5	5.00	18.1	51	5.60	20.0	47
14	5.00	20.0	51	6.80	24.6	48
16	5.60	19.5	56	6.80	22.6	51
18	6.80	20.7	55	7.10	25.0	51
20	6.80	19.2	58	7.10	24.0	54
22	7.10	21.5	57	8.00	26.7	54
25	7.10	20.1	60	8.00	24.6	57
28	8.00	19.0	61	9.00	27.8	57
32	9.00	26.0	60	10.00	30.4	58
38	9.00	28.1	64	10.00	27.9	61
40	10.00	25.4	64	11.20	31.1	61
45	10.00	23.4	67	11.20	28.4	64
50	11.20	26.0	67	12.50	31.8	64
56	11.20	28.7	69	12.50	29.0	67
63	11.20	24.5	72	12.50	25.1	70
76.2	11.20	16.0	75	12.50	20.0	73
80	11.20	17.5	72	12.50	21.5	75
90	11.20	15.7	79	12.70	19.4	77
100	11.20	14.3	81	12.70	17.6	79

Carbon Steel Parameter

N0	Grade	Chemical Composition%
N0	Grade	C	Si	Mn
1	45	0.42-0.50	0.17-0.37	0.50-0.80
2	50	0.47-0.55
3	55	0.52-0.60
4	60	0.57-0.65
5	65	0.62-0.70
6	70	0.67-0.75
7	65Mn	0.62-0.70		0.90-1.20
8	72A	0.70-0.75	0.15-0.35	0.30-0.60

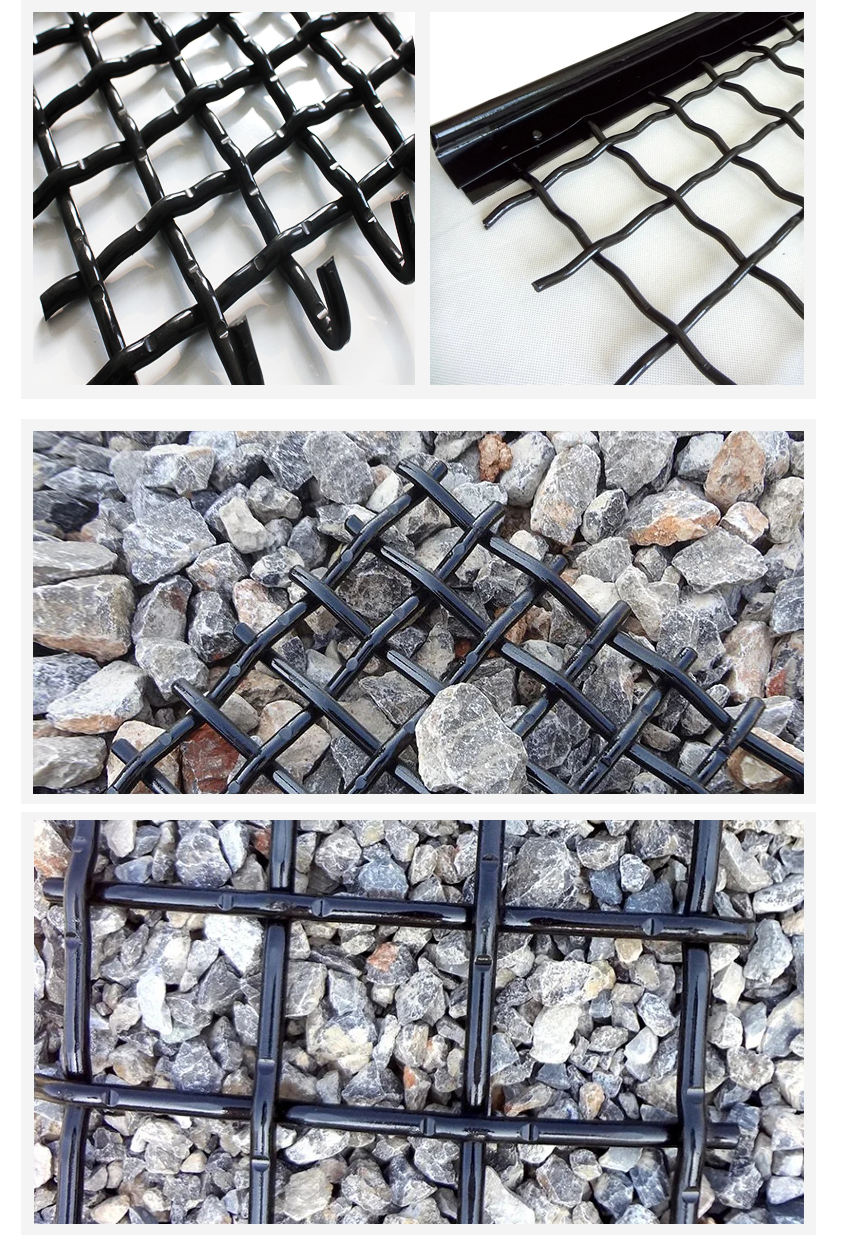

Product Detall

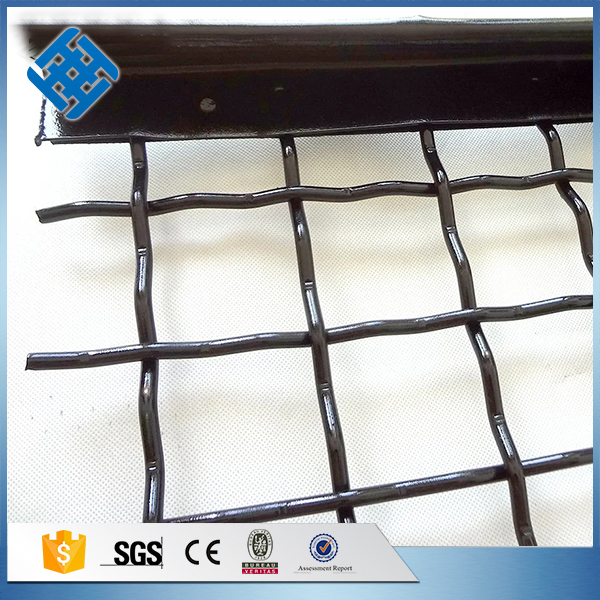

Edge Types

Why Choose Our Products?

	Superior carbon steel and stainless steel wires
	Strict production and quality control procedure
	A wide range of sizes and patterns for your option
	Easy installation and maintenance
	Large stocks for urgent orders
	Large output and timely delivery
