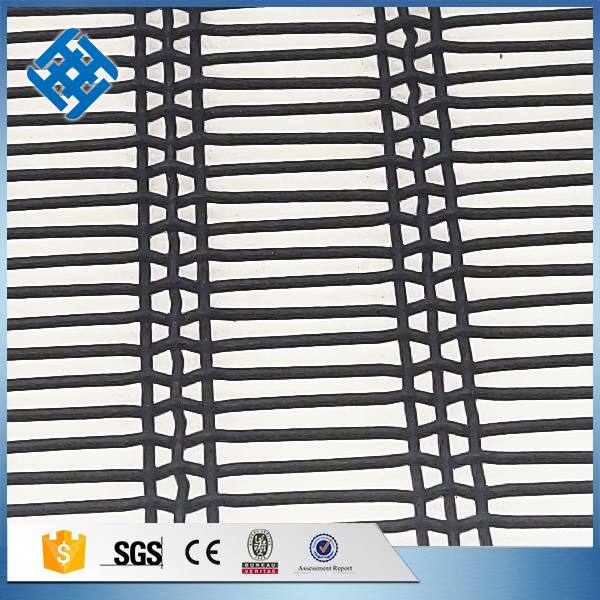

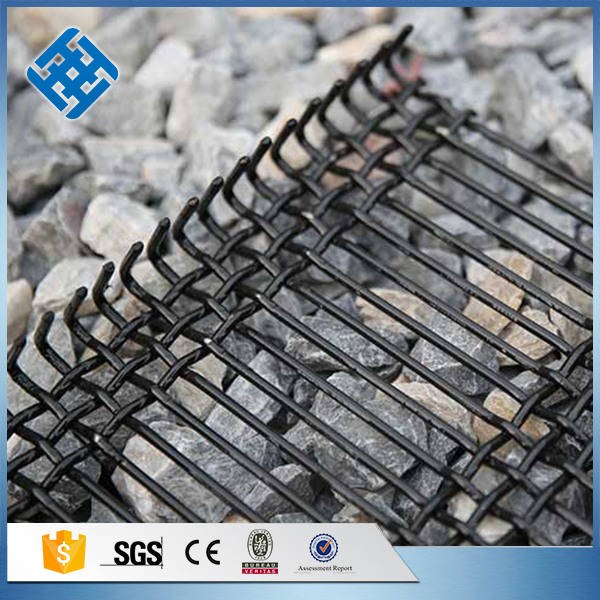

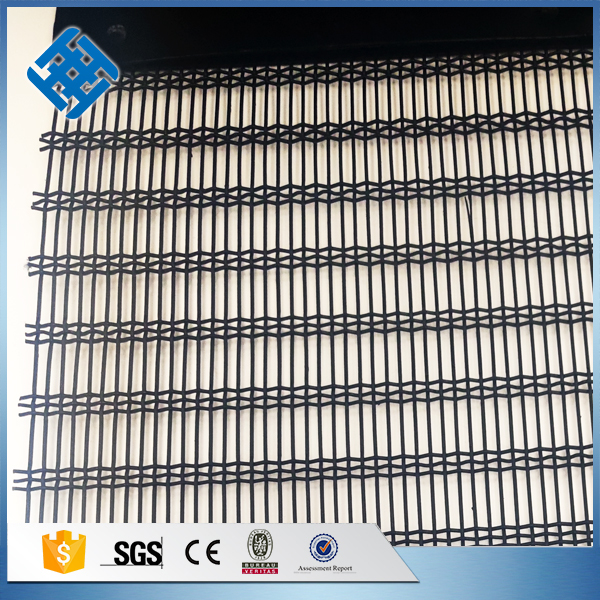

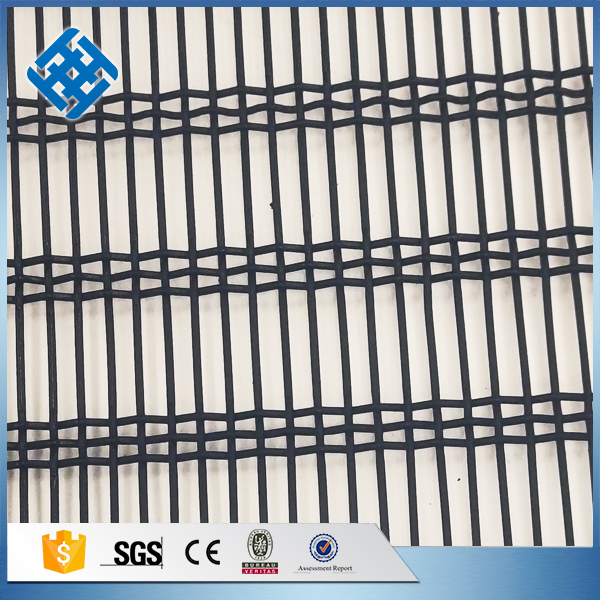

High Carbon Steel Slot Screen

  • Material: black wire, spring steel wire, manganese steel wire
  • Wire Diameter:0.3mm~14mm Aperture:0.1-3m Weight:1.45-20kg/m2
  • Type of weaving: Crimped before weave, double-direction,ripples flections, tight lock flections, flattop flections, double-direction flections, list-direction separate ripples flections.
  • Hole type: rectangular and long slot. Surface treatment: galvanized or painted.
  • Product description: High Carbon Steel Slot Screen is one of the most commonly used mining screens in mining, mineral processing, quarrying and aggregating industries.
  • INQUIRY

Crimping: Double crimped,Inter crimped,Lock crimped etc.
Opening: 3mm to 150mm with wires 1.4mm to 12.7mm thick;
Specification: width up to 2.2m, no length limitation.
Edge: Raw Edge,plated sheathed,hooked,inner plated welded etc.

Material:
High tensile screen cloth is commonly used in heavy duty applications for scalping and sizing of rocks,aggregates,limestone,etc. They are weaved in sizes to suite most vibrating screens and available in:
* High Tensile Steel---Abrasion resistance
* Stainless Steel---Corrosion resistance
* Monel,Brass,etc---General applications



Special sizes can be customized according to your requirements

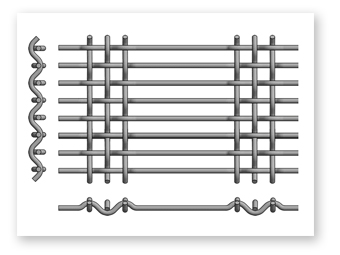

Weaving Types

High Carbon Steel Slot Screen,carbon steel screen , carbon steel wire mesh, stone crusher screen, mine screen mesh, Quarry mesh


High Carbon Steel Slot Screen


Slotted  wire mesh adopts indistinctly crimped and flat undulated wires which tend to maintain a flat work surface. It employs thick diameter or double wires to achieve greater resistance to heavy materials.


Specification

aperture
square
weave
Medium Heavy Duty
Wire
Dia
kg/m² OA%

Wire
Dia

kg/m² OA%
2.00 1.37 7.1 35
3.15 2.00 9.9 37 2.50 14.1 31
4.0 2.50 12.2 38 3.05 16.8 32
5.0 2.50 16.6 44 3.05 14.7 38
5.6 3.05 13.7 41 4.00 21.2 34
6.35 3.05 12.6 46 4.00 19.6 38
6.8 3.05 10.0 44 4.00 19.7 37
7.1 3.05 11.9 48 4.00 18.3 41
8 4.00 16.9 44 5.00 24.4 38
9 4.00 15.6 48 5.00 22.7 44
10 4.00 14.5 51 5.00 21.2 44
11.2 5.00 19.6 48 5.60 28.6 44
12.5 5.00 18.1 51 5.60 20.0 47

14

5.00 20.0 51 6.80 24.6 48

16

5.60 19.5 56 6.80 22.6 51
18 6.80 20.7 55 7.10 25.0 51
20 6.80 19.2 58 7.10 24.0 54
22 7.10 21.5 57 8.00 26.7 54
25 7.10 20.1 60 8.00 24.6 57
28 8.00 19.0 61 9.00 27.8 57
32 9.00 26.0 60 10.00 30.4 58
38 9.00 28.1 64 10.00 27.9 61
40 10.00 25.4 64 11.20 31.1 61
45 10.00 23.4 67 11.20 28.4 64
50 11.20 26.0 67 12.50 31.8 64
56 11.20 28.7 69 12.50 29.0 67
63 11.20 24.5 72 12.50 25.1 70
76.2 11.20 16.0 75 12.50 20.0 73
80 11.20 17.5 72 12.50 21.5 75
90 11.20 15.7 79 12.70 19.4 77
100 11.20 14.3 81 12.70 17.6 79

Carbon Steel Parameter

N0 Grade
Chemical Composition%
C Si Mn
1 45 0.42-0.50 0.17-0.37 0.50-0.80
2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60

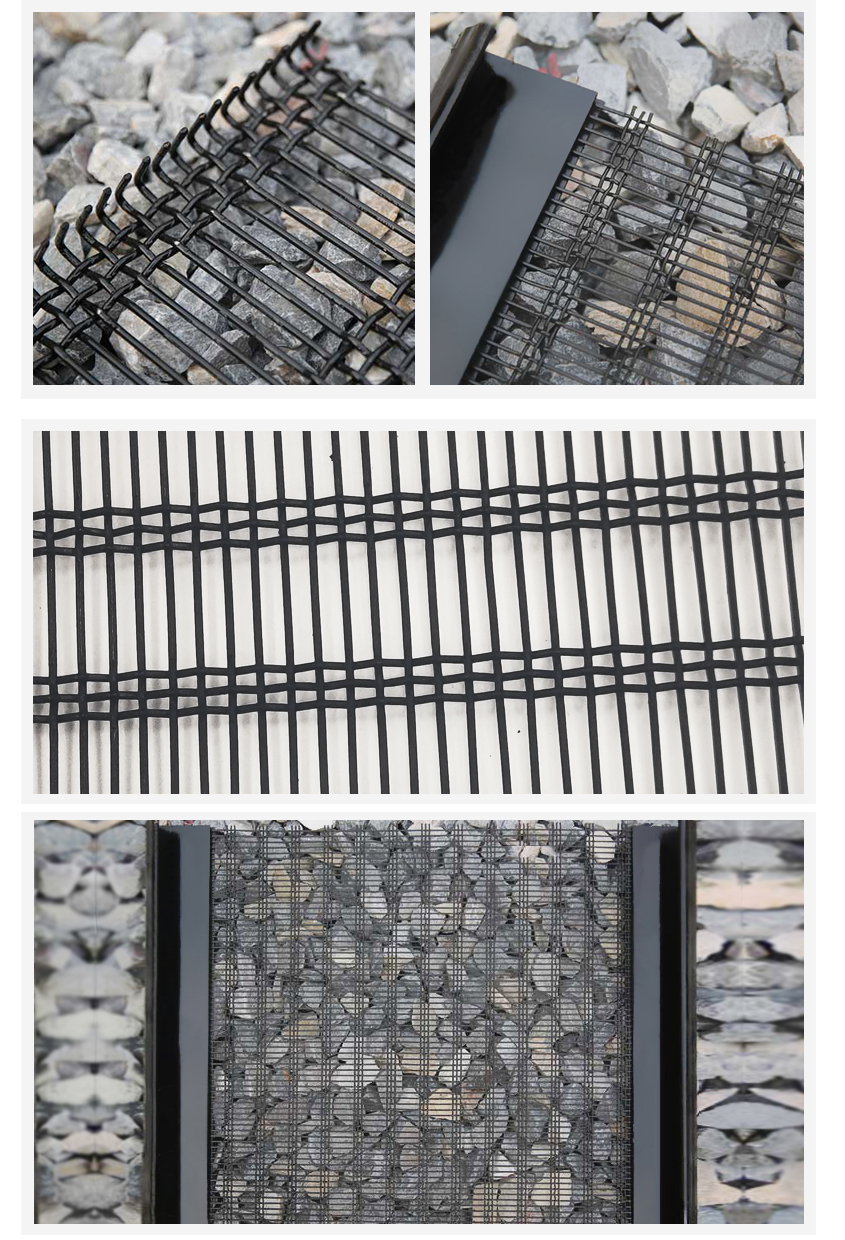

Product Detall

High Carbon Steel Slot Screen,high carbon mild steel mesh,carbon steel screen , carbon steel wire mesh, stone crusher screen, mine screen mesh, Quarry mesh

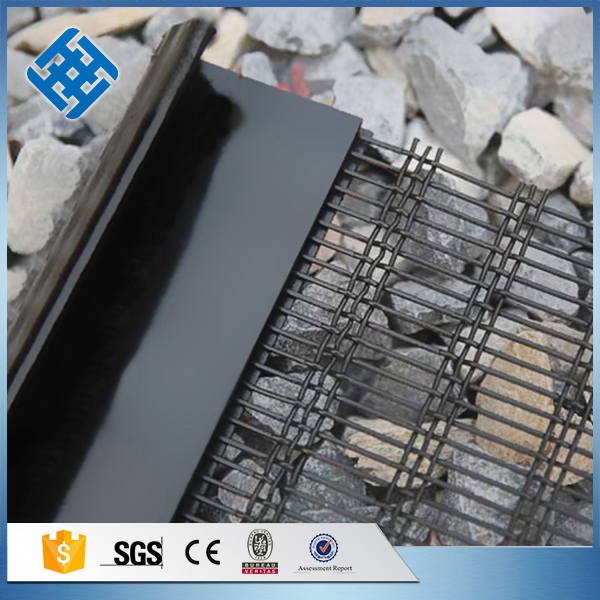

Edge Types

high carbon mild steel mesh,carbon steel screen , carbon steel wire mesh, stone crusher screen, mine screen mesh, Quarry mesh

Why Choose Our Products?

High Carbon Steel Slot Screen,high carbon mild steel mesh,carbon steel screen , carbon steel wire mesh, stone crusher screen, mine screen mesh, Quarry mesh
Superior carbon steel and stainless steel wires
High Carbon Steel Slot Screen,high carbon mild steel mesh,carbon steel screen , carbon steel wire mesh, stone crusher screen, mine screen mesh, Quarry mesh
Strict production and quality control procedure
High Carbon Steel Slot Screen,high carbon mild steel mesh,carbon steel screen , carbon steel wire mesh, stone crusher screen, mine screen mesh, Quarry mesh
A wide range of sizes and patterns for your option
High Carbon Steel Slot Screen,high carbon mild steel mesh,carbon steel screen , carbon steel wire mesh, stone crusher screen, mine screen mesh, Quarry mesh
Easy installation and maintenance
High Carbon Steel Slot Screen,high carbon mild steel mesh,carbon steel screen , carbon steel wire mesh, stone crusher screen, mine screen mesh, Quarry mesh
Large stocks for urgent orders
High Carbon Steel Slot Screen,high carbon mild steel mesh,carbon steel screen , carbon steel wire mesh, stone crusher screen, mine screen mesh, Quarry mesh
Large output and timely delivery
