Heavy stones rock soil sand cement vibrating crimped wire mesh screens crusher hooked 65Mn screen separator shaker metal mesh

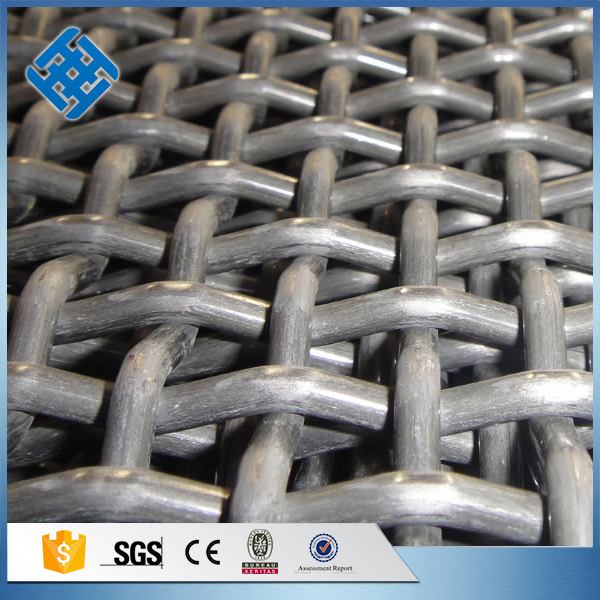

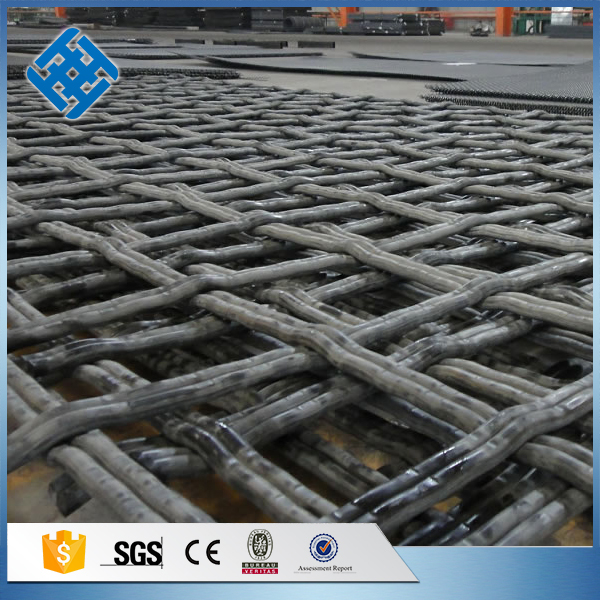

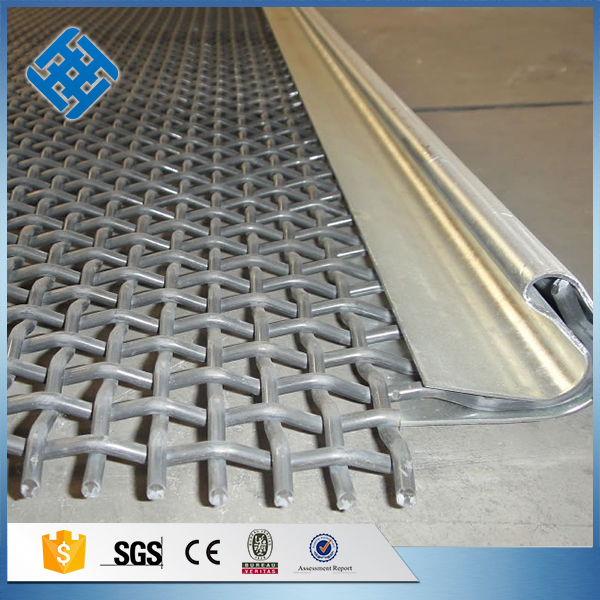

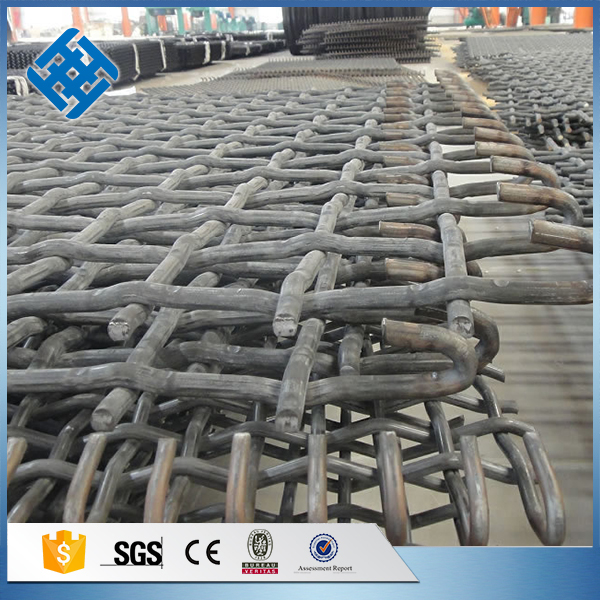

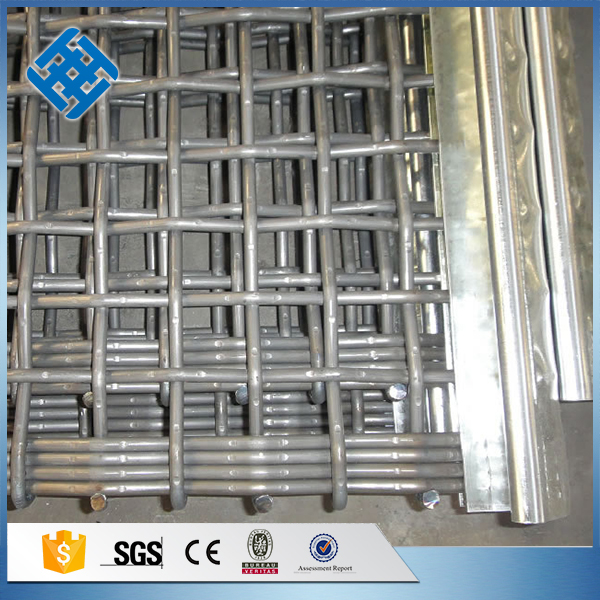

Heavy duty Crimped wire mesh are the most widely used screens in the aggregate and mining industries, due to their high screening area, precision and price ratio.
Crimped wire mesh screen (mining screen wire mesh, square wire mesh) are manufactured in different geometries (square or slotted meshes) and different weaving styles (double crimped,flat mesh, etc.).
|
Double Crimp Wire Mesh |
Flat Top Wire Mesh |
|
Lock Crimp Wire Mesh |
Slotted wire mesh |
Efficient screening of materials requires the right weave. Unified Screening & Crushing has one of the largest selections of weave styles available. Our wide selection of weave styles means youʼll find the right design for your screening application:Aggregate production, mineral sizing, grain drying, traveling water screens, power plant applications, livestock flooring and many others. Select from the weaves shown here, or call for information on special fabricated screens.
|
aperture square weave |
Medium | Heavy Duty | ||||
|---|---|---|---|---|---|---|
|
Wire Dia |
kg/m² | OA% |
Wire |
kg/m² | OA% | |
| 2.00 | 1.37 | 7.1 | 35 | |||
| 3.15 | 2.00 | 9.9 | 37 | 2.50 | 14.1 | 31 |
| 4.0 | 2.50 | 12.2 | 38 | 3.05 | 16.8 | 32 |
| 5.0 | 2.50 | 16.6 | 44 | 3.05 | 14.7 | 38 |
| 5.6 | 3.05 | 13.7 | 41 | 4.00 | 21.2 | 34 |
| 6.35 | 3.05 | 12.6 | 46 | 4.00 | 19.6 | 38 |
| 6.8 | 3.05 | 10.0 | 44 | 4.00 | 19.7 | 37 |
| 7.1 | 3.05 | 11.9 | 48 | 4.00 | 18.3 | 41 |
| 8 | 4.00 | 16.9 | 44 | 5.00 | 24.4 | 38 |
| 9 | 4.00 | 15.6 | 48 | 5.00 | 22.7 | 44 |
| 10 | 4.00 | 14.5 | 51 | 5.00 | 21.2 | 44 |
| 11.2 | 5.00 | 19.6 | 48 | 5.60 | 28.6 | 44 |
| 12.5 | 5.00 | 18.1 | 51 | 5.60 | 20.0 | 47 |
|
14 |
5.00 | 20.0 | 51 | 6.80 | 24.6 | 48 |
|
16 |
5.60 | 19.5 | 56 | 6.80 | 22.6 | 51 |
| 18 | 6.80 | 20.7 | 55 | 7.10 | 25.0 | 51 |
| 20 | 6.80 | 19.2 | 58 | 7.10 | 24.0 | 54 |
| 22 | 7.10 | 21.5 | 57 | 8.00 | 26.7 | 54 |
| 25 | 7.10 | 20.1 | 60 | 8.00 | 24.6 | 57 |
| 28 | 8.00 | 19.0 | 61 | 9.00 | 27.8 | 57 |
| 32 | 9.00 | 26.0 | 60 | 10.00 | 30.4 | 58 |
| 38 | 9.00 | 28.1 | 64 | 10.00 | 27.9 | 61 |
| 40 | 10.00 | 25.4 | 64 | 11.20 | 31.1 | 61 |
| 45 | 10.00 | 23.4 | 67 | 11.20 | 28.4 | 64 |
| 50 | 11.20 | 26.0 | 67 | 12.50 | 31.8 | 64 |
| 56 | 11.20 | 28.7 | 69 | 12.50 | 29.0 | 67 |
| 63 | 11.20 | 24.5 | 72 | 12.50 | 25.1 | 70 |
| 76.2 | 11.20 | 16.0 | 75 | 12.50 | 20.0 | 73 |
| 80 | 11.20 | 17.5 | 72 | 12.50 | 21.5 | 75 |
| 90 | 11.20 | 15.7 | 79 | 12.70 | 19.4 | 77 |
| 100 | 11.20 | 14.3 | 81 | 12.70 | 17.6 | 79 |
| N0 |
Grade |
Chemical Composition% | ||
|---|---|---|---|---|
| C | Si | Mn | ||
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 | ||
| 3 | 55 | 0.52-0.60 | ||
| 4 | 60 | 0.57-0.65 | ||
| 5 | 65 | 0.62-0.70 | ||
| 6 | 70 | 0.67-0.75 | ||
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
Application:
* Mine screen is widely used in the vibrating screens, crushers and trommel screens.
* Mine screen is used as a fence or filter in many industries.
* Woven vibrating screen mesh can be used for screening and separating stones, coal, mining, gravel, sand and any other materials.
Special sizes can be customized according to your requirements
Material:
High tensile screen cloth is commonly used in heavy duty applications for scalping and sizing of rocks,aggregates,limestone,etc. They are weaved in sizes to suite most vibrating screens and available in:
* High Tensile Steel---Abrasion resistance
* Stainless Steel---Corrosion resistance
* Monel,Brass,etc---General applications
 |
Superior carbon steel and stainless steel wires |
|
|
Strict production and quality control procedure |
|
|
A wide range of sizes and patterns for your option |
|
|
Easy installation and maintenance |
|
|
Large stocks for urgent orders |
|
|
Large output and timely delivery |
