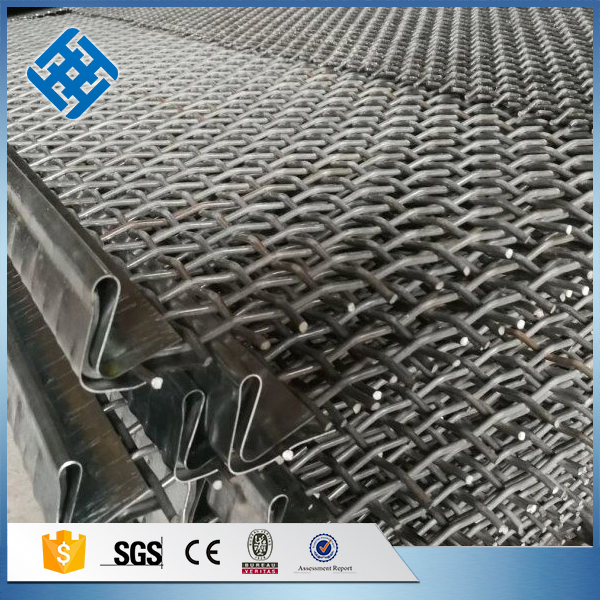

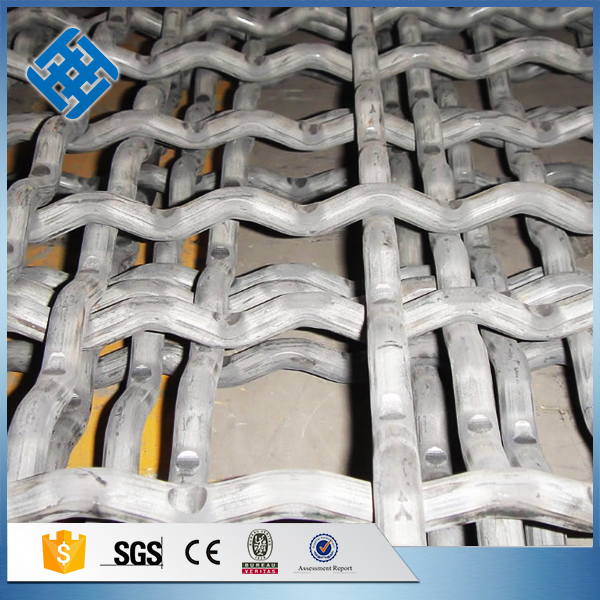

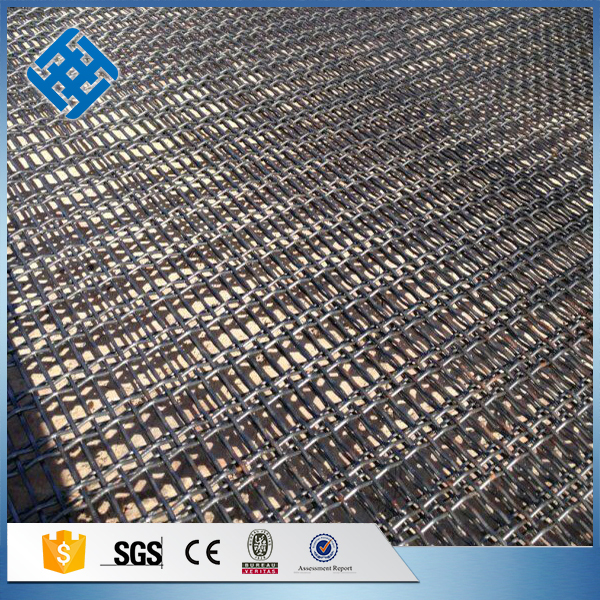

Anti-blocking Piano quarry wire screen carbon steel screen mesh Steel Replacement Crimped Wire Mesh
Anti-blocking Piano quarry wire screen is also called quarry screen mesh, crusher screen mesh. It is made of spring steel wire (high carbon steel wire, medium carbon steel wire, manganese steel wire) and stainless steel wire. The most popular material is 65Mn wire.
Square Opening Screen is a versatile screening media which is easy to install and maintain. Designed to a long wear life and can be economically used in most applications.
Material:
High tensile screen cloth is commonly used in heavy duty applications for scalping and sizing of rocks,aggregates,limestone,etc.
They are weaved in sizes to suite most vibrating screens and available in:
* High Tensile Steel---Abrasion resistance
* Stainless Steel---Corrosion resistance
* Monel,Brass,etc---General applications
High quality control
1, best abrasion-resistance material
2, longer service life warranty
3, precise aperture and dimensions
4, flat surface, strong woven
|
Double Crimp Wire Mesh |
Flat Top Wire Mesh |
|
Lock Crimp Wire Mesh |
Slotted wire mesh |
Efficient screening of materials requires the right weave. Unified Screening & Crushing has one of the largest selections of weave styles available. Our wide selection of weave styles means youʼll find the right design for your screening application:Aggregate production, mineral sizing, grain drying, traveling water screens, power plant applications, livestock flooring and many others. Select from the weaves shown here, or call for information on special fabricated screens.
|
aperture square weave |
Medium | Heavy Duty | ||||
|---|---|---|---|---|---|---|
|
Wire Dia |
kg/m² | OA% |
Wire |
kg/m² | OA% | |
| 2.00 | 1.37 | 7.1 | 35 | |||
| 3.15 | 2.00 | 9.9 | 37 | 2.50 | 14.1 | 31 |
| 4.0 | 2.50 | 12.2 | 38 | 3.05 | 16.8 | 32 |
| 5.0 | 2.50 | 16.6 | 44 | 3.05 | 14.7 | 38 |
| 5.6 | 3.05 | 13.7 | 41 | 4.00 | 21.2 | 34 |
| 6.35 | 3.05 | 12.6 | 46 | 4.00 | 19.6 | 38 |
| 6.8 | 3.05 | 10.0 | 44 | 4.00 | 19.7 | 37 |
| 7.1 | 3.05 | 11.9 | 48 | 4.00 | 18.3 | 41 |
| 8 | 4.00 | 16.9 | 44 | 5.00 | 24.4 | 38 |
| 9 | 4.00 | 15.6 | 48 | 5.00 | 22.7 | 44 |
| 10 | 4.00 | 14.5 | 51 | 5.00 | 21.2 | 44 |
| 11.2 | 5.00 | 19.6 | 48 | 5.60 | 28.6 | 44 |
| 12.5 | 5.00 | 18.1 | 51 | 5.60 | 20.0 | 47 |
|
14 |
5.00 | 20.0 | 51 | 6.80 | 24.6 | 48 |
|
16 |
5.60 | 19.5 | 56 | 6.80 | 22.6 | 51 |
| 18 | 6.80 | 20.7 | 55 | 7.10 | 25.0 | 51 |
| 20 | 6.80 | 19.2 | 58 | 7.10 | 24.0 | 54 |
| 22 | 7.10 | 21.5 | 57 | 8.00 | 26.7 | 54 |
| 25 | 7.10 | 20.1 | 60 | 8.00 | 24.6 | 57 |
| 28 | 8.00 | 19.0 | 61 | 9.00 | 27.8 | 57 |
| 32 | 9.00 | 26.0 | 60 | 10.00 | 30.4 | 58 |
| 38 | 9.00 | 28.1 | 64 | 10.00 | 27.9 | 61 |
| 40 | 10.00 | 25.4 | 64 | 11.20 | 31.1 | 61 |
| 45 | 10.00 | 23.4 | 67 | 11.20 | 28.4 | 64 |
| 50 | 11.20 | 26.0 | 67 | 12.50 | 31.8 | 64 |
| 56 | 11.20 | 28.7 | 69 | 12.50 | 29.0 | 67 |
| 63 | 11.20 | 24.5 | 72 | 12.50 | 25.1 | 70 |
| 76.2 | 11.20 | 16.0 | 75 | 12.50 | 20.0 | 73 |
| 80 | 11.20 | 17.5 | 72 | 12.50 | 21.5 | 75 |
| 90 | 11.20 | 15.7 | 79 | 12.70 | 19.4 | 77 |
| 100 | 11.20 | 14.3 | 81 | 12.70 | 17.6 | 79 |
| N0 |
Grade |
Chemical Composition% | ||
|---|---|---|---|---|
| C | Si | Mn | ||
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 | ||
| 3 | 55 | 0.52-0.60 | ||
| 4 | 60 | 0.57-0.65 | ||
| 5 | 65 | 0.62-0.70 | ||
| 6 | 70 | 0.67-0.75 | ||
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |

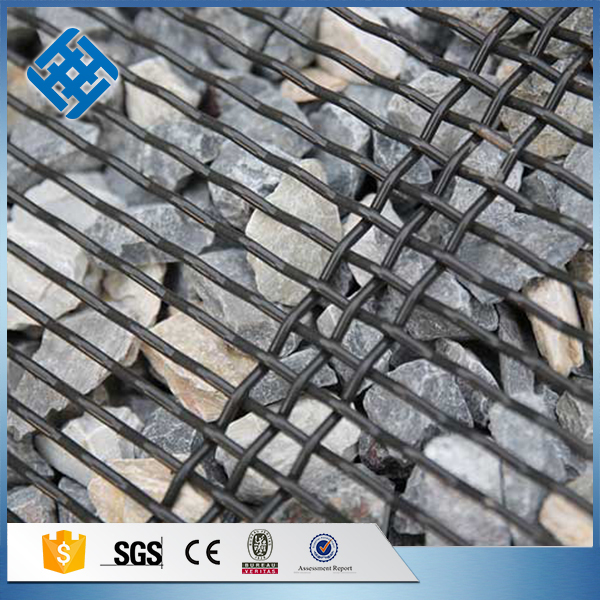

Anti-blocking Piano quarry wire screen carbon steel screen mesh Steel can be used as screen deck in quarry screen and crusher screen to separate and sort stone, sand, gravel, coal, rock and other materials. It is widely used in the large scale stone processing, asphalt mixing plants, coal, metallurgy, chemical and other industries.
Application:
* Mine screen is widely used in the vibrating screens, crushers and trommel screens.
* Mine screen is used as a fence or filter in many industries.
* Woven vibrating screen mesh can be used for screening and separating stones, coal, mining, gravel, sand and any other materials.
Special sizes can be customized according to your requirements
 |
Superior carbon steel and stainless steel wires |
|
|
Strict production and quality control procedure |
|
|
A wide range of sizes and patterns for your option |
|
|
Easy installation and maintenance |
|
|
Large stocks for urgent orders |
|
|
Large output and timely delivery |
