Stainless Steel Wire Mesh

  • Stainless Steel Stone Crusher Screen Mesh
  • Stainless Steel Stone Crusher Screen Mesh
  • Stainless Steel Stone Crusher Screen Mesh
  • Stainless Steel Stone Crusher Screen Mesh
Stainless Steel Stone Crusher Screen MeshStainless Steel Stone Crusher Screen MeshStainless Steel Stone Crusher Screen MeshStainless Steel Stone Crusher Screen Mesh

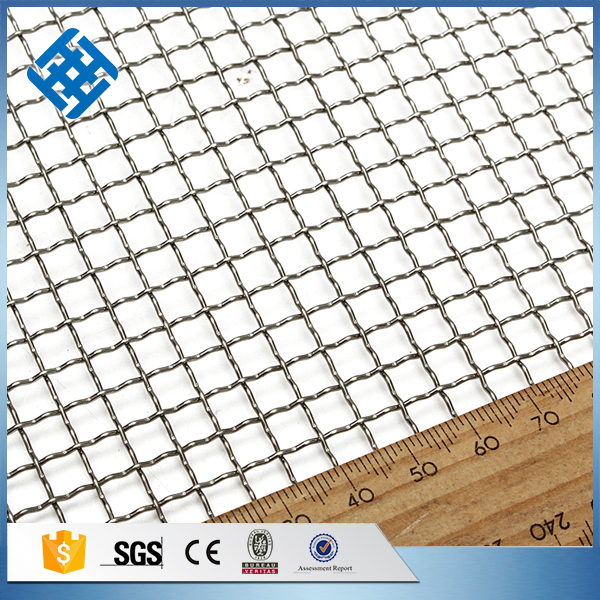

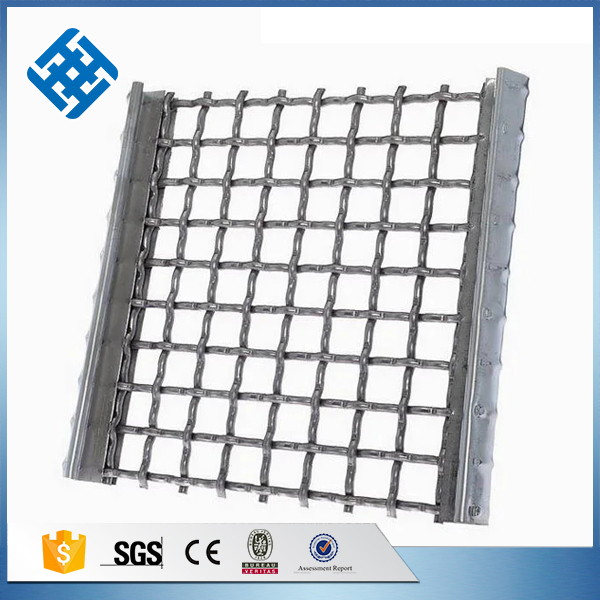

Stainless Steel Stone Crusher Screen Mesh

  • Material:SS304,SS304L,SS316,SS316L,and other SS alloy.
  • Wire Gauge : 0.8mm to 16mm size: 1mm to 100mm
  • Weave Type: Single intermediate crimp screen, double intermediate crimp screen, lock crimp screen, flat top screen, pressure welded screen.
  • Hole type: square, rectangle and long slot special size can be customized according to your requirements
  • Product description: Stainless Steel Stone Crusher Screen Mesh can be widely used in sand,rock,coal,gavel,metal material screening ,quarry aggregate,mining industries ,road construction industries,asphalt mixing plant and
  • INQUIRY

* Features: heat resistance, acid resistance, alkali resistance, corrosion resistance, wear resistance, wide structure solid

* Property:Beautiful outlook,firm and durable construction, uniform mesh, fine rust-resisting.

* Packing:In rolls, wrapped with waterproof paper then covered with hessian-cloth. Special packing may be arranged if necessary.

* Applications Showing:
Fine stainless steel cloth screen is widely used in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace,machine making and so on.

Weaving Types

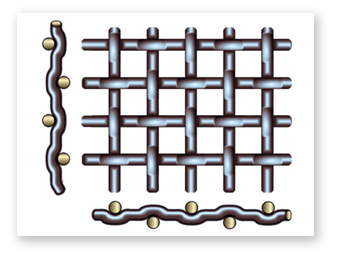

Stainless Steel Lock Crimp Wire Mesh


Lock Crimp Wire Mesh

Lock Crimp Mesh is produced by the pre-crimp wire. The warp and Shute wires are both crimped at their points of intersection and ensures that there is no wire movement .then it makes the lock crimp wire cloth very firm


Specification

Mesh Wire Gauge Aperture Percentage of
Opening (%)
inch mm inch mm
2" 0.116 2.94 1.884 47.86 88.76
2" 0.135 3.42 1.865 47.38 86.99
2" 0.159 4.04 1.841 46.76 84.73
2" 0.212 5.38 1.788 45.42 79.94
1 1/2" 0.104 2.64 1.396 35.46 86.62
1 1/2" 0.135 3.42 1.365 34.68 82.85
1 1/2" 0.159 4.04 1.341 34.06 79.92
1×1 0.080 2.03 0.920 23.37 84.65
1×1 0.116 2.94 0.884 22.46 78.19
1×1 0.135 3.42 0.865 21.98 74.88
2×2 0.047 1.19 0.453 11.51 82.14
2×2 0.072 1.83 0.428 10.87 73.26
2×2 0.104 2.64 0.396 10.06 62.75
2×2 0.120 3.05 0.380 9.65 57.74
3×3 0.054 1.37 0.279 7.10 70.26
3×3 0.072 1.83 0.261 6.64 61.44
3×3 0.080 2.03 0.253 6.44 57.80
4×4 0.028 0.71 0.222 5.64 78.89
4×4 0.047 1.19 0.203 5.16 66.03
4×4 0.063 1.60 0.187 4.75 55.96
4×4 0.080 2.03 0.170 4.32 46.28
5×5 0.035 0.89 0.165 4.19 68.03
5×5 0.047 1.19 0.153 3.89 58.64
5×5 0.063 1.60 0.137 3.48 46.93
6×6 0.035 0.89 0.132 3.34 62.37
6×6 0.041 1.04 0.126 3.19 56.90
6×6 0.047 1.19 0.120 3.04 51.68
6×6 0.063 1.60 0.104 2.63 38.69
8×8 0.017 0.43 0.108 2.75 74.75
8×8 0.028 0.71 0.097 2.47 60.28
8×8 0.035 0.89 0.090 2.29 51.79
8×8 0.047 1.19 0.078 1.99 39.09
10×10 0.017 0.43 0.083 2.11 69.01
10×10 0.025 0.635 0.075 1.91 56.25
10×10 0.032 0.813 0.068 1.73 46.23
10×10 0.047 1.19 0.053 1.35 28.25
12×12 0.017 0.43 0.066 1.69 63.50
12×12 0.023 0.58 0.060 1.54 52.71
12×12 0.028 0.71 0.055 1.41 44.16
12×12 0.035 0.89 0.048 1.23 33.59
14×14 0.015 0.38 0.056 1.43 62.50
14×14 0.020 0.50 0.052 1.31 52.48
14×14 0.028 0.71 0.043 1.10 37.05
16×16 0.015 0.38 0.048 1.21 57.86
16×16 0.018 0.45 0.045 1.14 51.34
16×16 0.023 0.58 0.040 1.01 40.28
16×16 0.028 0.71 0.035 0.88 30.55
18×18 0.014 0.35 0.042 1.06 56.55
18×18 0.017 0.43 0.039 0.98 48.34
18×18 0.020 0.50 0.036 0.91 41.69
18×18 0.023 0.58 0.033 0.83 34.69
20×20 0.014 0.35 0.036 0.92 52.48
20×20 0.017 0.43 0.033 0.84 43.75
20×20 0.020 0.50 0.030 0.77 36.76
20×20 0.023 0.58 0.027 0.69 29.52

Product Detall

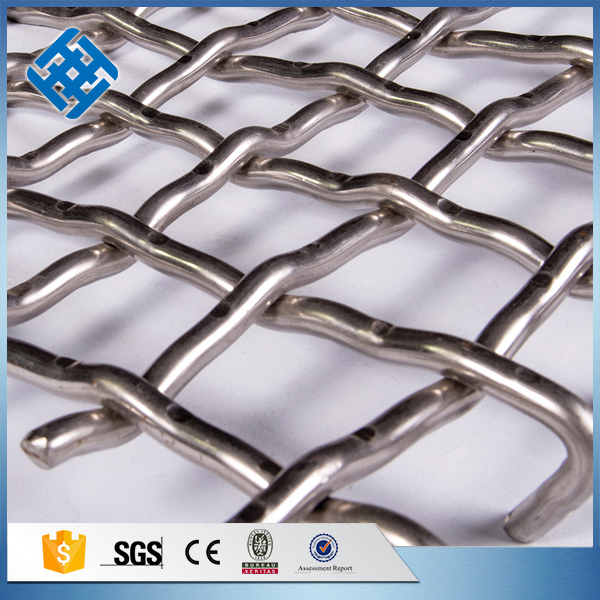

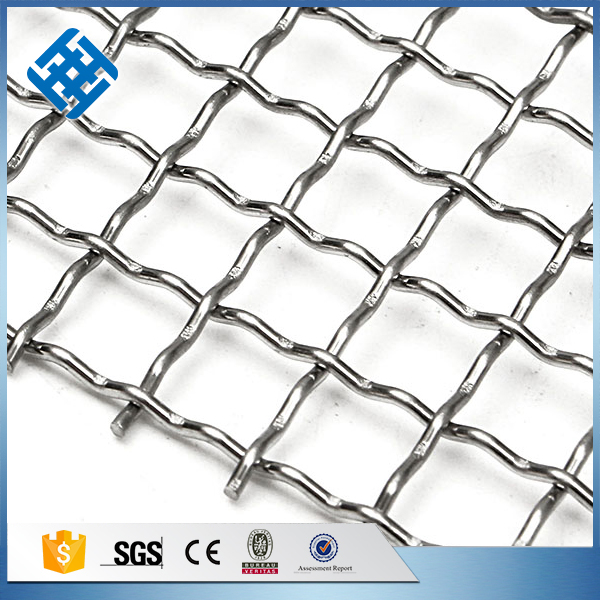

Stainless Steel Lock Crimp Wire Mesh

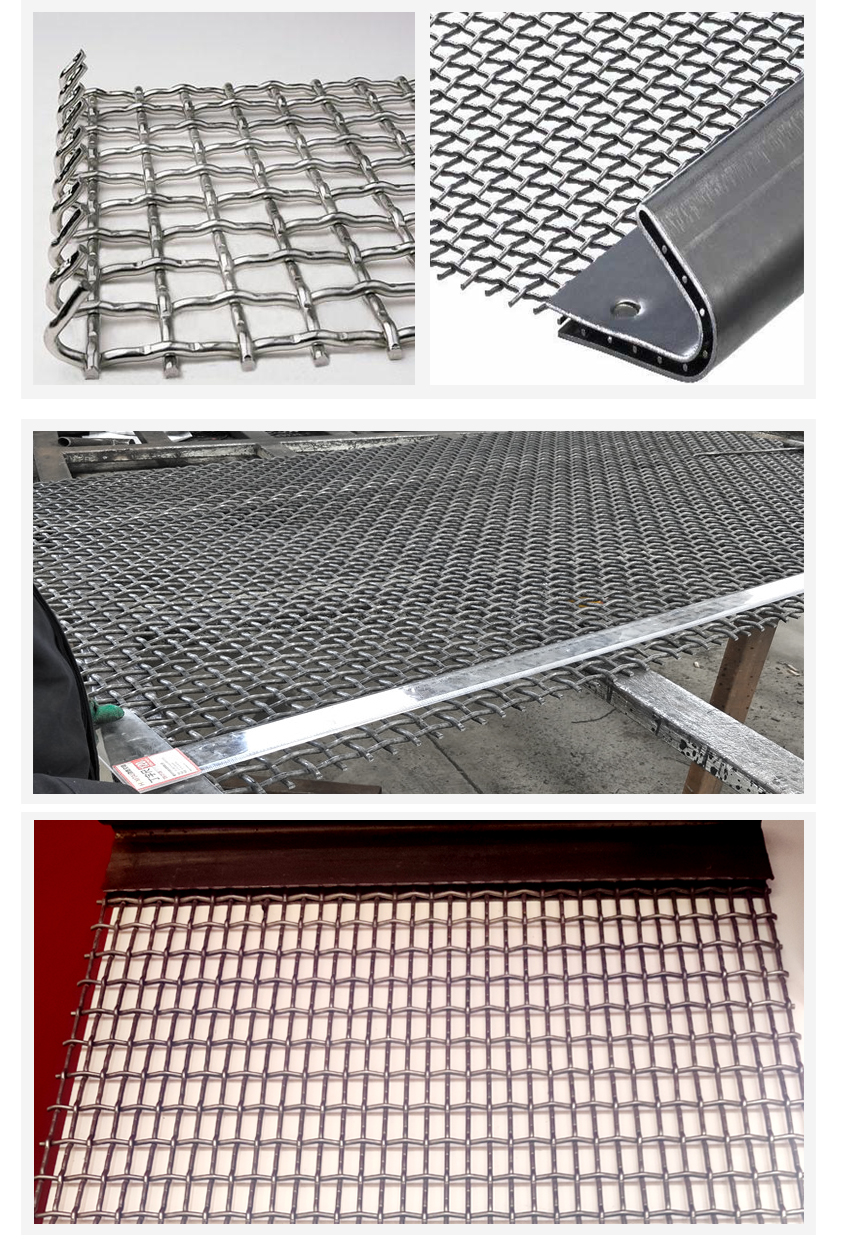

Edge Types

Quarry Rock Steel Woven Steel Screen Mesh, vibration crimped wire mesh, Steel Screen Mesh for Crusher Machine, Lock crimped screen mesh

Why Choose Our Products?

Quarry Rock Steel Woven Steel Screen Mesh, vibration crimped wire mesh, Steel Screen Mesh for Crusher Machine, Lock crimped screen mesh
Superior carbon steel and stainless steel wires
Quarry Rock Steel Woven Steel Screen Mesh, vibration crimped wire mesh, Steel Screen Mesh for Crusher Machine, Lock crimped screen mesh
Strict production and quality control procedure
Quarry Rock Steel Woven Steel Screen Mesh, vibration crimped wire mesh, Steel Screen Mesh for Crusher Machine, Lock crimped screen mesh
A wide range of sizes and patterns for your option
Quarry Rock Steel Woven Steel Screen Mesh, vibration crimped wire mesh, Steel Screen Mesh for Crusher Machine, Lock crimped screen mesh
Easy installation and maintenance
Quarry Rock Steel Woven Steel Screen Mesh, vibration crimped wire mesh, Steel Screen Mesh for Crusher Machine, Lock crimped screen mesh
Large stocks for urgent orders
Quarry Rock Steel Woven Steel Screen Mesh, vibration crimped wire mesh, Steel Screen Mesh for Crusher Machine, Lock crimped screen mesh
Large output and timely delivery
